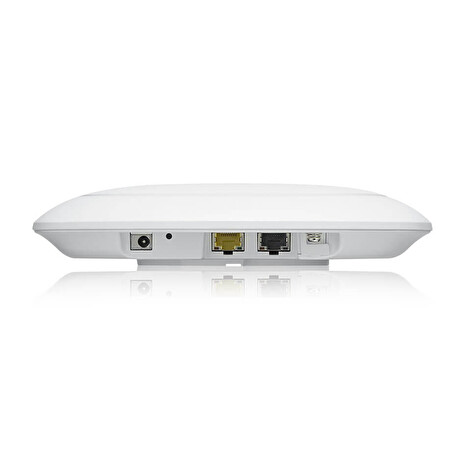

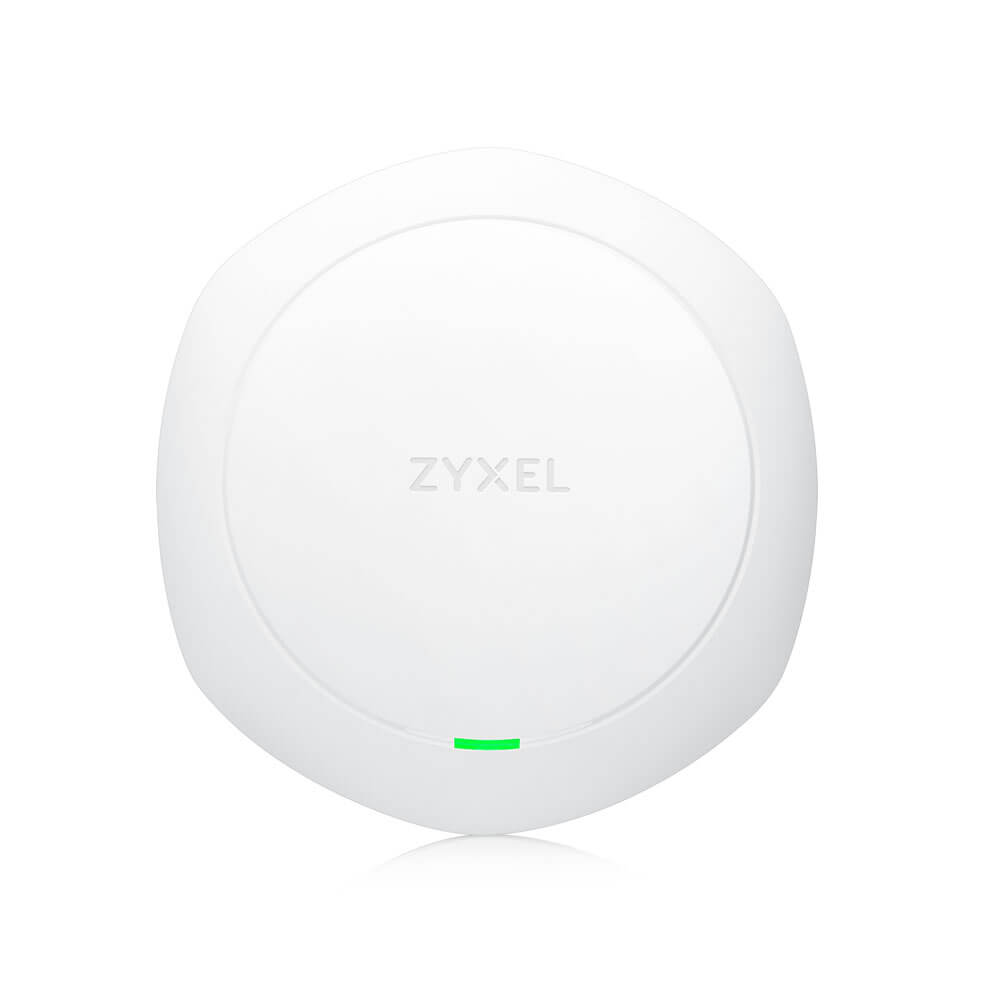

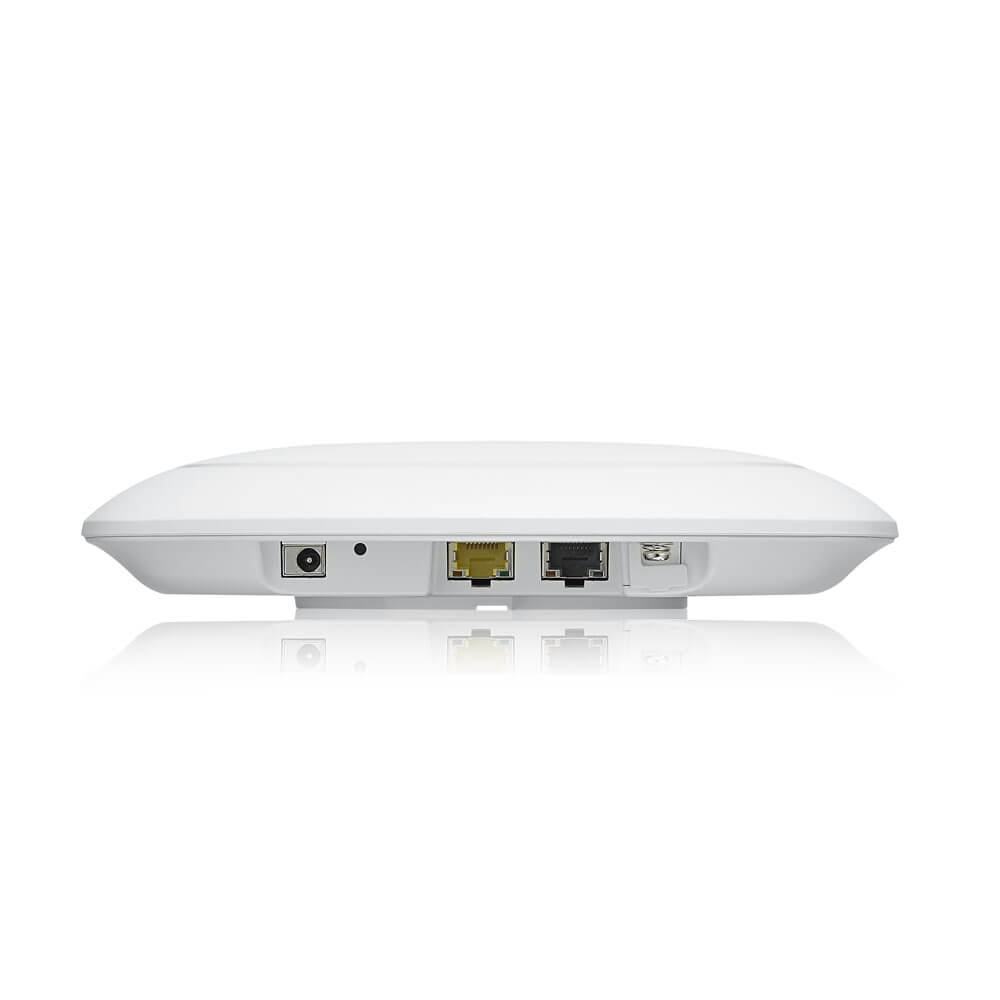

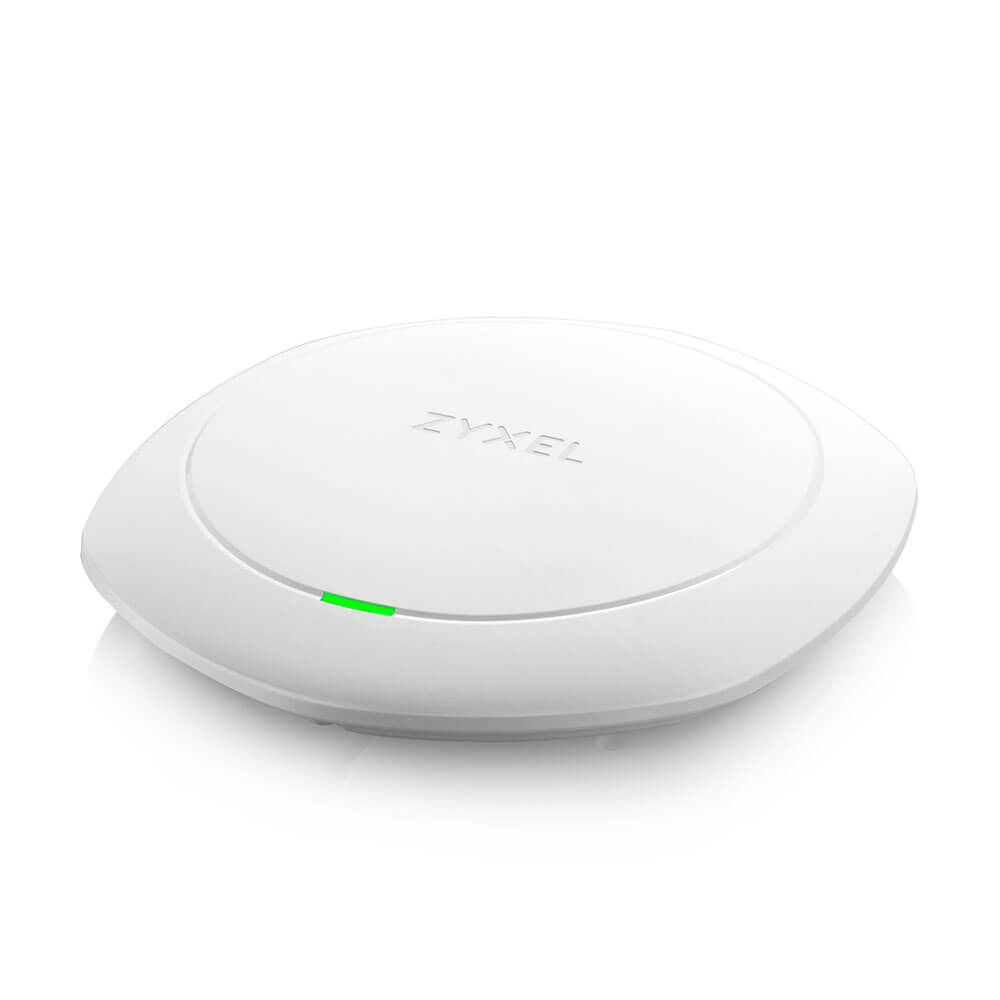

NWA1123-AC HD
Samostatný přístupový bod standardu 802.11ac s technologií Wave2 a
duálním rádiem
Odkaz na web výrobce:
https://www.zyxel.com/cz/cs/products_services/802-11ac-Wave2-Dual-Radio-Standalone-Access-Point-NWA1123-AC-HD/overview
Popis
Zyxel NWA1123-AC HD je samostatný přístupový bod s duálním rádiem a
technologiemi Wave 2 a 3x3 MU-MIMO, který dosahuje kombinované
rychlosti přenosu dat až 1,6 Gbps. Díky špičkovému hardwarovému
vybavení, technologii beamforming nové generace a pokročilému
potlačení šumu zajišťuje přístupový bod NWA1123-AC HD větší pokrytí
a vyšší rychlost připojení pro každého klienta. Vysoký výkon
přístupového bodu znamená rychlé a spolehlivé bezdrátové připojení
a současně cenově dostupné WiFi řešení v prostředí s velkou
hustotou provozu
MU-MIMO - nová definice Wi-Fi
Wave 2 jako druhá generace standardu 802.11ac přináší novou
technologii Multi-User MIMO (MU-MIMO). Jedná se o důležitý vývoj v
oblasti WiFi, který přístupovému bodu umožňuje komunikovat s více
klienty současně a nabízí v případě modelů 3x3 třikrát vyšší výkon.
RF Specifications
802.11n/ac premium features
802.11n: 2x2 MIMO with two spatial stream (SU-MIMO)
802.11ac: 3x3 MIMO with three spatial stream (SU-, or MU-MIMO)
802.11ac beamforming (transmit beamforming)
Maximal ratio combining (MRC)
Low End Sensitivity Improvements (LESI)
Time Domain Channel Smoothing
20-, 40- and 80-MHz channels
PHY data rates total up to 300 Mbps (11n) + 1300 Mbps (11ac)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
Cyclic Delay diversity (CSD) support
Maximum Likelihood Demodulation (MLD) support
Low Density Parity Check (LDPC) support
Typical transmit output power (dBm)
US (FCC) 2.4 GHz: 25 dBm
US (FCC) 5 G GHz: 28 dBm
EU (ETSI) 2.4 GHz: 20 dBm
EU (ETSI) 5 G GHz: 26 dBm
Antenna gain
2.4 GHz: 3 dBi; 3x2 MIMO
5 GHz: 3 dBi 3x3 MIMO
Support data rate
802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n: up to 300 Mbps in MCS15 (40MHz; 2 Spatial Streams;
GI=400ns)
802.11ac:up to 1300 Mbps in MCS9 (80MHz; 3 Spatial Streams;
GI=400ns)
Receive sensitivity
Min. Rx sensitivity up to -103 dBm

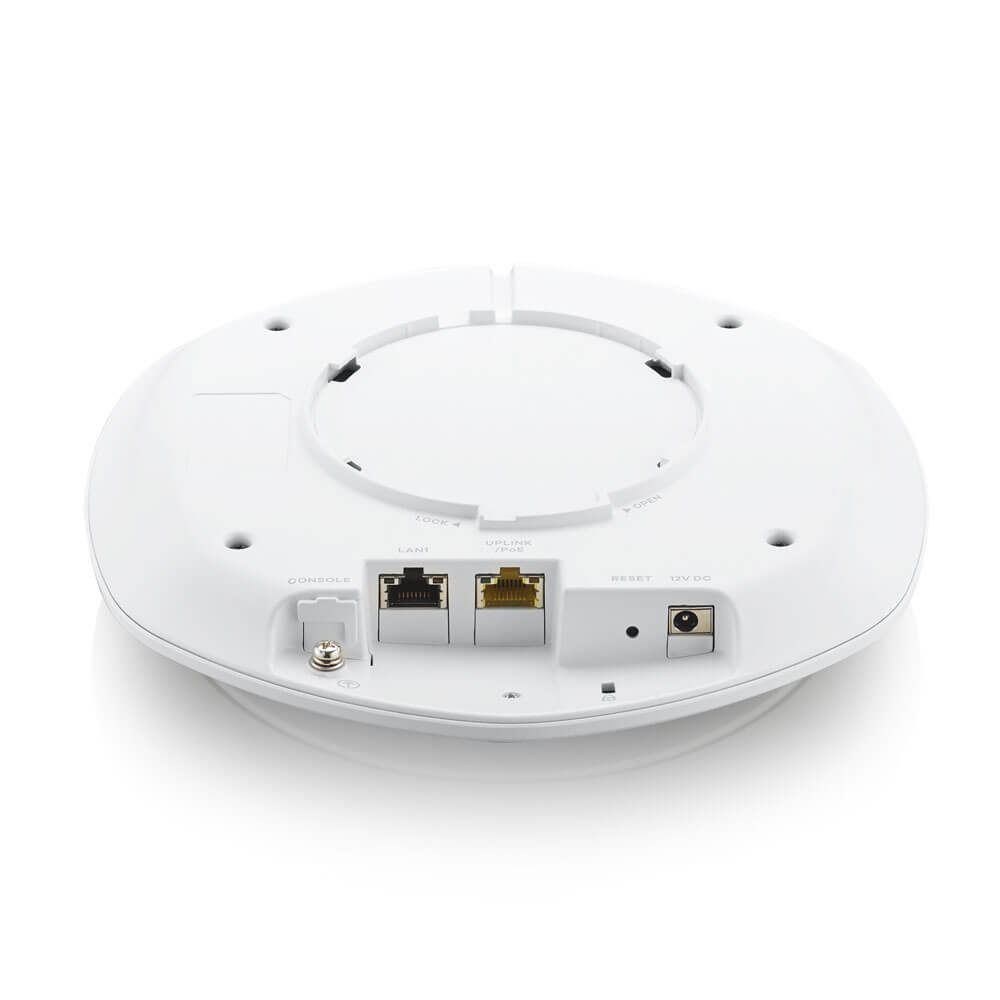

Interfaces
Number of 10/100/1000M LAN
2 x switch ports
Console port
4-Pin serial
Input power requirements
Direct DC power or Power over Ethernet (PoE)*2
PoE
802.3at (full mode)
802.3af (Restrict 2.4G & 5G radio to one transmit stream only.)
PoE power draw
15.5 W (802.3at PoE)
WLAN
WLAN maximum throughput
Up to 1600 Mbps
Fast roaming
Pre-authentication and PMK caching
Wireless Security
WPA/WPA2-PSK
WPA/WPA2-Enterprise
WLAN access control list
EAP type
IEEE 802.1X
MAC filtering
Layer-2 isolation
RADIUS authentication
Number of SSID
16
QoS
WMM
WMM power save
U-APSD
DiffServ marking
Network
IPv6 support
Yes
VLANs
Yes
DHCP client
Yes
Management
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device factory reset
Device reboot
Device locating*
Web GUI access
Firmware upgrade
Password configuration
One-click quick association with Zyxel AP Configurator (ZAC)
Smart Connect
Neighbor device discovery
One-click remote management access to the neighboring Zyxel devices
Zyxel AP Configurator
Batch AP configuration
Batch AP firmware upgrade
Batch AP profile backup
Zyxel Wireless Optimizer
Wi-Fi AP planning
Wi-Fi coverage detection
Wireless health management
Standalone AP mode
Yes
Managed AP mode
Yes
CLI
Yes
SNMP
v2c/v3
Standard Compliance
Ethernet
IEEE 802.3
IEEE 802.3u
IEEE 802.11ab
IEEE 802.3au
IEEE 802.3az
IEEE 802.3af/at
PoE
IEEE 802.3af/at
WLAN
802.11b: DBPSK, DQPSK, CCK
802.11g: BPSK, QPSK, 16-QAM, 64-QAM
802.11a: BPSK, QPSK, 16-QAM, 64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 64-QAM, 256-QAM
Certifications
Radio
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
EN 60601-1-2
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55032
EN55024
EN61000-3-2/-3
BSMI CNS13438
Safety
EN 60950-1
IEC 60950-1
BSMI CNS14336-1
Physical Specifications and others
Item
Dimensions (WxDxH)(mm/in.): 211 x 223 x 39 / 8.31 x 8.78 x 1.54
Weight (kg/lb.): 750/1.653
Packing
Dimensions (WxDxH)(mm/in.): 266 x 268 x 56/10.47 x 10.55 x 2.21
Weight (kg/lb.): 1090/2.403
Included accessories
Wall/ceiling mount plate
12V 2A adapter
Plenum rating
Yes
Kensington lock support
Yes
Power supply
Input: AC 100-240V, 50~60Hz
Output: DC +12V 2A (Sold separately)
MTBF (hr)
1,306,790
Environmental Specifications
Operating
Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: 10% to 90% (Non-condensing)
Storage
Temperature: -40°C to 70°C / -40°F to 158°F
Humidity
10% to 90%
