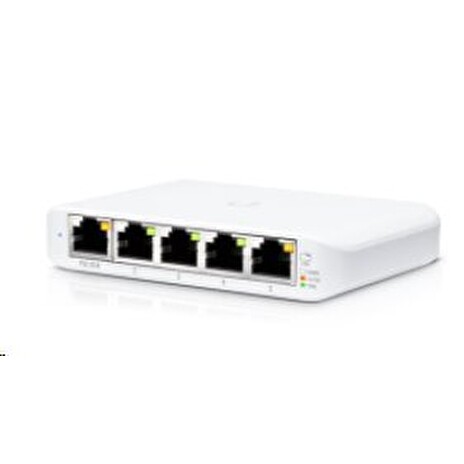

Compact 5-Port Gigabit Switch
- Dimensions 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83")
- Weight 150 g (5.29 oz)
- Interfaces Networking PoE In Management (5) 10/100/1000 RJ45
Ports 802.3af/at PoE (Pins 1, 2+; 3, 6-) Ethernet In-Band
Total
- Non-Blocking Throughput 5 Gbps
- Switching Capacity 10 Gbps
- Forwarding Rate 7.44 Mpps
- Power Method USB Type C, 5V 802.3af/at PoE (44 - 57VDC, 0.05 -
0.04A)
- Power Supply 5V, 1A Power Adapter*
- Voltage Range USB Type C 802.3af/at PoE 4.7 - 5.3V 44 -
57VDC
- Max Power Consumption 2.5W
- LEDs System RJ45 Data Ports Status Speed/Link/Activity
- ESD/EMP Protection Air: ±16 kV, Contact: ±12 kV
- Shock and Vibration ETSI300-019-1.4
- Standard Operating Temperature -5 to 45° C (23 to 113° F)
- Operating Humidity 10 - 90% Noncondensing
- Certifications CE, FCC, IC
