| Barva | Modrá |
|---|---|
| Délka (m) | 1 |
| LC (M) | 4 |
| Přesná délka (m) | 1 |
| Typ | Kabely |
Počítače a kancelář Síťové prvky Kabeláž a příslušenství Ubiquiti Optický Patch UniFi ODN-1, 2 vlákna MultiMode, UPC, LC-LC, 1m

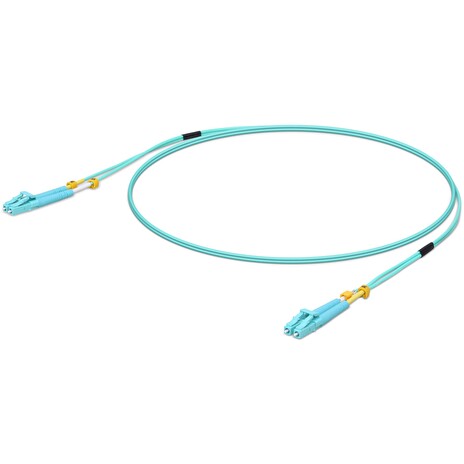

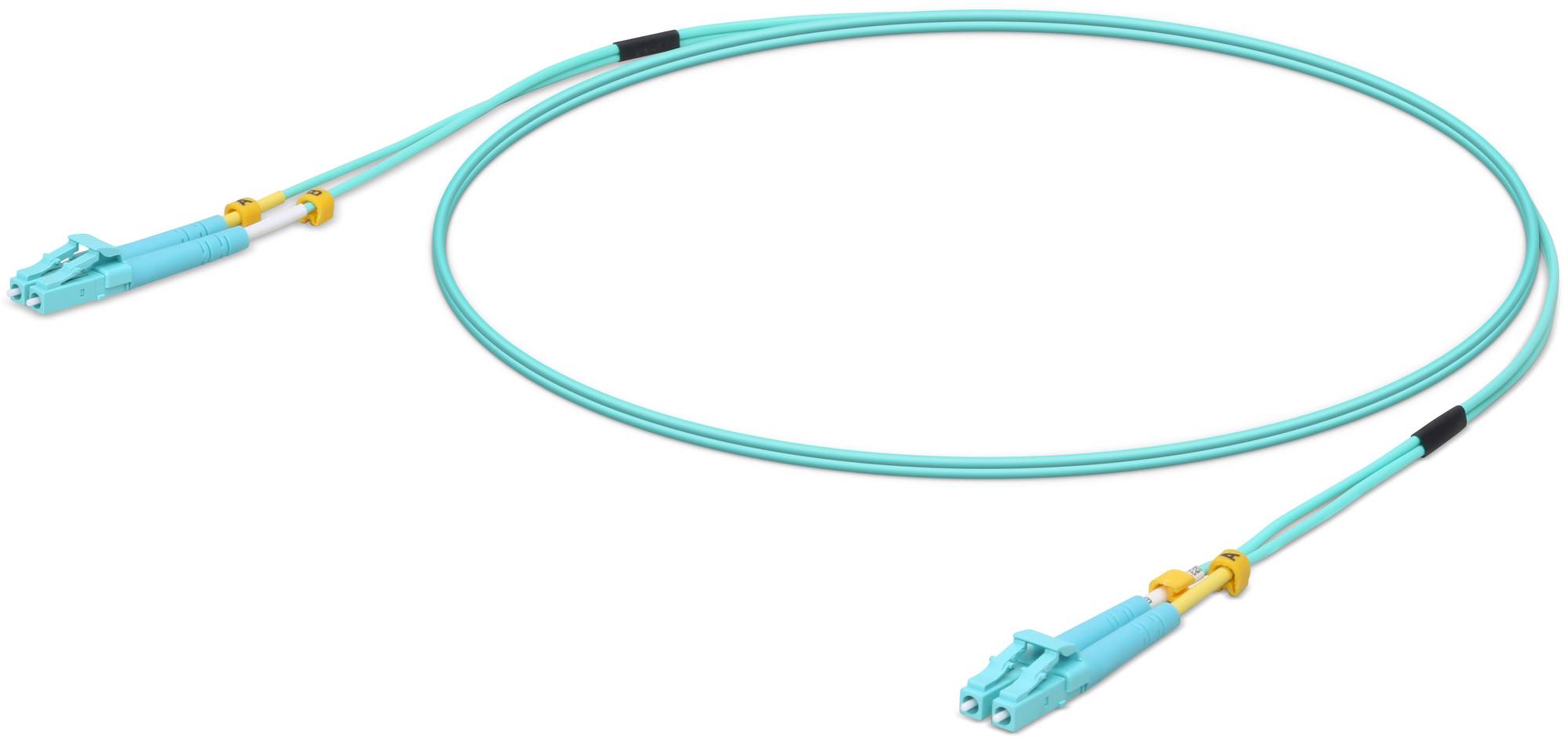

Ubiquiti Optický Patch UniFi ODN-1, 2 vlákna MultiMode, UPC, LC-LC, 1m
Scale your fiber network using our flexible and lightweight fiber patch cables. The 10G multi-mode fiber patch cables are ideal for indoor telecommunications and data networks using our routing and switching products, such as the EdgeRouter, EdgeSwitch, and UniFi Switch.
Multi mode fiber.
Connector
• LC-LC
Fiber Mode
• 50 / 125 um
Fiber Type
• Duplex
Cable…
Kategorie: Kabeláž a příslušenství
Kód: 3472666PN: UOC-1Výrobce: UbiquitiZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce
Popis produktu
Scale your fiber network using our flexible and lightweight fiber
patch cables. The 10G multi-mode fiber patch cables are ideal for
indoor telecommunications and data networks using our routing and
switching products, such as the EdgeRouter, EdgeSwitch, and UniFi
Switch.
Multi mode fiber.
Connector
• LC-LC
Fiber Mode
• 50 / 125 um
Fiber Type
• Duplex
Cable Length
• 1 m
Cable Jacket
• PVC
Cable Standard
• OM3
Insertion Loss
• 0.3 dB
Polish
• UPC to UPC
Jacket OD
• 2.0 mm
Wavelength
• 850 / 1310 nm
Jacket Color
• Aqua
Repeatability
• 0.1 dB (less or equal)
Durability
• 0.2 dB (less or equal, 1000 Times Mating)
Return Loss
• 50 dB (less or equal)
Operating Temperature
• -40 to 75 °C
Multi mode fiber.
Connector
• LC-LC
Fiber Mode
• 50 / 125 um
Fiber Type
• Duplex
Cable Length
• 1 m
Cable Jacket
• PVC
Cable Standard
• OM3
Insertion Loss
• 0.3 dB
Polish
• UPC to UPC
Jacket OD
• 2.0 mm
Wavelength
• 850 / 1310 nm
Jacket Color
• Aqua
Repeatability
• 0.1 dB (less or equal)
Durability
• 0.2 dB (less or equal, 1000 Times Mating)
Return Loss
• 50 dB (less or equal)
Operating Temperature
• -40 to 75 °C
