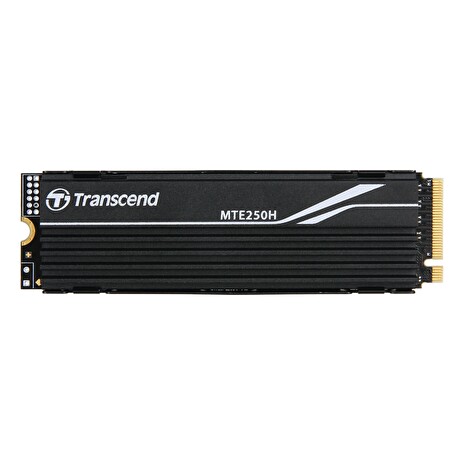

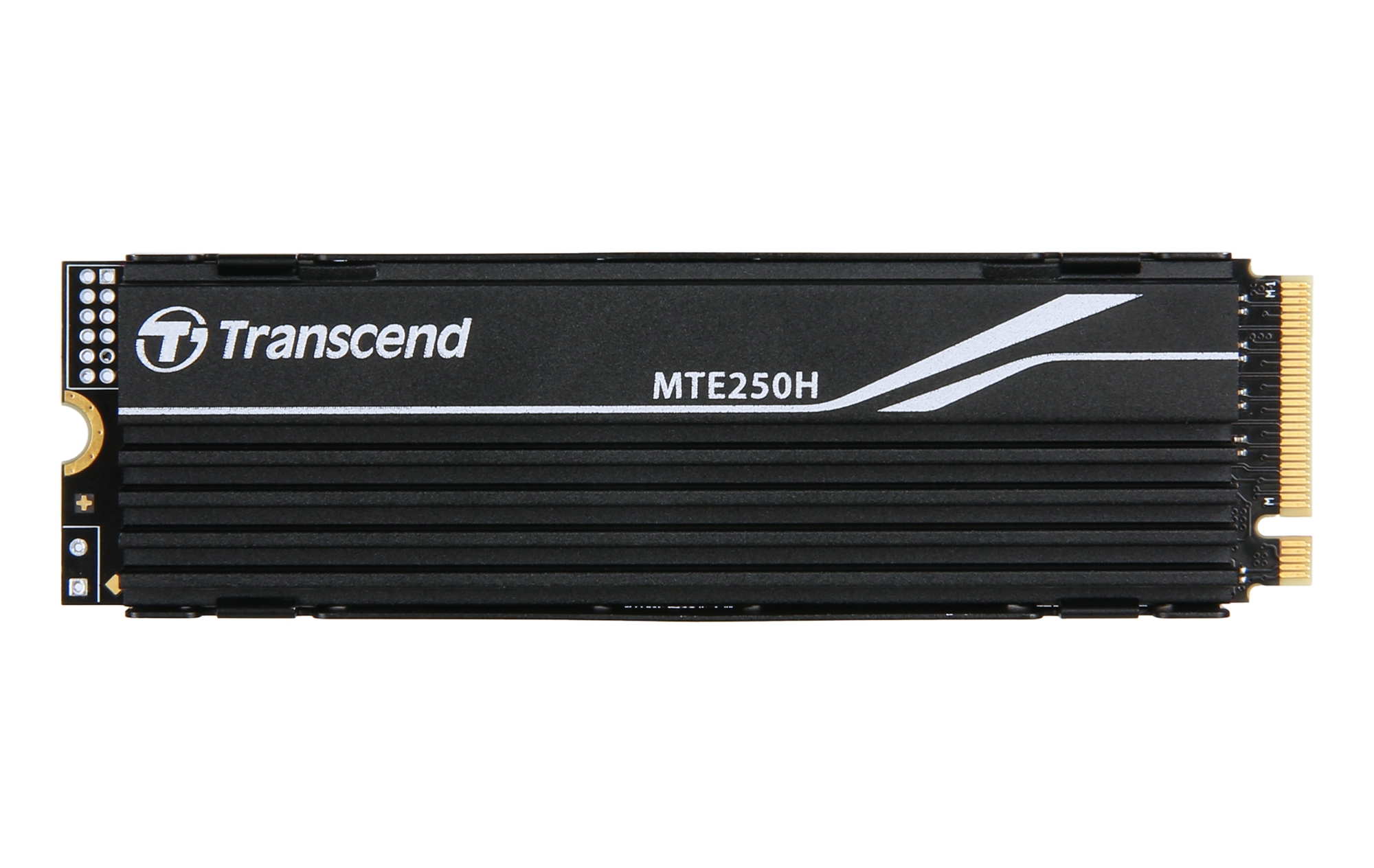

TRANSCEND MTE250H 2TB SSD disk M.2 2280, PCIe Gen4 x4 NVMe 1.4 (3D
TLC), aluminium heatsink, 7100MB/s R, 6500MB/s W
Exhibiting more than just ultra speeds, the MTE250H PCIe SSD
delivers unbridled performance, low latency, and high stability for
passionate gamers. Built with a PCI Express® Gen 4 x4 interface, 3D
NAND flash, an 8-channel controller, a DRAM cache, and an aluminum
heatsink, the MTE250H PCIe SSD is ready to put excellence in your
hand.
Full speed ahead
Transcend's MTE250H PCIe SSD follows the latest NVMe 1.4 standard,
supporting the PCIe™ Gen4 x4 interface, allowing four lanes to
transmit and receive data simultaneously. Its 8-channel controller
delivers sequential R/W up to 7,200/6,500 MB/s, and up to 530K
IOPS, providing captivating performance and response times for your
PC systems and game consoles.
Note: Performance is based on CrystalDiskMark v6.0.2.
Level up with next-gen PCIe 4.0
Transcend's MTE250H features the new PCIe 4.0 specification,
supporting a bandwidth of 16 GT/s per lane as opposed to 8 GT/s per
lane for PCIe 3.0. Backwards compatible with PCIe 3.0, PCIe 4.0
unleashes higher transfer speeds and guarantees lower system
latency. For advanced gamers, this means a more seamless and
immersive experience.
Be the coolest
Transcend's MTE250H features a high efficiency aluminum heatsink to
improve heat dissipation of the high performance, compact-sized
SSD. The high thermal conductivity of aluminum and increased
surface area reduce drive temperatures by 15%, allowing the SSD to
maintain lower operating temperatures, even when you're maxing out
performance on your desktop PC or game console.
Small in size, large in capacity
Featuring the M.2 2280 form factor, Transcend's MTE250H is
available in capacities of up to 2TB, giving users plenty of space
to store multiple blockbuster games.
Better endurance, higher reliability
Transcend's PCIe SSD MTE250H is engineered with LDPC (Low-Density
Parity Check) coding--a powerful ECC algorithm--to keep data
secure. With its built-in dynamic thermal throttling mechanism,
operating temperature is precisely monitored and controlled for the
MTE250H, delivering superior endurance and stability for high-end
applications.
SSD Scope software
Transcend's SSD Scope is an advanced, user-friendly software that
makes it easy to monitor the condition and optimize the performance
of your Transcend SSD, ensuring that it remains healthy and
continues to run fast and error-free.
Guaranteed quality
The PCIe SSD MTE250H is covered by a five-year limited warranty. To
ensure the utmost level of quality, Transcend SSDs undergo rigorous
testing at all stages of production, including tests for vibration,
temperature and humidity, speed, and functionality.
Specifications:
Dimensions: Double-sided 80.0 mm x 23.1 mm x 9.2 mm
Weight: 34 g
Type: M.2 2280
Bus Interface: NVMe PCIe Gen4 x4
Flash Type: 3D NAND flash
Capacity: 2 TB
Operating Temperature: 0°C ~ 70°C
Operating Voltage: 3.3V±5%
Sequential Read/Write (CrystalDiskMark): up to 7,100/6,500 MB/s
4K Random Read/Write (IOmeter): up to 530,000/420,000 IOPS
Terabytes Written (TBW): 2960 TBW
Mean Time Between Failures (MTBF): 3,000,000 hour(s)
Drive Writes Per Day (DWPD): 0.81 (5 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage
capacity.
The workload used to rate DWPD may be different from your actual
workload, which may vary due to host hardware, software, usage, and
storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest
capacity.
Some motherboards only provide PCIe x2 connections for the M.2
slot, creating a bottleneck on even the fastest drives.
Certificate : CE/FCC/BSMI/KC/RCM/UKCA
Warranty: Five-year Limited Warranty
Warranty does not apply when SSD Scope's lifetime indicator
displays 0% within the warranty coverage.
Removal of heatsink may cause damage to the SSD not covered under
Transcend's warranty policy.
Operating System:
- Microsoft Windows 7 or later
- Linux Kernel 2.6.31 or later
Note
Systems for use with the PCIe M.2 SSD must have an M.2 connector
with only an M key. B-key connectors are not compatible. Improper
insertion may lead to damage. Please click here for more
information.
Technology
S.M.A.R.T.
Advanced Garbage Collection
RAID Engine
LDPC Coding
DRAM Cache
