Transcend MTE250H 1TB SSD disk M.2 2280, PCIe Gen4 x4 NVMe 1.4 (3D TLC), aluminium heatsink, 7200MB/s R, 6200MB/s W

TRANSCEND MTE250H 1TB SSD disk M.2 2280, PCIe Gen4 x4 NVMe 1.4 (3D TLC), aluminium heatsink, 7200MB/s R, 6200MB/s W

Exhibiting more than just ultra speeds, the MTE250H PCIe SSD delivers unbridled performance, low latency, and high stability for passionate gamers. Built with a PCI Express® Gen 4 x4 interface, 3D NAND flash, an 8-channel controller, a DRAM cache, and an aluminum heatsink, the MTE250H PCIe SSD is ready to put excellence in your hand.

Full speed ahead
Transcend's MTE250H PCIe SSD follows the latest NVMe 1.4 standard, supporting the PCIe™ Gen4 x4 interface, allowing four lanes to transmit and receive data simultaneously. Its 8-channel controller delivers sequential R/W up to 7,200/6,500 MB/s, and up to 530K IOPS, providing captivating performance and response times for your PC systems and game consoles.

Note: Performance is based on CrystalDiskMark v6.0.2.

Level up with next-gen PCIe 4.0
Transcend's MTE250H features the new PCIe 4.0 specification, supporting a bandwidth of 16 GT/s per lane as opposed to 8 GT/s per lane for PCIe 3.0. Backwards compatible with PCIe 3.0, PCIe 4.0 unleashes higher transfer speeds and guarantees lower system latency. For advanced gamers, this means a more seamless and immersive experience.

Be the coolest

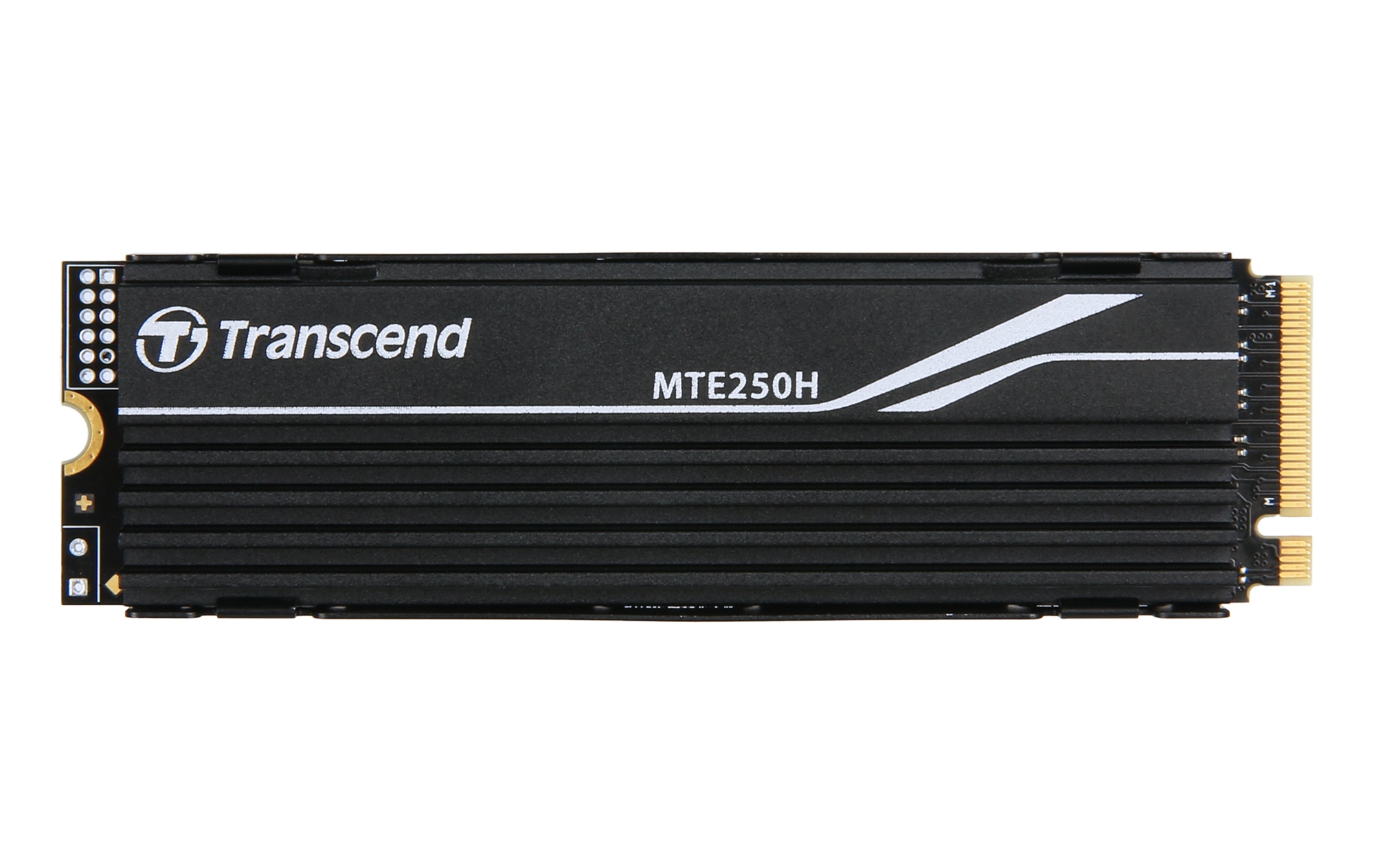

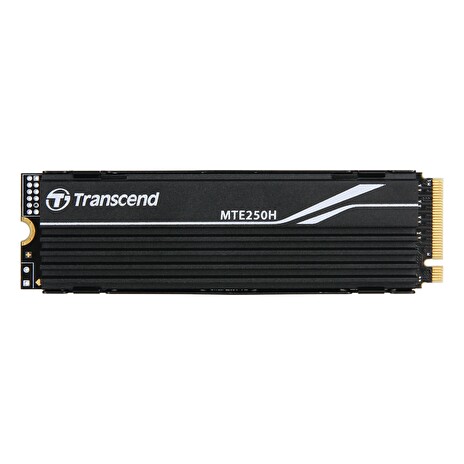

Transcend's MTE250H features a high efficiency aluminum heatsink to improve heat dissipation of the high performance, compact-sized SSD. The high thermal conductivity of aluminum and increased surface area reduce drive temperatures by 15%, allowing the SSD to maintain lower operating temperatures, even when you're maxing out performance on your desktop PC or game console.

Small in size, large in capacity
Featuring the M.2 2280 form factor, Transcend's MTE250H is available in capacities of up to 2TB, giving users plenty of space to store multiple blockbuster games.

Better endurance, higher reliability
Transcend's PCIe SSD MTE250H is engineered with LDPC (Low-Density Parity Check) coding--a powerful ECC algorithm--to keep data secure. With its built-in dynamic thermal throttling mechanism, operating temperature is precisely monitored and controlled for the MTE250H, delivering superior endurance and stability for high-end applications.

SSD Scope software
Transcend's SSD Scope is an advanced, user-friendly software that makes it easy to monitor the condition and optimize the performance of your Transcend SSD, ensuring that it remains healthy and continues to run fast and error-free.

Guaranteed quality
The PCIe SSD MTE250H is covered by a five-year limited warranty. To ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality.

Specifications:
Dimensions: Double-sided 80.0 mm x 23.1 mm x 9.2 mm
Weight: 34 g
Type: M.2 2280
Bus Interface: NVMe PCIe Gen4 x4
Flash Type: 3D NAND flash
Capacity: 1 TB
Operating Temperature: 0°C ~ 70°C
Operating Voltage: 3.3V±5%
Sequential Read/Write (CrystalDiskMark): up to 7,200/6,200 MB/s
4K Random Read/Write (IOmeter): up to 530,000/420,000 IOPS
Terabytes Written (TBW): 1480 TBW
Mean Time Between Failures (MTBF): 3,000,000 hour(s)
Drive Writes Per Day (DWPD): 0.81 (5 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.

Certificate : CE/FCC/BSMI/KC/RCM/UKCA
Warranty: Five-year Limited Warranty

Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.
Removal of heatsink may cause damage to the SSD not covered under Transcend's warranty policy.

Operating System:
- Microsoft Windows 7 or later
- Linux Kernel 2.6.31 or later

Note
Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage. Please click here for more information.

Technology
S.M.A.R.T.
Advanced Garbage Collection
RAID Engine
LDPC Coding
DRAM Cache
