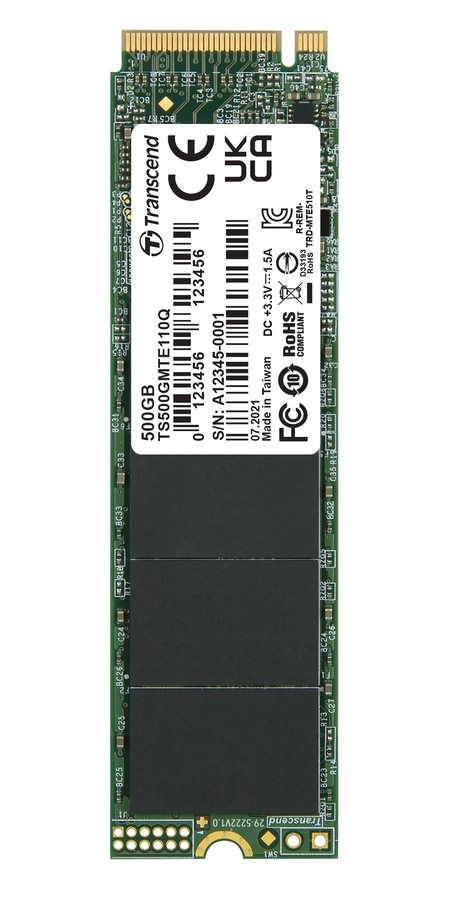

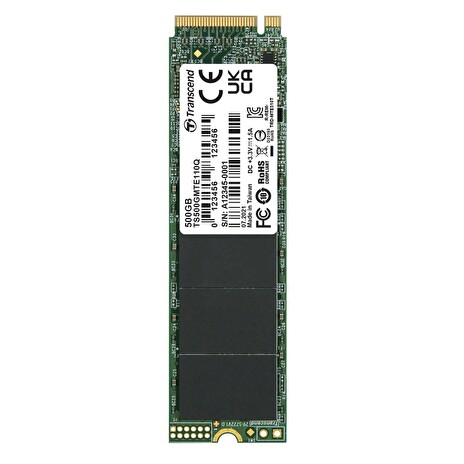

TRANSCEND MTE110Q 500GB SSD disk M.2 2280, PCIe Gen3 x4 NVMe 1.3
(3D QLC), 1900MB/s R, 900MB/s W
Transcend's PCIe® SSD 110Q utilizes top-notch technology QLC 3D
NAND to enhance storage density that supports read/write intensive
workloads. Implemented with PCI Express® Gen3 x4 high-speed
interface, the read speed is up to 1900 MB/s while write speed is
up to 900 MB/s. To upgrade your computing devices, SSD 110Q is the
most economical solution for all!
Best performance in the extreme
Transcend's PCIe SSD 110Q follows NVMe 1.3 and utilizes the PCIe
Gen3 x4 interface, meaning four lanes are used for transmitting and
receiving data simultaneously, resulting in compelling performance
of up to 1900MB/s read and 900MB/s write.
Note: Performance is based on CrystalDiskMark v5.0.2.
Less is more
Leveraging QLC 3D NAND technology, PCIe SSD 110Q stacks
4-bit-per-cell vertically to enhance the storage density. QLC NAND
supports read/write intensive applications, and leads SSD 110Q to
become one of the flash memories with the highest density in the
market. More than that, 500GB is available. Users can store as much
data as they want!
Understanding the NVMe PCIe interface
NVMe® (or NVM Express®) is a host controller interface standard
designed to address the needs of enterprise and client applications
that utilize PCIe®(PCI Express®) solid-state storage. NVMe calls
for better performance vectors than AHCI (Advanced Host Controller
Interface), including scalable bandwidth, increased IOPS, and low
latency.
Low power, high efficiency
PCIe SSD 110Q not only optimizes the transfer speeds and storage
density, its low-power consumption also makes the device even more
lasting and efficient. The most economical solution is up to you to
choose.
Transcend SSD Scope software
To keep your Transcend SSD running fast and error-free, Transcend's
SSD Scope software application is available for download free of
charge. Monitor your SSD's health status with S.M.A.R.T.
technology, enable the TRIM command for optimum write speeds, keep
your SSD's firmware up-to-date, and migrate data from your original
drive to a new SSD with just a few clicks.
Guaranteed quality
To ensure the utmost level of quality, Transcend SSDs undergo
rigorous testing at all stages of production, including tests for
vibration, temperature and humidity, speed, and functionality.
Specifications
Dimensions: Double-sided 80 mm x 22 mm x 3.58 mm
Weight: 8 g
Type: M.2 2280
Bus Interface: NVMe PCIe Gen3 x4
Flash Type: QLC NAND flash
Capacity: 500 GB
Operating Temperature: 0°C ~ 70°C
Operating Voltage: 3.3V±5%
Performance:
Sequential Read/Write (CrystalDiskMark): up to 1,900/900 MB/s
4K Random Read/Write (IOmeter): up to 90,000/200,000 IOPS
Terabytes Written (TBW): 150 TBW
Mean Time Between Failures (MTBF): 2,000,000 hour(s)
Drive Writes Per Day (DWPD): 0.27 (3 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage
capacity.
The workload used to rate DWPD may be different from your actual
workload, which may vary due to host hardware, software, usage, and
storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest
capacity.
Some motherboards only provide PCIe x2 connections for the M.2
slot, creating a bottleneck on even the fastest drives.
Certificate : CE/FCC/BSMI/KC/RCM/UKCA
Warranty: Three-year Limited Warranty
Warranty does not apply when SSD Scope's lifetime indicator
displays 0% within the warranty coverage.
Operating System:
Microsoft Windows 11
Microsoft Windows 7 (additional driver required)
Microsoft Windows 8 (additional driver required)
Microsoft Windows 10
Linux Kernel 2.6.31 or later
Note
Systems for use with the PCIe M.2 SSD must have an M.2 connector
with only an M key. B-key connectors are not compatible. Improper
insertion may lead to damage. Please click here for more
information.
Technology
S.M.A.R.T.
Advanced Garbage Collection
LDPC Coding
