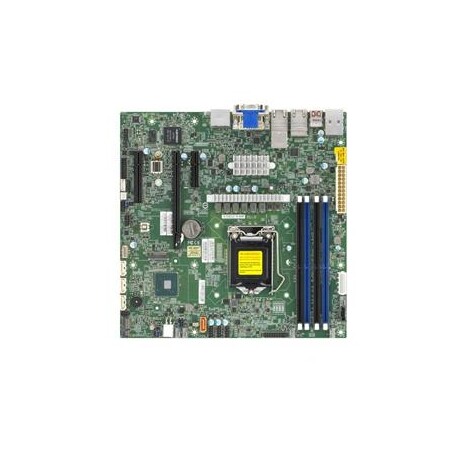

SUPERMICRO MB LGA1200 1U(Xeon W-12xx, core), W480,4xDDR4,4xSATA3,M.2,3xPCIe3.0 (16/4/4),2xDP,DVI,Audio,2x10Gb+2x1Gb,IPMI
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Supermicro MB LGA1200 1U(Xeon W-12xx, core), W480,4xDDR4,4xSATA3,M.2,3xPCIe3.0 (16/4/4),2xDP,DVI,Audio,2x10Gb+2x1Gb,IPMI

  Key Features     10th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP Intel® W480 Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 (in x8 slot), 1…
Kategorie: Základní desky
Kód: 2872923PN: MBD-X12SCZ-TLN4F-OVýrobce: SupermicroZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

Key Features


  1.
  2. 10th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
  3. Intel® W480
  4. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
  5. 1 PCI-E 3.0 x16,
    1 PCI-E 3.0 x4 (in x8 slot),
    1 PCI-E 3.0 x4
    1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
    1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230
  6. 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
  7. Intel® W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  8. Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    Single LAN with Intel® PHY I219LM LAN controller
    Single LAN with Intel® Ethernet Controller I210-AT



Specifications

Product SKUs

MBD-X12SCZ-TLN4F
  • X12SCZ-TLN4F

Physical Stats

Form Factor
  • microATX
Dimensions
  • 9.6"" x 9.6"" (24.38cm x 24.38cm)

Processor/Cache

CPU
  • 10th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
  • A graphic integrated CPU is required to have onboard video from the DVI and DP ports
Cores / Cache
  • Up to 10 cores
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory

Memory Capacity
  • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
Memory Type
  • 2933/2666/2400/2133MHz
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
  • Intel® W480
SATA
  • Intel® W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    Single LAN with Intel® PHY I219LM LAN controller
    Single LAN with Intel® Ethernet Controller I210-AT
Audio
  • ALC 888S HD Audio
Graphics
  • Aspeed AST2500 BMC, Intel® HD Graphics

Input / Output

SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10 Gigabit Ethernet LAN ports
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 2.0 ports (6 via headers)
  • 6 USB 3.2 Gen2 ports (4 Rear Type A, 2 via headers)
Video Output
  • 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • TPM Header & Chip both
Expansion Slots

PCI-E
  • 1 PCI-E 3.0 x16,
  • 1 PCI-E 3.0 x4 (in x8 slot),
  • 1 PCI-E 3.0 x4
M.2
  • 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
  • 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230

System BIOS

BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.1
  • PCI FW 3.0
  • UEFI 2.6
  • RTC (Real Time Clock) Wakeup

Management

Software
  • AMT, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SUM, SuperDoctor® 5, vPro, Watchdog
System Mangement Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • +12V DC Power Input
  • ATX Power connector
  • ACPI Power Management

PC Health Monitoring

Voltage
  • +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 5 -fan status, Chassis intrusion header, CPU, Memory temperature, PCH temperature, VBAT
FAN
  • 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control
Temperature
  • Thermal Control for 5 Fan Connectors
LED
  • Power LED, BMC/IPMI Heartbeat LED, UID/Remote UID
Other Features
  • 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Dual Cooling Zones, M.2 NGFF connector, RoHS, UID

Operating Environment

Operating Temperature Range
  • 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SCZ-TLN4F 1 X12SCZ-TLN4F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00093-0N 1 Standard I/O Shield for X12SCZ with EMI Gasket

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SCZ-TLN4F 1 X12SCZ-TLN4F Motherboard
I/O Cables CBL-0044L 4 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00093-0N 1 Standard I/O Shield for X12SCZ with EMI Gasket

Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00094-0N -- 1U I/O Shield for X12SCZ with EMI Gasket in CSE-512/813
USB3.1 Cable CBL-CUSB-0835 -- Dual USB3.1 Type A Cable with Bracket
Serial Port Cable CBL-CUSB-0984 -- Dual Serial Port Breakout Cable 20cm
Serial Port Cable CBL-CDAT-0604 -- Dual Serial Port cable with bracket 40cm
