SUPERMICRO MB 2xSP3 (7002/7003),16x DDR4,10xSATA3, 4x NVMe, 1xM.2, 6xPCIe4.0 (3 x16, 3 x8), IPMI, 2x LAN

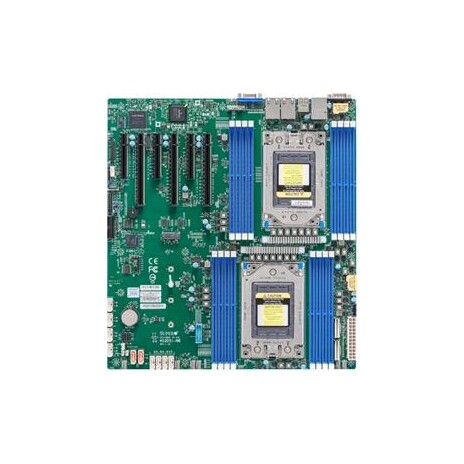

Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Supermicro MB 2xSP3 (7002/7003),16x DDR4,10xSATA3, 4x NVMe, 1xM.2, 6xPCIe4.0 (3 x16, 3 x8), IPMI, 2x LAN

Key Features 1.Dual AMD EPYC™ 7003/7002 Series Processors 2.4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs 3.Expansion slots:    3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots M.2 Interface: 1 PCI-E 4.0 x4  M.2 Form Factor: 2280, 22110   M.2 Key: M-key 4.10 SATA3, 2 SATADOM, 4 NVMe 5.Dual Gigabit LAN ports, 1 dedicated IPMI LAN Port 6.ASPEED…
Kategorie: Základní desky
Kód: 3473737PN: MBD-H12DSI-N6-OVýrobce: SupermicroZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

Key Features

1.Dual AMD EPYC™ 7003/7002 Series Processors

2.4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs

3.Expansion slots:    3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots
M.2 Interface: 1 PCI-E 4.0 x4  M.2 Form Factor: 2280, 22110   M.2 Key: M-key

4.10 SATA3, 2 SATADOM, 4 NVMe

5.Dual Gigabit LAN ports, 1 dedicated IPMI LAN Port

6.ASPEED AST2600 BMC graphics

7.2 USB 2.0 ports (rear), 4 USB 3.0 ports (2 rear, 2 headers)

8.8x 4-pin PWM Fans & Speed control



Specifications




Product SKUs

MBD-H12DSi-N6
  • H12DSi-N6

Physical Stats

Form Factor
  • EATX
Dimensions
  • 12" x 13.05" (30.5cm x 33.1cm)

Processor/Chipset

CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • Socket SP3
Cores
  • Up to 64 Cores
Chipset
  • System on Chip

System Memory

Memory Capacity
  • 16 DIMM slots
  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM
  • 8-channel memory bus
  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices

SATA
  • SATA3 (6 Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v. 2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
VGA
  • ASPEED AST2600 BMC

Input / Output

SATA
  • 10 SATA3 (6 Gbps) ports
LAN
  • 2x 1GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 ports (rear)
  • 4 USB 3.0 ports (2 rear, 2 headers)
VGA
  • 1 VGA port
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connectors
  • 4 PCI-E 4.0 NVMe x4 internal ports
  • TPM 2.0 header

Parametry

Integrovaný řadič SAS/SATANe
M.2 slot1
Maximální frekvence paměti [MHz]2666
PCI Express x162
PCI Express x83
Počet paměťových slotů16
Podpora ECCANO
Typ pamětiDDR4
Integrovaná grafická kartaANO
Čipová sadaSystem on Chip
Patice (CPU Socket)SP3 socket
Počet CPU socketůDual socket
Výrobce čipsetuAMD
FormátE-ATX
HerníNE
UrčeníServery
