M.2 slot | 2 |
---|---|
Maximální frekvence paměti [MHz] | 5100 |
Podpora ECC | ANO |
Typ paměti | DDR5 |
Čipová sada | AMD TRX40 |
Počet CPU socketů | Single socket |
Výrobce čipsetu | AMD |
Formát | ATX |
Product
SKUs
|
|

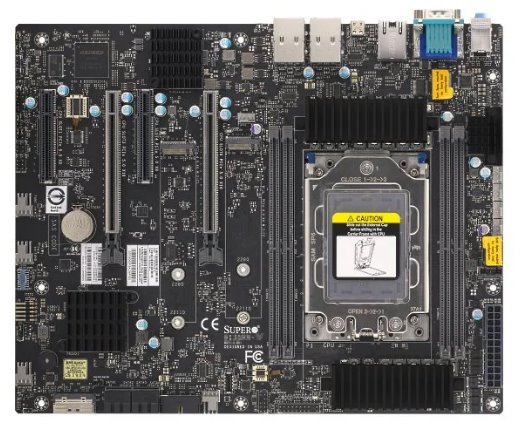

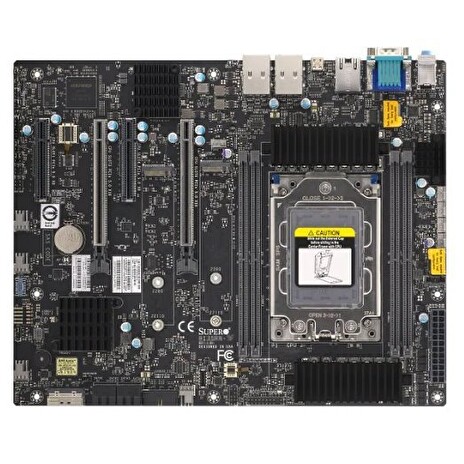

MBD-H13SRA-TF | |
Physical Stats | |
Form Factor | ATX |
Dimension | 12" x 9.6" (30.48cm x 24.384cm) |
Processor | |
CPU | AMD Ryzen™ Threadripper™ PRO 7000 WX-Series, AMD Ryzen™ Threadripper™ 7000 Series |
Single Socket LGA-4844 (Socket sTR5) supported, CPU TDP supports Up to 350W TDP | |
Core | Up to 96 cores, 192 threads |
System Memory | |
Memory Capacity | 4 DIMM slots |
Up to 4TB ECC Registered RDIMM/3DS RDIMM, DDR5-5200MHz | |
Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors | |
Memory Type | 5200 MT/s ECC DDR5 RDIMM/3DS RDIMM |
DIMM Sizes | RDIMM/3DS RDIMM: 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB, 512GB, 1024GB |
Memory Voltage | 1.1V |
On-Board Devices | |
Chipset | TRX50 |
SATA | 4 SATA3 ports; RAID 0,1,10 |
Audio | ALC 888S HD Audio 5.1 Channel |
Network Controllers | Single LAN with ASPEED AST2600, Dedicated LAN for IPMI |
Dual LAN with 10Gb Broadcom BCM57416 | |
Input / Output | |
USB | 2 USB 2 port(s) (2 via header) |
1 USB 3.2 Gen2x2 port(s) (1 rear type C) | |
2 USB 3.2 Gen1x1 port(s) (2 via header) | |
5 USB 3.2 Gen2x1 port(s) (4 rear type A; 1 header type C) | |
Video Output | 1 VGA port(s) |
Serial Port | 1 COM Port(s) (1 COM rear) |
TPM | 1 TPM Header |
Expansion
Slots
|
|
PCIe | 2 PCIe 5.0 x8, Open rear, |
2 PCIe 5.0 x16, metal armor protection, support 2 triple/dual/single-width GPU cards, | |
1 PCIe 4.0 x8, MCIO connector | |
M.2 | M.2 Interface: 2 PCIe 4.0 x4, RAID 0, 1 |
Form Factor: 2280/22110 | |
Key: M-Key | |
System BIOS | |
BIOS Type | AMI 32MB SPI Flash EEPROM |
BIOS Features | ACPI 6.5 |
SMBIOS 3.6 or later | |
UEFI 2.9 | |
RTC (Real Time Clock) Wakeup | |
Management | |
Software | Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0 |
PC Health Monitoring | |
Voltage | System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, Vmem, GPU temperature, NvMe temperature, Vcore, SAS HDD temperature |
FAN | 7x 4-pin fan headers (up to 7 fans) |
Fan speed control, CPU/System Overheat LED, Fan failed LED, UID/remote UID, HDD activity LED, LAN activity LED, CPU/Suspend-state indicator LED, 2 4-pin fan headers for CPU liquid cooling pump | |
Other Features | RoHS |
Chassis intrusion detection | |
Power supply monitoring | |
Operating Environment | |
Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
Operating Relative Humidity Range | 10% - 85% |
Non Operating Relative Humidity Range | 10% - 95%
|
