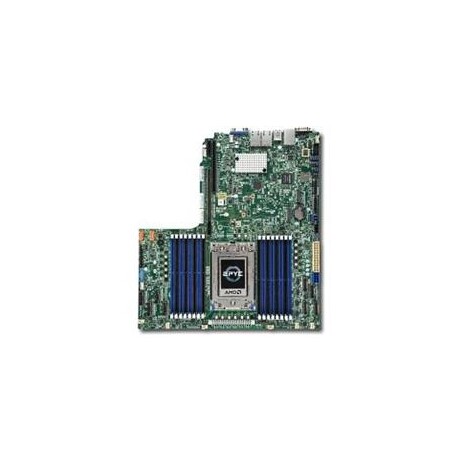

SUPERMICRO MB 1xSP3 (Epyc 7000series SoC), 8x DDR4,8xSATA3 + 8xSAS3, 1xM.2, PCIe 3.0 (3 x16, 3 x8), IPMI, 2x LAN, bulk
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Supermicro MB 1xSP3 (Epyc 7000series SoC), 8x DDR4,8xSATA3 + 8xSAS3, 1xM.2, PCIe 3.0 (3 x16, 3 x8), IPMI, 2x LAN, bulk

Key Features 1.Single AMD EPYC™ 7001/7002*  Series Processor (* AMD EPYC 7002 series drop-in support requires board revision 2.x) 2.2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required) 3.Expansion slots: 1 PCI-E 3.0 x32 Left Riser Slot      1 PCI-E 3.0 x16 Right Riser Slot M.2…
Kategorie: Základní desky
Kód: 3194783PN: MBD-H11SSW-NT-OVýrobce: SupermicroZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

Key Features

1.Single AMD EPYC™ 7001/7002* Series Processor (*AMD EPYC 7002 series drop-in support requires board revision 2.x)

2.2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)

3.Expansion slots: 1 PCI-E 3.0 x32 Left Riser Slot      1 PCI-E 3.0 x16 Right Riser Slot
M.2 Interface: 2 PCI-E 3.0 x2   M.2 Form Factor: 2280, 22110   M.2 Key: M-key

4.12 NVMe via SlimSAS, 4 NVMe or 16 SATA3 via SlimSAS, 2 M.2, 2 SATA3

5.2x 10GBase-T LAN Ports via Broadcom BCM57416, 1 Realtek RTL8211E PHY (dedicated IPMI)

6.ASPEED AST2500 BMC graphics

7.Up to 7 USB 3.0 ports (4 rear + 2 front + 1 Type A)

8.6 PWM 4-pin Fans with tachometer status monitoring

Specifications

Product SKUs

MBD-H11SSW-NT
  • H11SSW-NT
MBD-H11SSW-NT-B
  • H11SSW-NT (Bulk Pack)

Physical Stats

Form Factor
  • Proprietary
Dimensions
  • 13.4" x 12.29" (34cm x 31.2cm)

Processor/Chipset

CPU
  • Single AMD EPYC™ 7001/7002* series Processor (*Board revision 2.x required)
  • Socket SP3
Cores
  • Up to 32 Cores
  • Up to 64 Cores (Board revision 2.x required)
Chipset
  • System on Chip

System Memory

Memory Capacity
  • 16 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
  • 8-channel memory bus
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required)
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices

SATA
  • SATA3 (6 Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • 2x 10GBase-T LAN Ports via Broadcom BCM57416
  • 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA
  • ASPEED AST2500 BMC

Input / Output

SATA
  • 2 SATA3 (6 Gbps) ports
SATA/NVMe Hybrid
  • 16 SATA3 / 4 NVMe
NVMe
  • 12 NVMe
LAN
  • 2 RJ45 10GBase-T Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 7 USB 3.0 ports
    (4 rear + 2 front + 1 Type A)
VGA
  • 1 VGA port
Others
  • 2 COM ports (rear)
  • 2 SATA DOM power connectors
  • 1 TPM 2.0 header
  • 1 TPM 1.2 header

Expansion Slots

PCI-Express
  • 1 PCI-E 3.0 x32 Left Riser Slot
  • 1 PCI-E 3.0 x16 Right Riser Slot

M.2
  • Interface: 2 PCI-E 3.0 x2
  • Form factor: 2280, 22110
  • Key: M-key

Chassis ( Optimized for H11SSW-NT )

2U


Server(s) ( with H11SSW-NT )

Model(s)

System BIOS

BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1

Management

Software
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery

PC Health Monitoring

CPU
  • Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby
  • CPU switching voltage regulator
  • Supports system management utility
  • VBAT
FAN
  • Up to 6-fan status tachometer monitoring
  • Up to 6 4-pin fan headers
  • Dual Cooling Zone
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 6x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • UID

Operating Environment / Compliance

Environmental Specifications
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Parts List

Bulk Pack List

  Part Number Qty Description
H11SSW-NT MBD-H11SSW-NT-B 1 H11SSW-NT Motherboard
I/O Cable CBL-SAST-0813 1 SLIMLINE SAS x8 (LA) to SATA x4,INT, 16/26CM,32AWG

Retail Pack List

  Part Number Qty Description
H11SSW-NT MBD-H11SSW-NT-O 1 H11SSW-NT Motherboard
I/O Cable CBL-SAST-0813 1 SLIMLINE SAS x8 (LA) to SATA x4,INT, 16/26CM,32AWG

Optional Parts List

  Part Number Qty Description
I/O Cable CBL-SAST-0814 - SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT,13CM,34AWG
I/O Cable CBL-SAST-0815 - SLIMLINE SAS x8 to 2x Oculink x4,INT, 22CM,34AWG
I/O Cable CBL-SAST-0816 - SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT, 28CM,34AWG
TPM security module AOM-TPM-9655V - TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
AOM-TPM-9665V - TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;

Parametry

Integrovaný řadič SAS/SATANe
M.2 slot2
Maximální frekvence paměti [MHz]3200
PCI Express x163
PCI Express x83
Počet paměťových slotů8
Podpora ECCANO
Typ pamětiDDR4
Integrovaná grafická kartaANO
Čipová sadaSystem on Chip
Patice (CPU Socket)SP3 socket
Počet CPU socketůSingle socket
Výrobce čipsetuAMD
FormátATX
HerníNE
UrčeníServery
