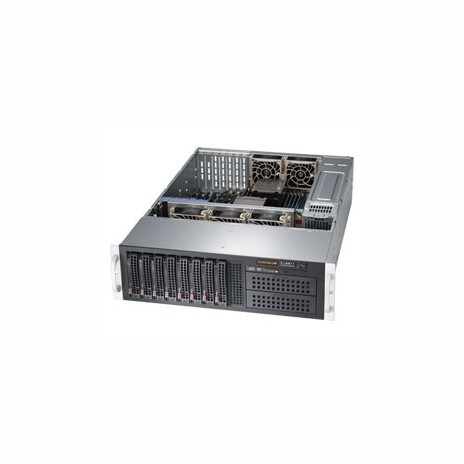

• Versatile Storage Chassis with High Efficiency Power 1. 920W
Redundant High-efficiency Platinum Level (94%+) Power Supply 2. 8x
3.5" Hot-swap SAS / SATA & 2x 5.25" Drive Bays 3. 1x Slim DVD-ROM
Drive 4. 7x Full-height, Full-length Expansion Slots 5. 100%
Cooling Redundancy 6. Adjustable Air Shroud Please Note: Full SES2
Support is only available on SAS motherboards Form Factor 3U
chassis support for max. motherboard size - 13.68" x 13" Processor
Support Supports dual, single Intel® / AMD processors Dimensions
Height 5.2" (132mm) Width 17.2" (437mm) Depth 25.5" (648mm) Gross
Weight 75 lbs (34.0kg) Available Colors Black Expansion Slots • 7x
full-height full-length expansion slots Drive Bays Hot-swap 8x 3.5"
SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only
recommended SAS / SATA Backplane 1x 2U SAS / SATA Backplane with
Enclosure Management Peripheral Drives DVD-ROM Slim DVD-ROM Drive
Front Panel Buttons • Power On/Off button • System Reset button
LEDs • Power LED • Hard drive activity LED • 2x Network activity
LEDs • System Overheat LED • Power fail LED System Cooling Fans •
3x 80mm Hot-swap PWM Fans • 2x 80mm Rear-exhaust PWM Fans System
Monitoring Chassis intrusion switch Operating Environment (System)
Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating
Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative
Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative
Humidity Range 5% - 95% (non-condensing) Power Supply with Power
Distributor 920W high-efficiency (94%+) AC-DC Redundant power
supplies with PMBus and I2C AC Input 100-240 V, 50-60 Hz, 11-4.5
Amp DC Output 4 Amp @ +5V standby 75 Amp @ +12V With Power
Distributor +5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp Certification
Platinum Level Certified94%+ Platinum Certified [ Test Report ]
Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed
Canada - CUL listed Germany - TUV Certified EN 60950/IEC
60950-Compliant CB Report CCC Certification
