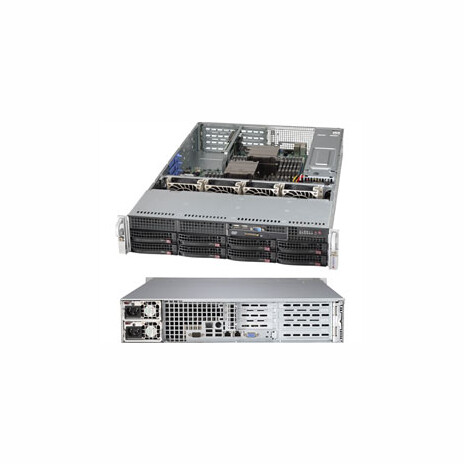

SUPERMICRO 2U chassis 8x 3,5" HS SAS/SATA, 2x800W (80PLUS Titanium), WIO
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Supermicro 2U chassis 8x 3,5" HS SAS/SATA, 2x800W (80PLUS Titanium), WIO

Key Features     2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards     8 x 3.5" hot-swap SAS3/SATA drive bay, 2 x 3.5" fixed drive bay     8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD     1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium     4 full-height & full-length…
Kategorie: Příslušenství
Kód: 3163418PN: CSE-825TQC-R802WBVýrobce: SupermicroZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

Key Features

    2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards
    8 x 3.5" hot-swap SAS3/SATA drive bay, 2 x 3.5" fixed drive bay
    8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
    1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
    4 full-height & full-length expansion slot(s) , 3 low-profile expansion slot(s)
    3 x 80mm Hot-swap PWM Fans

Specifications
Product SKUs
CSE-825TQC-R802WB

    SuperChassis 825TQC-R802WB


Form Factor
2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards

Processor Support
Dual and Single Intel® and AMD processors

Dimensions
Height

    3.5" (89 mm)

Width

    17.2" (437 mm)

Depth

    25.5" (647 mm)

Gross Weight

    52 lbs (23.59 kg)

Packaging (W x H x L)

    26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)

Available Color

    Black


Expansion Slots

    4 full-height & full-length expansion slot(s)
    3 low-profile expansion slot(s)


Drive Bays

    8 x 3.5" hot-swap SAS3/SATA drive bay
    2 x 3.5" fixed drive bay


Backplane

    8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD


Peripheral Drives

    Optional 1 x slim DVD-ROM drive bay
    Optional 2 x USB 2.0 ports
    Optional 1 x COM port tray
    Optional 2 x USB 3.0 ports


Front Panel
Buttons

    Power On/Off button
    System Reset Button

LEDs

    2 Network Activity LEDs
    HDD activity LED
    Power Status LED
    Power Fail LED
    System Information LED

Systems Cooling
Fans

    3 x 80mm Hot-swap PWM Fans


System Monitoring

    Chassis intrusion switch


Operating Environment (System)
Operating Temperature Range

    5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range

    -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

    8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

    5% - 95% (non-condensing)


Power Supply
1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
Power Efficiency

    96%

Total Output Power and Input

    800W with Input 100 - 240Vac
    800W with Input 200 - 240Vdc

AC Input Frequency

    50-60Hz

Dimensions (L x W x H)

    336 x 76 x 40 mm

Output Type

    Backplanes (gold finger)

+12V

    Max: 66A (100Vac - 240Vac)
    Max: 66A (200 - 240)

+5Vsb

    Max: 4A / Min: 0A

Power Distributor

    PDB-PT825-8824
    O/P: 12V/75
    +5V Max: 30
    +3.3V Max: 24
    -12V Max: 0.6

Certification

    Titanium Certified  Titanium Certified


Regulatory (Power Supply)
Power Supply Safety / EMC

    BSMI
    CCC
    CE/EMC
    FCC class A
    TUV/CB
    UL/CUL

Components
Standard Parts List
   Part Number  Qty  Description
Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
HD Backplane BPN-SAS3-825TQ 1 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE
CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
Fan(s) FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
Drive Tray(s) MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
Drive Tray(s) MCP-220-00075-0B 8 Black gen 5.5 hot-swap 3.5"; HDD tray
Drive Tray(s) MCP-220-82502-0B 2 Black fixed 3.5" HDD tray or FDD dummy tray
Power Distributor PDB-PT825-8824 1 SC825 24PIN REDUNDANT POWER DISTRIBUTOR
Power Supply & Accessory PWS-802A-1R 2 1U 800W 100-240Vac/47-63Hz, and DC240 input
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-00102-0N 1 2U WIO rear window for SC825, SC826, SC213, SC216
Optional Parts List
   Part Number  Qty  Description
Adaptor Bracket  MCP-120-82503-0N  -  Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
Cable Management Arm  MCP-290-00073-0N  -  Supermicro Cable Management Arm for 2U, 3U and 4U chassis
Rail  MCP-290-00058-0N  -  Short rail set, quick release, 19.6"~26.9" Extendable Length
Front USB  MCP-220-00007-01  -  Black USB/COM port tray for SC825, 836
Front USB  MCP-220-00114-0N  -  Black 2x USB3.0/COM port tray in slim DVD bay,RoHS/REACH
Tray(s)  MCP-290-00036-0B  -  Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
Tray(s)  MCP-220-00023-01  -  Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
Tray(s)  MCP-220-82503-0B  -  Black slim FDD kit for SC825/829,828,835
Cable  CBL-0157L  -  8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
Cable  CBL-SAST-0699  -  internal mini SAS HD to 4 SATA 12G, 75/75/90/90cm w/75cm SB, S. 30AWG,RoHS/REACH
Cable  CBL-0082L  -  Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
Cable  CBL-0296L  -  4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable  CBL-0180L-01  -  SET OF 4 SATA 70/59/48/38CM ROUND S-RA, 26AWG
LCD/OLED Solutions  MCP-220-00119-0B  -  2nd Gen Black 3.5" OLED tray, support 1x internal 2.5" HDD
SATA DVD Kit  MCP-220-81502-0N  -  Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
HDD Tray Converter  MCP-220-00043-0N  -  Black hot-swap gen 4 3.5 to 2.5 HDD tray
DVD-ROM / DVD-RW  DVM-TEAC-DVD-SBT5  -  BLACK TEAC SLIM DVD SATA DRIVE,HF,RoHS
SATA DVD Kit  MCP-220-81502-0N  -  Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
Peripheral Drive(s)  FPD-TEAC-SB  -  BLACK SLIM TEAC FLOPPY DRIVE FOR SC813
Front Bezel  MCP-210-82503-0B  -  Black SC825 front bezel
Motherboard (for CSE- 825TQC-R802WB)
X11DDW-L  X11DDW-NT
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU

Parametry

Provedení2U
