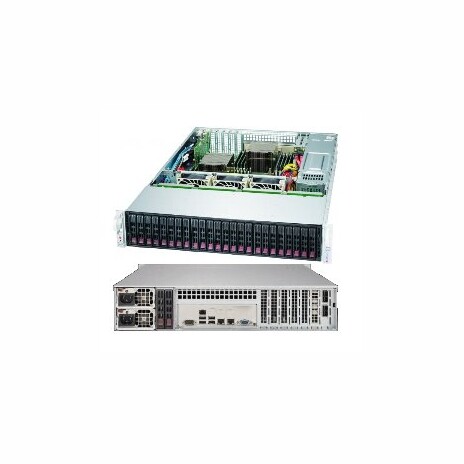

SUPERMICRO 2U chassis 24x 2,5"HS (20x SAS/SATA +4x SAS/SATA/NVMe), 2x1200W (80PLUS titanium)
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Supermicro 2U chassis 24x 2,5"HS (20x SAS/SATA +4x SAS/SATA/NVMe), 2x1200W (80PLUS titanium)

  Key Features   2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x…
Kategorie: Příslušenství
Kód: 3194762PN: CSE-216BAC4-R1K23LPBVýrobce: SupermicroZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
28 348   včetně DPH
Cena bez DPH: 23 428 Kč
Běžná maloobchodní cena: 33 432 Kč
Ušetříte 5 084 Kč (15,21 %)
Cena po registraci:
28 321 Kč
Cena bez DPH: 23 406 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 5.8. / ZDARMA!
Přepravní službou (ČR)9.8. / od 190 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.
Toto zboží je možné koupit pouze na IČ.

Popis produktu

Key Features

  1. 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
  2. 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay
  3. 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
  4. 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
  5. 7 low-profile expansion slot(s)
  6. 3 x 8cm high-performance PWM fan(s)
  7. Optional 5 x 6cm 4pin high performance fan(s)

Specifications

Product SKUs

CSE-216BAC4-R1K23LPB
  • SuperChassis 216BAC4-R1K23LPB

Form Factor

  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
  • Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

Processor Support

  • Dual, single Intel® / AMD processors

Dimensions

Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 24.8" (630 mm)
Gross Weight
  • 53 lbs (24.04 kg)
Packaging (W x H x L)
  • 25.8" (655 mm) x 10.1" (257 mm) x 37.8" (960 mm)
Available Color
  • Black

Expansion Slots

  • 7 low-profile expansion slot(s)

Drive Bays

  • 24 x 2.5" hot-swap SAS/SATA drive bay
  • Optional 2 x 2.5" hot-swap drive bay

Backplane

  • 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices

Front Panel

Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Power Status LED
  • Unit Identification (UID) LED
Systems Cooling

Fans
  • 3 x 8cm high-performance PWM fan(s)
  • Optional 5 x 6cm 4pin high performance fan(s)

System Monitoring

  • Chassis intrusion switch

Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
  • 96%
Total Output Power and Input
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vac
  • 1200W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 83A (100Vac - 127Vac)
  • Max: 100A (200Vac - 240Vac)
  • Max: 100A (200 - 240)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT216-2824
  • O/P: 12V/100
  • +5V Max: 30
  • +3.3V Max: 24
  • -12V Max: 0.6
Certification
  • Titanium Certified  Titanium Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Components

Standard Parts List

  Part Number Qty Description
Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
HD Backplane BPN-SAS3-216A-N4 1 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(S) CBL-0088 3 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM)
Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE
Cable(S) CBL-0182L 1 PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
Cable(S) CBL-0217L 1 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
Fan(s) FAN-0158L4 3 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
Front Panel FPB-FP826-D 1 Front control board Dual color LED(FP826-D)forSC826,213,216,219
Front Panel TB826 1 Front panel adaptor board (TB826) forSC826,213,216,219
Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
Drive Tray(s) MCP-220-00047-0B 24 Black gen 3rd hot-swap 2.5inch HDD tray
Power Distributor PDB-PT216-2824 1 PDB with 23pairs input connectors for SC216B
Power Supply & Accessory PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag
Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF

Optional Parts List

  Part Number Qty Description
Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
HDD Kit MCP-220-82609-0N - Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B
Fan Kit MCP-320-82603-0N - 6cm fan cooling module for 826B/216B (5X6cm fan)
Front Bezel MCP-210-82601-0B - Black Front Bezel for 826 chassis
HDD Kit MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B

Parametry

Provedení2U
