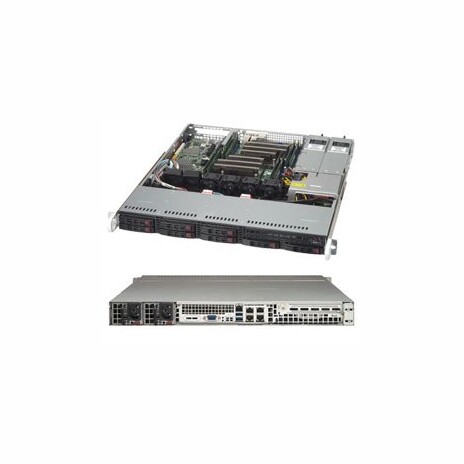

Key Features 1. Hybrid backplane design for best supportability.
Supports up to 8 port SAS3 12Gb/s or 6 port SAS3 12Gb/s and 2 port
NVMe(determined by system and cable configuration)
--------------------------------------------------------------------------------
2. 8hot-swap 2.5” drives bays
--------------------------------------------------------------------------------
3. 1U Rackmountchassis – 19.98” depth
--------------------------------------------------------------------------------
4. Motherboard size support up to ATX 12”x10” MB
--------------------------------------------------------------------------------
5. 600W Redundant Power Supply Gold Level Certified
--------------------------------------------------------------------------------
6. Optimize cooling with 4 40x28mm (22.5K RPM) PWM fans (optional
upgrade up to 6 PWM fans) Form Factor 1U chassis for motherboard
support size of ATX 12" x 10" Processor Support Dual and Single
Intel® and AMD processors Dimensions Height 1.7" (43mm) Width 17.2"
(437mm) Depth 19.98" (507mm) Packaging 24'' (W) x 8.3''(H) 30'' (L)
Gross Weight 33 lb (14.97 kg) Available Colors black Expansion
Slots 1 full-height & full-length expansion slot(s) Peripheral
Drives 1 x Optional slim DVD-ROM drive bay Drive Bays Hot-swap 8 x
2.5" hot-swap SAS/SATA drive bay Front Panel Buttons • Power On/Off
button • System Reset Button LEDs • 2 Network Activity LEDs • HDD
activity LED • Power Status LED • Unit Identification (UID) LED
Motherboard(s) for CSE-113MFAC2-R606CB X10DRL-C X10DRL-CT X10DRL-iT
X10SRH-CF X10SRH-CLN4F Server(s) for SC113MFAC2-R606CB 1028R-MCTR
System Cooling Fans 4x 40x28mm PWM fan 2x fans for AOC cooling
System Monitoring Chassis intrusion switch Operating Environment
(System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range 8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply with Power Distributor 600W Redundant High-Efficiency
Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC AC
Input 100-240V, 50-60Hz, 7.5-3.0A DC Output +5V standby: 3A +12V:
50A Certification Platinum Level Certified94%+ Platinum Certified [
Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC
USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified
Europe/CE Mark EN 60950/IEC 60950-Compliant
