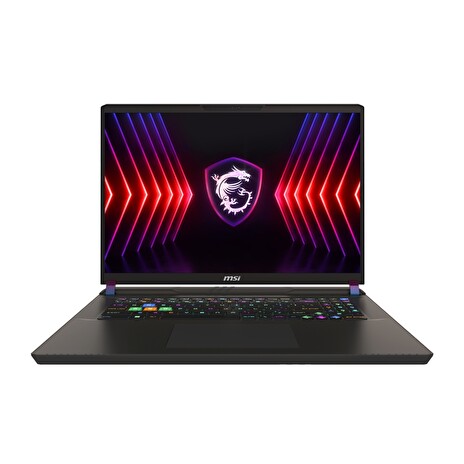

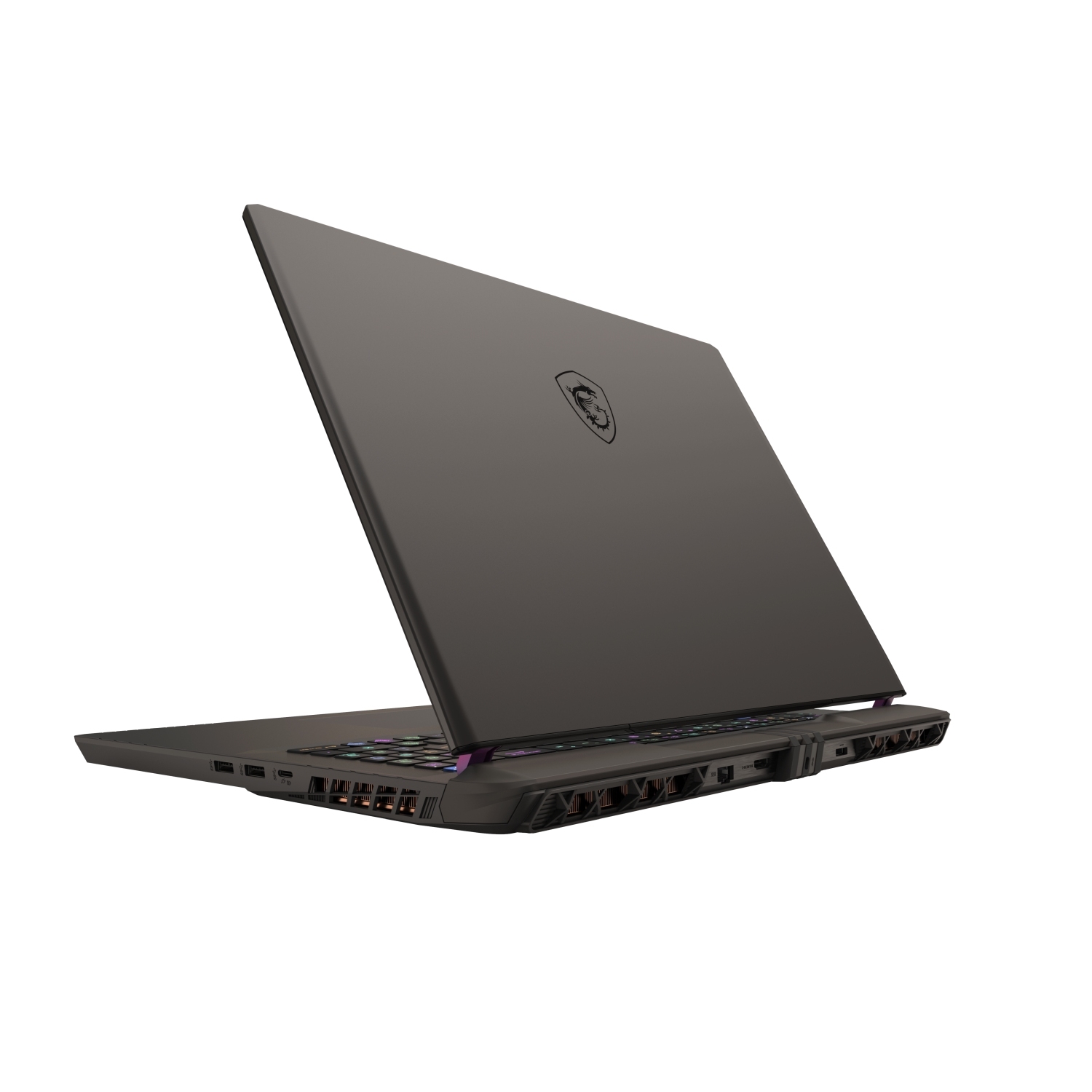

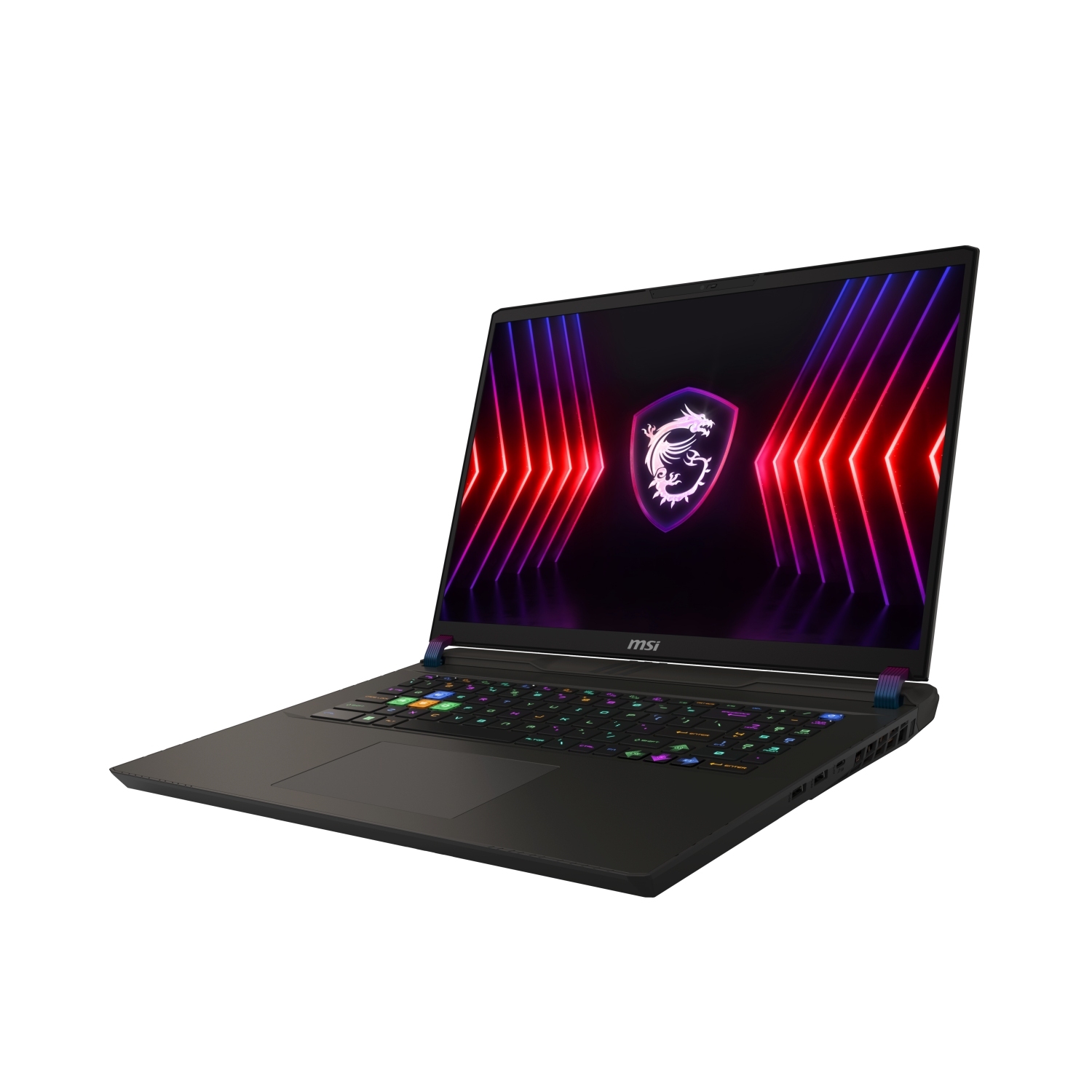

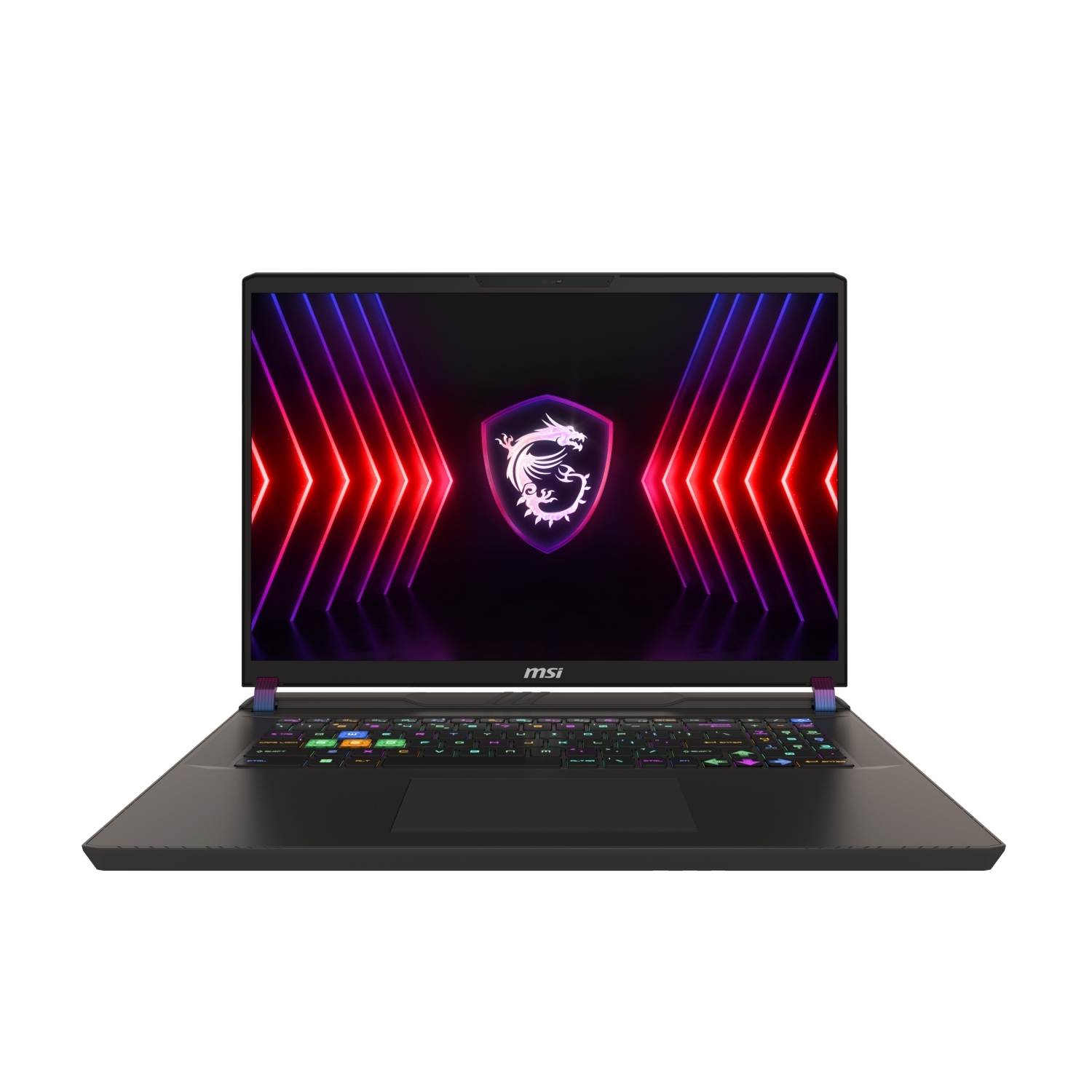

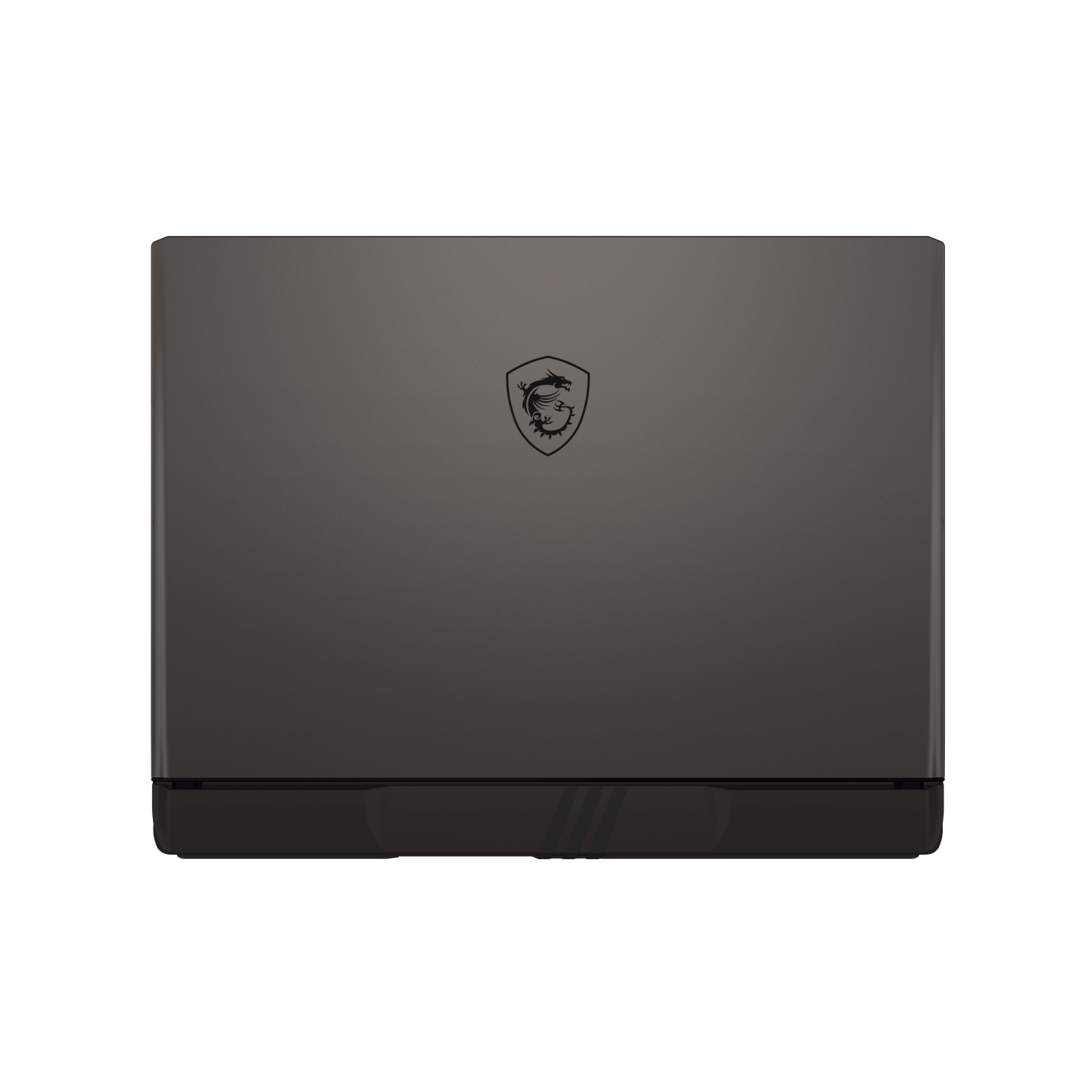

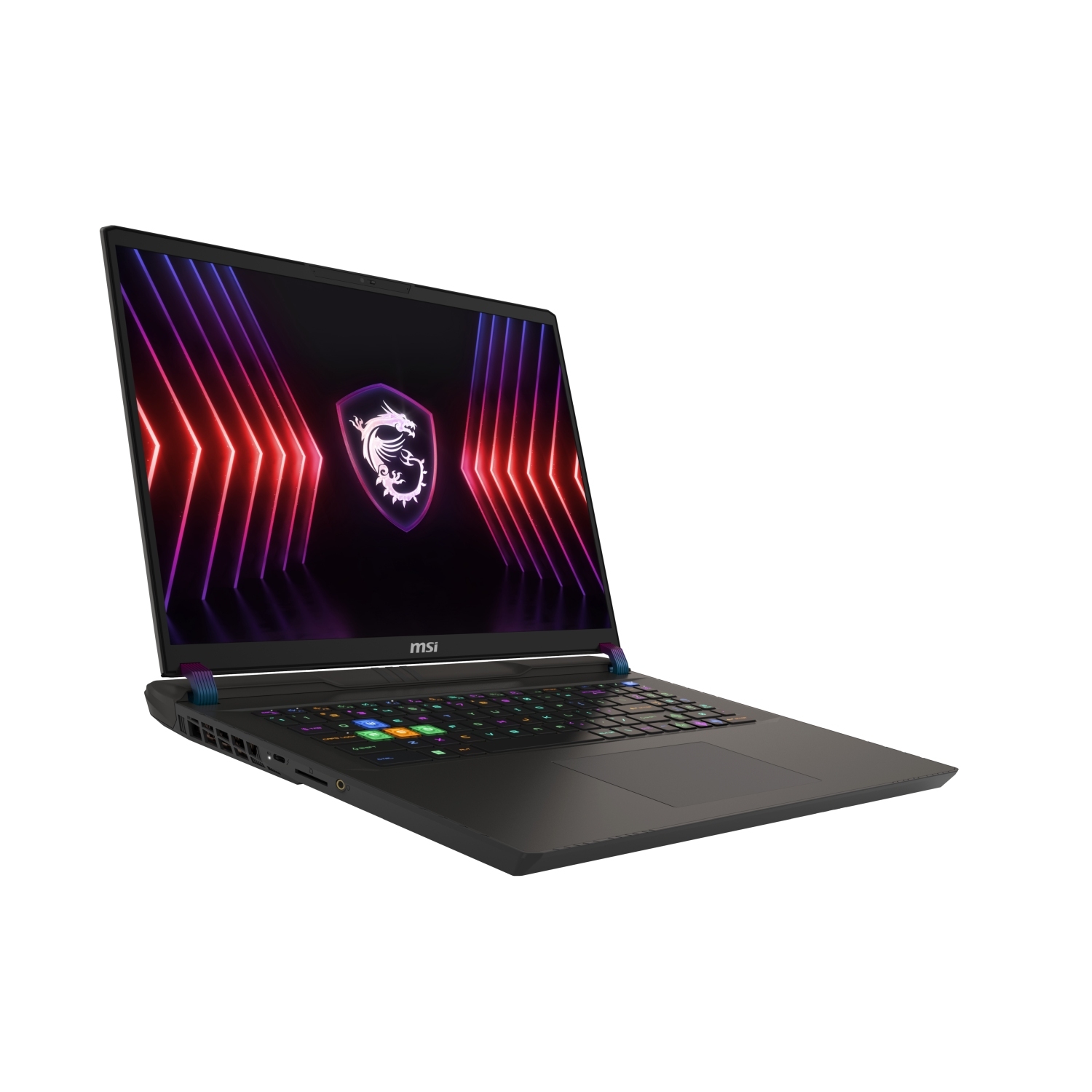

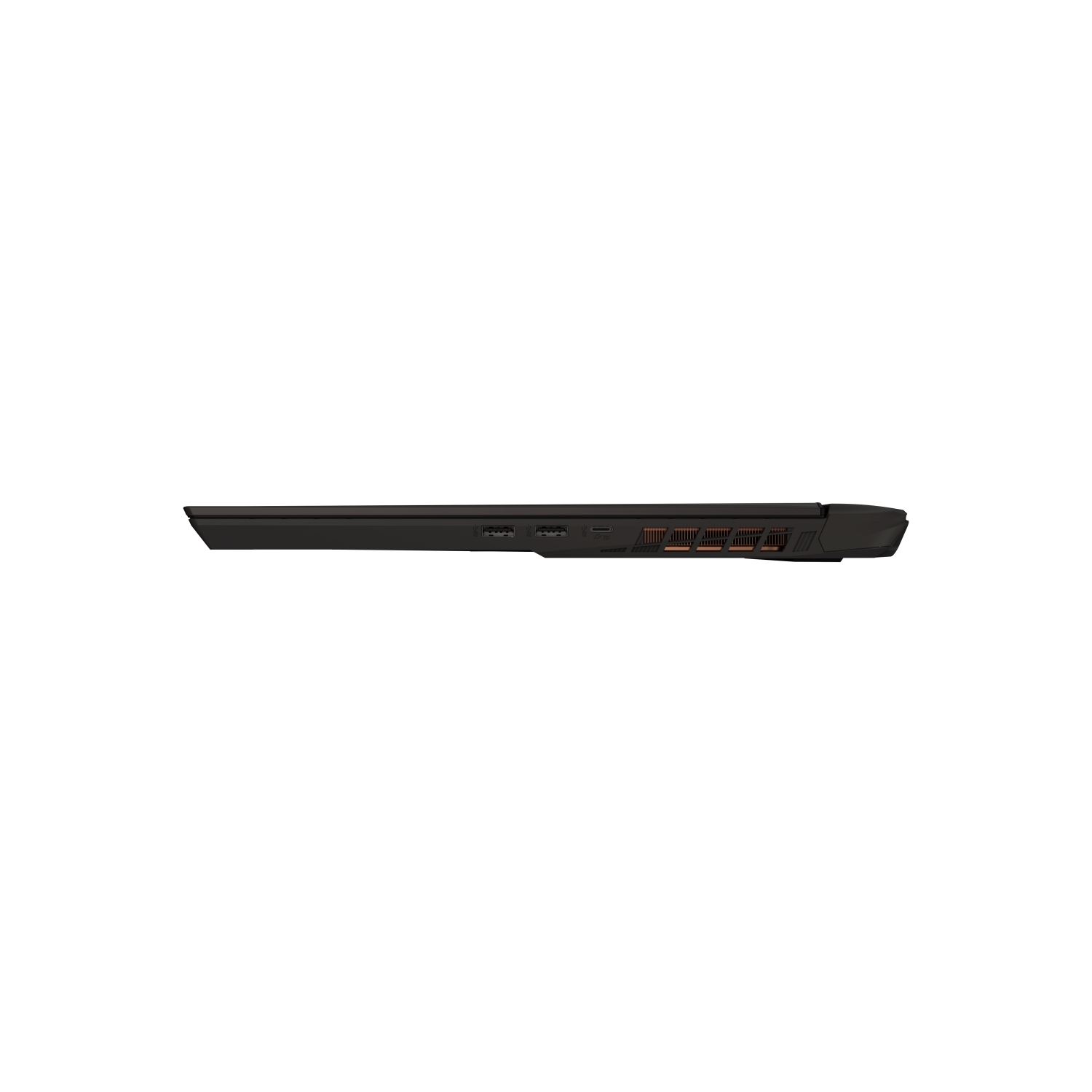

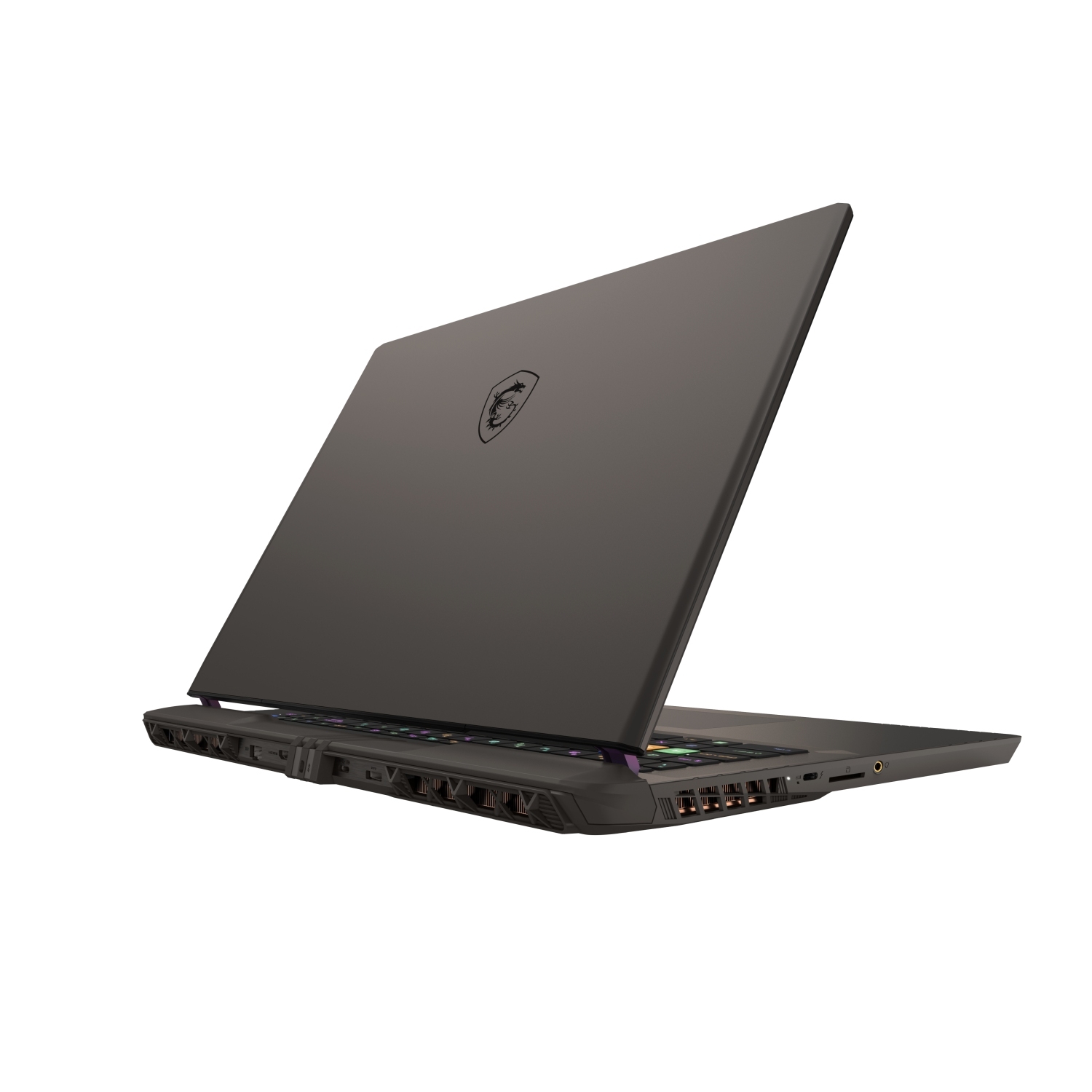

MSI Vector 17 HX A14VGG-245CZ ,i9-14900HX/32GB/1TB SSD/RTX 4070,
8GB/17"QHD+ IPS/Win 11 Home/černá
Part No 9S7-17S262-245
SKU Number
Website Name Vector 17 HX A14VGG
Brand MSI
Platform INTEL
Series Name Gaming
Segment Name GP
Segment Name2 Vector17HXA
Segment Name3 Vector17HX A14VGG
Model 17S2
MKT Name Vector 17 HX A14VGG
Entity MKT Name
MKT Spec Vector 17 HX A14VGG-245CZ
System/Barebone System
Chassis Color
Color ID6(GG)/Cosmos_Gray-Black-Cosmos_Gray-Cosmos_Gray
Color_Website Cosmos Gray
Chassis Material
A Side Metal
B Side Plastic
C Side Plastic
D Side Plastic
Display
Screen Size 17
Resolution IPS-Level QHD+
Pixel 2560x1600
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 240Hz
Response Time G to G 3ms
Color Range 100% DCI-P3
Screen Size_Website 17"
Pixel_Website QHD+(2560x1600)
Frame Rate_Website 240Hz Refresh Rate
Color Range_Website 100% DCI-P3(Typical)
Display Type_Website IPS-Level
HDR Value N/A
Touch Feature_Website NA
CPU
CPU Type N/A
CPU Core Name RAPTOR LAKE HX REFRESH
CPU Socket FCBGA-1964pin
CPU Number i9-14900HX
CPU Clock 2.2GHz
CPU Cores N/A
CPU Core Name_Website N/A
CPU Number_Website Intel® Core™ i9 processor 14900HX
CPU Specification_Website 24 cores (8 P-cores + 16 E-cores), Max
Turbo Frequency 5.8 GHz
Chipset
Chipsets HM770
Chipset SoC_Website Intel® HM770
Discrete Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX 4070
GPU1 Number RTX 4070
GPU1 MKT Name_Website NVIDIA® GeForce RTX™ 4070 Laptop GPU
GPU1 Boost Clock_Website Up to 2175MHz Boost Clock 140W Maximum
Graphics Power with Dynamic Boost.
*May vary by scenario
GPU1 Remark_Website *Full-Power GPU Design
CPU and GPU Combined Power
Combined Power_Website Max. 215W CPU-GPU Power with MSI OverBoost
Technology.
OverBoost Ultra Remark_Website N/A
Scenario Remark_Website NA
Cooling
Thermal Cooler Boost 5
Fan 2
Pipe 6
Vapor Chamber N/A
Video Memory
GPU1 VRAM Size 8GB
GPU1 VRAM Type GDDR6
Integrated Graphics
GPU1 Graphics_Website Intel® UHD Graphics
Memory
Memory Size 16GB*2
Memory Type Up to DDR5-5600
Memory Speed 2800(5600)MHz
Memory Remark_Website N/A
Memory Slot and Max Capacity
Memory Slot 2 Slots
Memory Max Capacity_Website Max 64GB
Storage
SSD Interface PCIe GEN4x4 NVMe
SSD Form Factor M.2-2280 M-KEY
SSD Size 1TB*1
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD size N/A
HDD1 RPM N/A
ODD Type N/A
Multi Bay N/A
SSD Gen_Website NVMe SSD PCIe Gen4
2.5" HDD_Website N/A
SSD Remark N/A
Storage Slot
SSD (NVMe PCIe Gen)_Website 1x M.2 SSD slot (NVMe PCIe Gen4), 1x
M.2 SSD slot (NVMe PCIe Gen5) Compatible
HDD_Website N/A
Communications
Accessory Lan_Website Gb LAN (Up to 2.5G)
LAN
LAN_Website 2.5 Gigabit Ethernet
LAN REALTEK/RTL8125BG-CG
Wi-Fi/ Bluetooth
WLAN/BT_Website Intel® Killer™ Wi-Fi 7 BE1750, Bluetooth v5.4
WLAN Version Wi-Fi 7+BT
WLAN/BT INTEL/BE200.NGWG.NVX

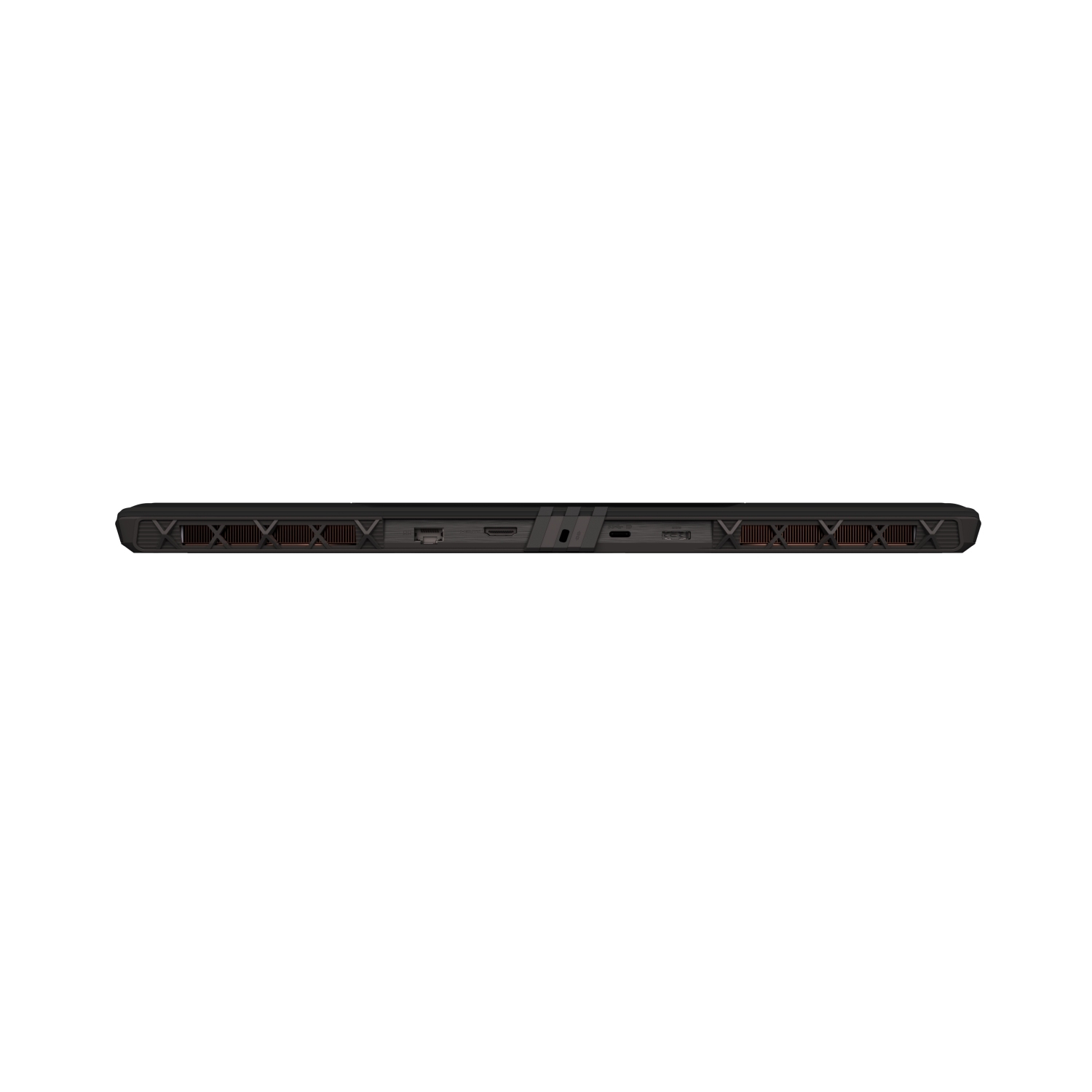

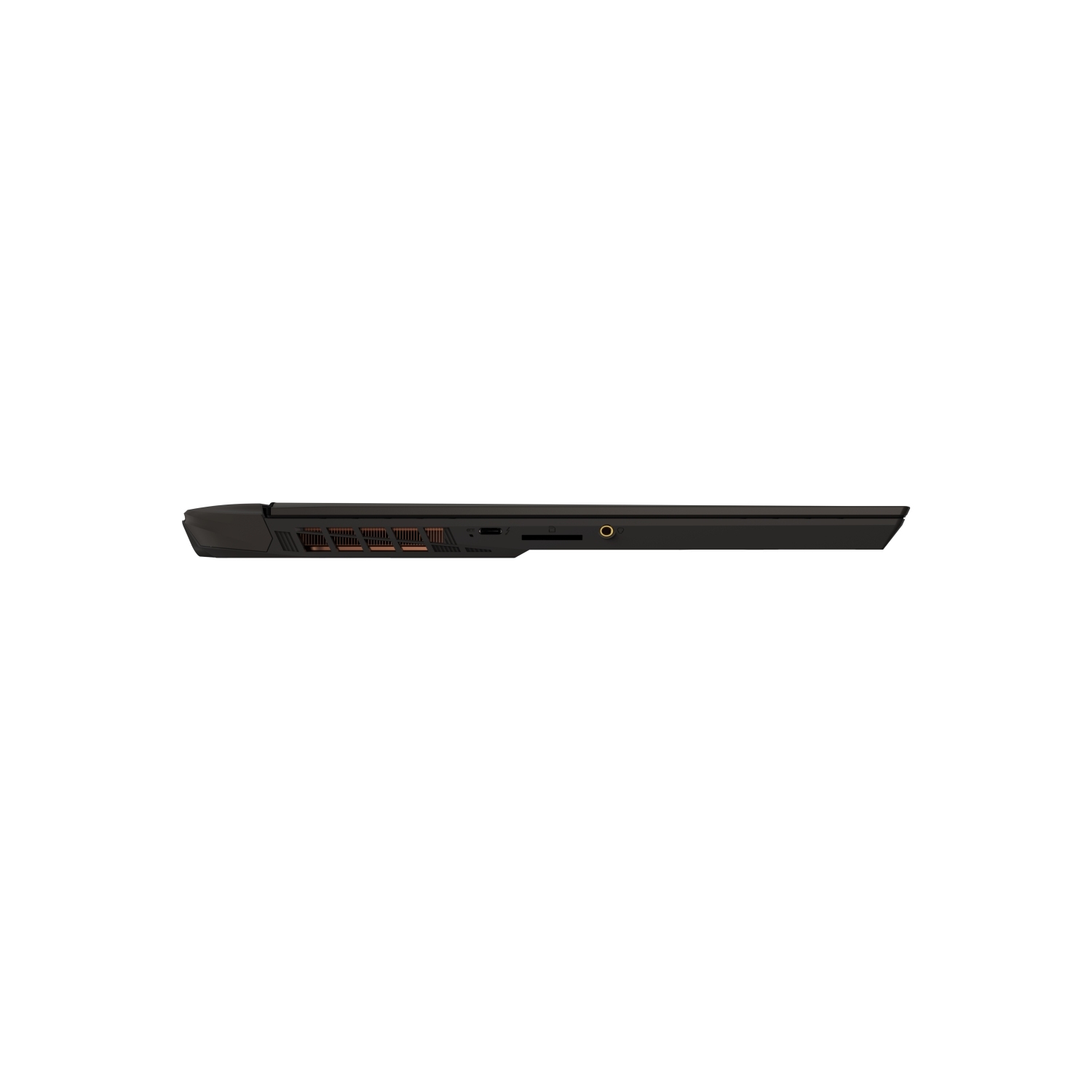

I/O Ports
Audio Line In N/A
Audio Line Out N/A
Digital out SPDIF N/A
RJ45 1x
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) NA
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) NA
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) NA
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging NA
Type-C (USB3.2 Gen2 / DP) 1x
Type-C (USB / DP / Thunderbolt™ 4) with PD charging NA
Type-C (USB / DP / Thunderbolt™ 4) with PD3.1 charging NA
Type-C (USB / DP / Thunderbolt™ 4) 1x
Type-C (USB / DP / Thunderbolt™) with PD charging NA
Type-C (USB3.2 Gen2 / DP) with PD charging 1x
Type-C (USB3.2 Gen2 / DP) with PD3.1 charging NA
Type-C (USB3.1 Gen1 / DP) NA
Type-C (USB3.2 Gen1 / DP) NA
Type-C USB3.1 Gen2 NA
Type-C USB3.2 Gen2 NA
Type-C USB3.2 Gen2 with PD charging NA
Type-C USB3.1 Gen1 NA
Type-C USB3.2 Gen1 NA
Type-A USB3.1 Gen1 NA
Type-A USB3.2 Gen1 1x
Type-A USB3.1 Gen1/ QC3.0 NA
Type-A USB3.2 Gen1/ QC3.0 NA
Type-A USB3.1 Gen2 NA
Type-A USB3.2 Gen2 1x
Type-C USB3.2 Gen2x2 NA
Type-A USB3.1 NA
Type-C USB3.0 N/A
Type-A USB3.0 NA
Type-A USB2.0 NA
USB3.2 Gen 2 Type-C(connect to computer) NA
Card Reader
CardReader 1x SD Express
Smart Card Reader NA
Video Ports
VGA Out NA
HDMI™ 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)
DisplayPort NA
Mini Display Port NA

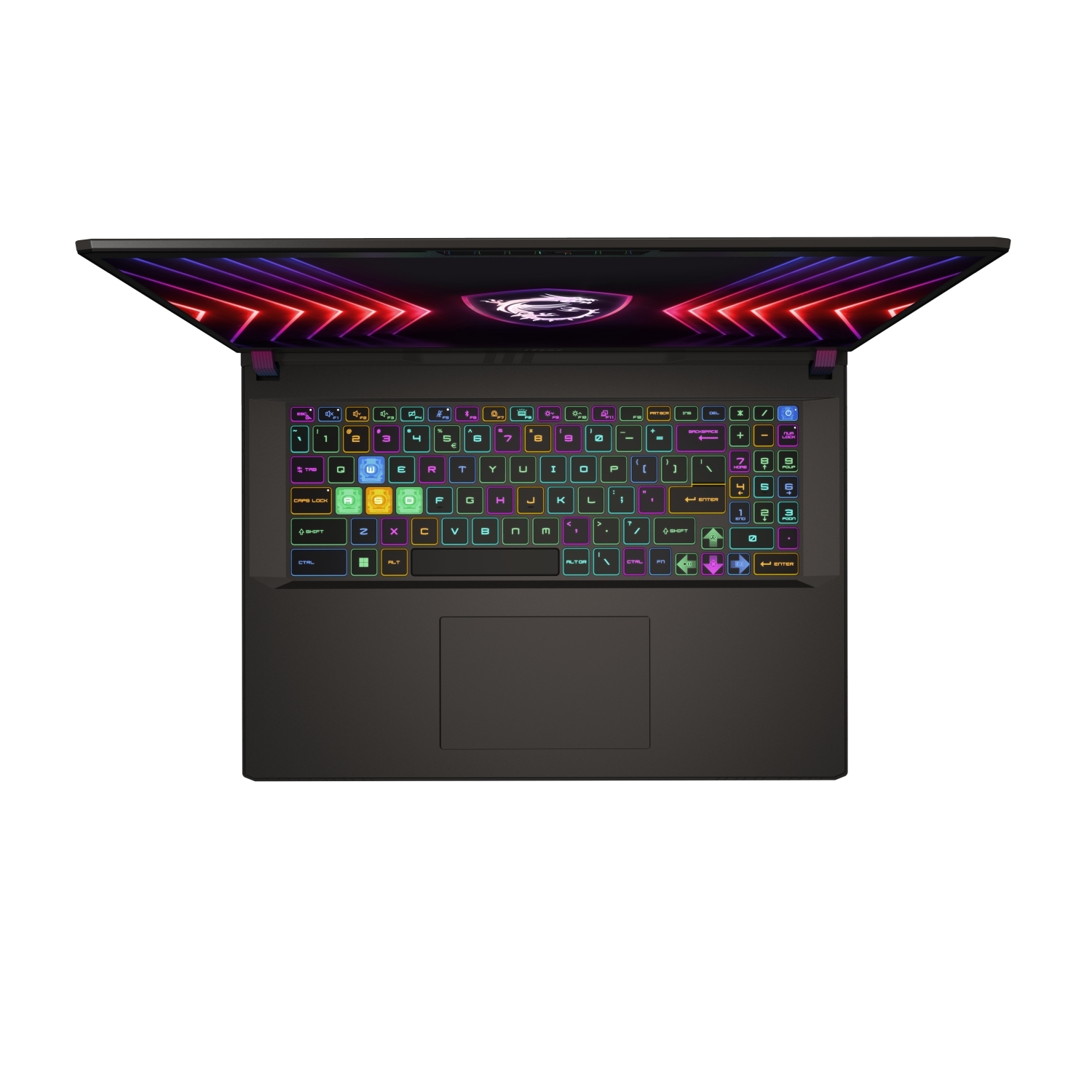

Keyboard
Keyboard Types_Website Per-Key RGB Gaming Keyboard by SteelSeries
Keyboard Keys 99KEYS
Keyboard Backlit Y
Keyboard Numeric Yes
Keyboard Color BLACK
Keyboard Language CS Wleft Nokr
Touchpad
Touchpad Silky Smooth Touchpad
WebCam
WebCam HD type (30fps@720p)
Webcam Feature 3D Noise Reduction (3DNR)
Audio Port
Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack
Audio
Audio Speaker 2x 2W
Audio Woofer NA
Audio Mic N/A
Audio Solution_Website Nahimic 3 Audio Enhancer, Hi-Res Audio Ready
AC Adapter
Adaptor Output 280W adapter
Adaptor 280W
Adaptor Input 90-264Vin
Adaptor Unit Weight (g) 850
Power Cord Unit Weight (g) 195
Battery
Battery Type 4CELLS/4S1P
Battery Cell_Website 4-Cell
Whrs 90 Whrs
Battery Unit Weight (g) 360
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME ADVANCED OLC OA3)
OS Type W11MA
OS_Website Windows 11 Home (MSI recommends Windows 11 Pro for
business.)
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension 380 x 297.97 x 23.55-29.45 mm
Dimension(Inches)_Website 14.96" x 11.73" x 0.93-1.16"
Weight (W/ Battery)
Weight 3 kg
Weight(lbs)_Website 6.61 lbs
Weight (Docking) N/A
Weight (lbs Docking)_Website N/A
Security
Security Type_Website Webcam Shutter, Kensington Lock
Certification
Certification Type_Website Meta Ready
Sustainability
EPEAT_Website
Sensor
Fingerprint_Website N/A
Fingerprint (Optional) N/A
Ambient Light Sensor_Website N/A
Gyroscope_Website N/A
Accelerometer_Website N/A
Magnetometer_Website N/A
Proximity Sensor N/A
NFC (Optional) N/A
Warranty
Warranty 24M
Warranty_Website 2 years limited warranty
Accessory
Accessory_Website
Extra Bag N/A
Extra Mouse N/A
Remark
I/O Ports Remark N/A
Remark 1_Website
Remark 2_Website
Remark 3_Website
Remark 4_Website
Remark 5_Website
Software
Software Nvidia GeForce Experience, Nahimic 3, Gaming Mode, Mystic
Light, Ambient Link, Crosshair, Battery Master, MSI Center,
Steelseries GG, Discrete Graphics Mode, Smart Auto, MSI AI Engine,
AI Noise Cancellation Pro
Model Info
Series Name Gaming
Segment Name GP
Segment Name2 Vector17HXA
Segment Name3 Vector17HX A14VGG
Barcode Info
EAN 4711377185158
