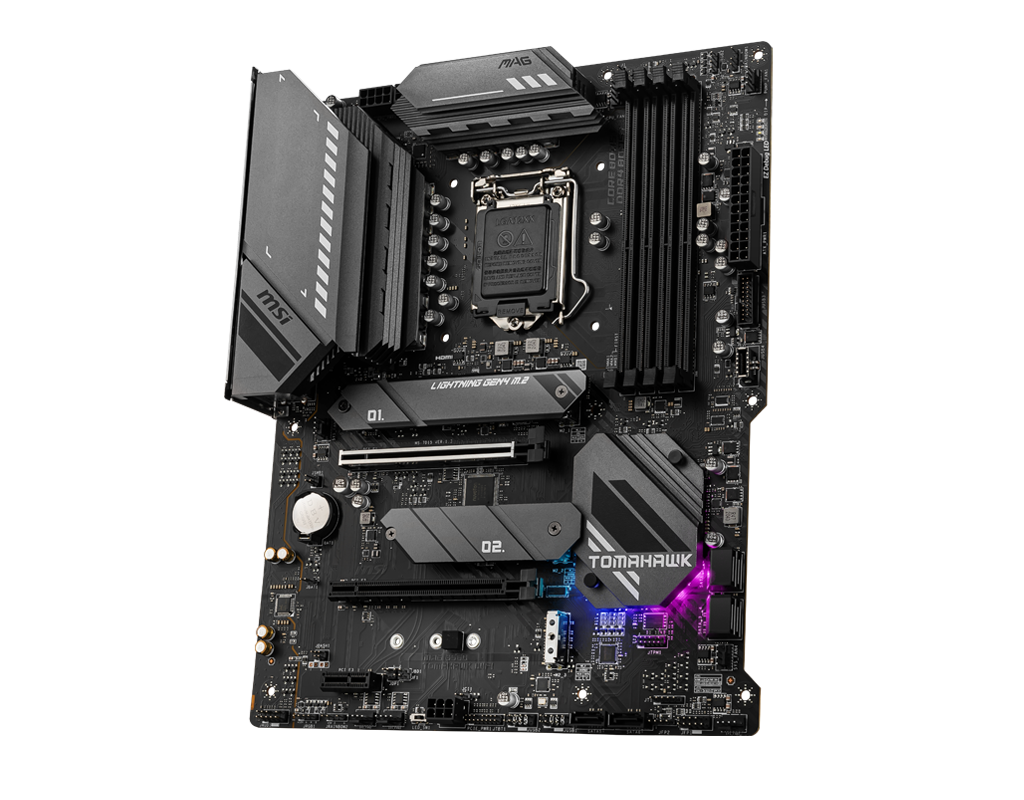

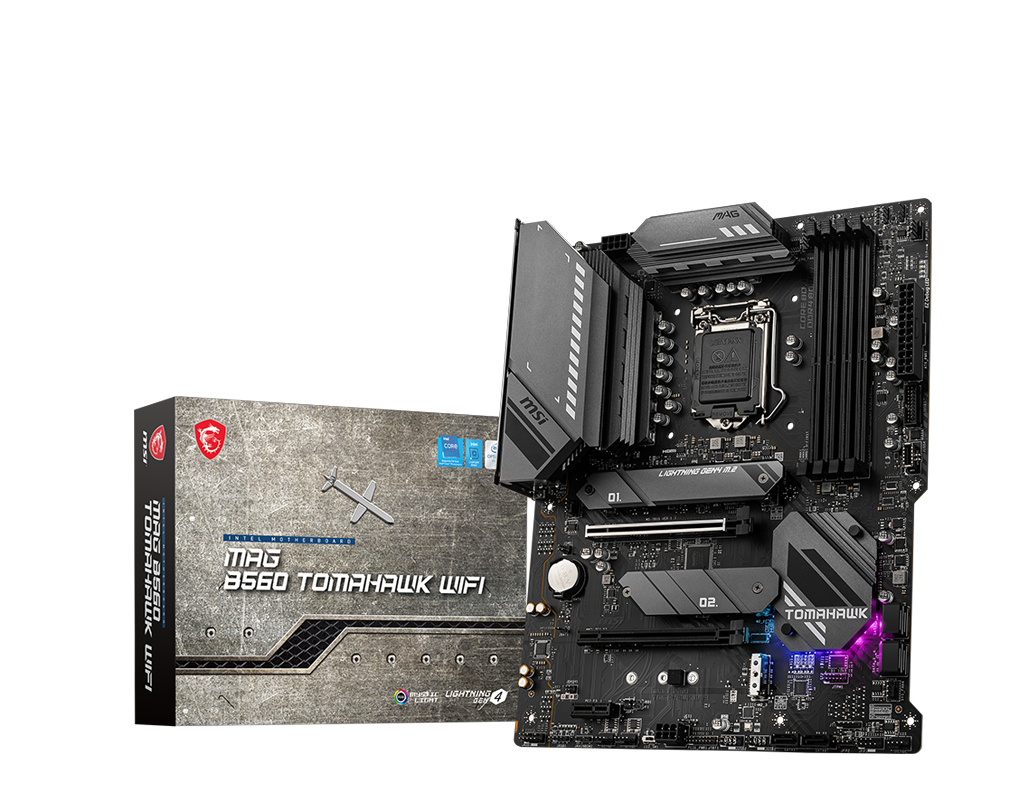

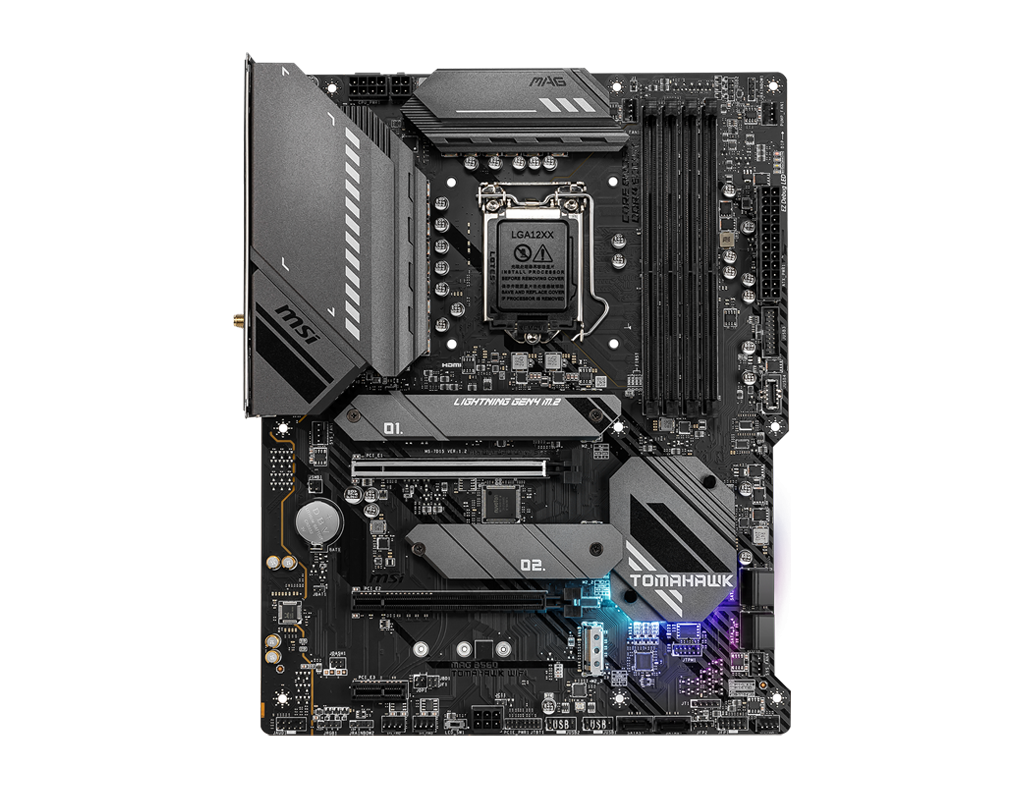

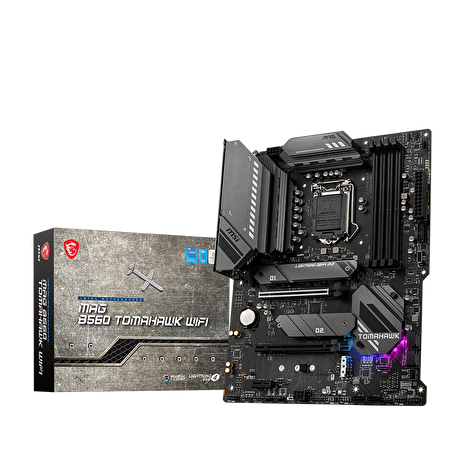

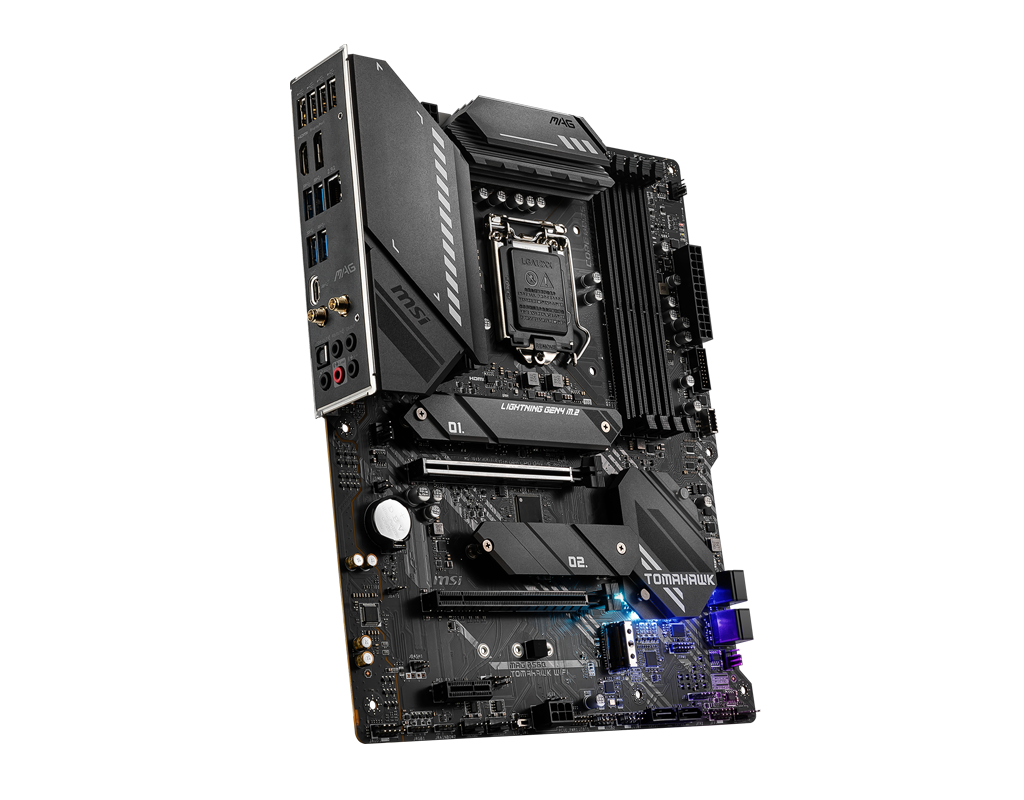

MSI MB Sc LGA1200 MAG B560 TOMAHAWK WIFI, Intel B560, 4xDDR4, 1xDP, 1xHDMI, WI-FI
MSI MB Sc LGA1200 MAG B560 TOMAHAWK WIFI, Intel B560, 4xDDR4, 1xDP, 1xHDMI, WI-FIMSI MB Sc LGA1200 MAG B560 TOMAHAWK WIFI, Intel B560, 4xDDR4, 1xDP, 1xHDMI, WI-FIMSI MB Sc LGA1200 MAG B560 TOMAHAWK WIFI, Intel B560, 4xDDR4, 1xDP, 1xHDMI, WI-FIMSI MB Sc LGA1200 MAG B560 TOMAHAWK WIFI, Intel B560, 4xDDR4, 1xDP, 1xHDMI, WI-FI
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

MSI MB Sc LGA1200 MAG B560 TOMAHAWK WIFI, Intel B560, 4xDDR4, 1xDP, 1xHDMI, WI-FI

MAG B560 TOMAHAWK WIFI Supports 10th Gen Intel Core™, 11th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5066(OC) MHz Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and…
Kategorie: Základní desky
Kód: 3244546PN: MAG B560 TOMAHAWK WIFIVýrobce: MSIZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
5 083   včetně DPH
Cena bez DPH: 4 201 Kč
Běžná maloobchodní cena: 5 247 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 29.9. / ZDARMA!
Přepravní službou (ČR)již 1.10. / od 120 Kč
Na výdejním místě (ČR)4.10. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.
Toto zboží je možné koupit pouze na IČ.

Popis produktu

MAG B560 TOMAHAWK WIFI

  • Supports 10th Gen Intel Core™, 11th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5066(OC) MHz
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

PROCESSOR

Supports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron*
Processor socket LGA1200
*Please go to intel.com for compatibility information.

CHIPSET

Intel B560 Chipset

MEMORY

4 x DDR4 memory slots, support up to 128GB *
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
*Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

2x PCIe x16 slots
PCI_E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E2 (from B560 chipset)
Support up to PCIe 3.0 x4
1x PCIe 3.0 x1 slot (from B560 chipset)

ONBOARD GRAPHICS

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz*/**
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz*/**
Available only on processors featuring integrated graphicsGraphics specifications may vary depending on the CPU installed.

MULTI-GPU

Supports 2-Way AMD CrossFire™ Technology

STORAGE

6x SATA 6Gb/s ports (from B560 chipset) *
3x M.2 slots (Key M)
M2_1 slot (from CPU)
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2* slot (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports SATA up to 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
Intel Optane™ Memory Ready**
Supports Intel Smart Response Technology for Intel Core™ processors
*SATA1 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
**Before using Intel Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel B560 Chipset
1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
4x USB 2.0 ports on the back panel
Hub-GL850G
4x USB 2.0 ports available through the internal connectors

AUDIO

Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1x Realtek RTL8125B 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH

IntelWi-Fi 6E AX210
The Wireless module is pre-installed in the M.2 [Key-E] slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz *(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2**, FIPS, FISMA
*Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
**Bluetooth 5.2 will be ready in WIN10 21H1.

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
5x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (supports RTD3)
1x Tuning Controller connector

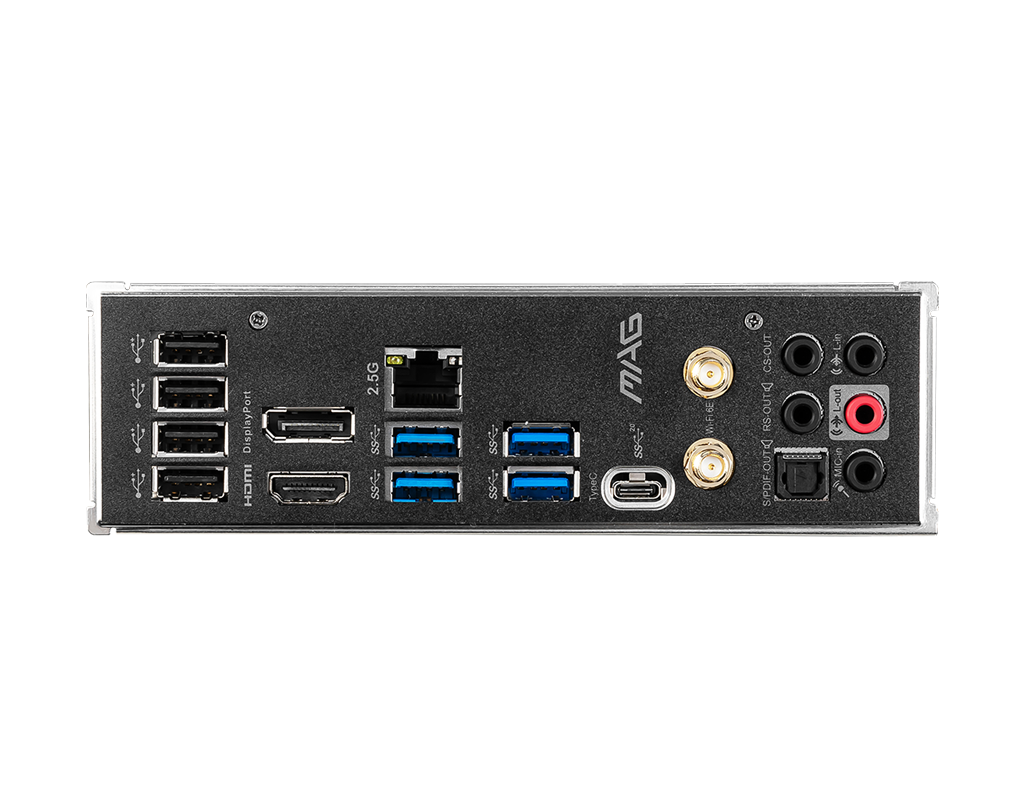

BACK PANEL PORTS

USB 2.0
DisplayPort
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT

Parametry

Další rozhraníM.2
Další rozhraníWiFi
FormátATX
ChipsetIntel
Integrovaná LAN karta1
PCI express 16xVíce než 1
Podpora RAIDBez RAID podpory
RozhraníHDMI
RozhraníUSB 2.0
RozhraníUSB 3.2
RozhraníLAN (RJ-45)
RozhraníDisplayPort
Socket (patice)Socket 1200
Technologie paměti RAMDDR4
