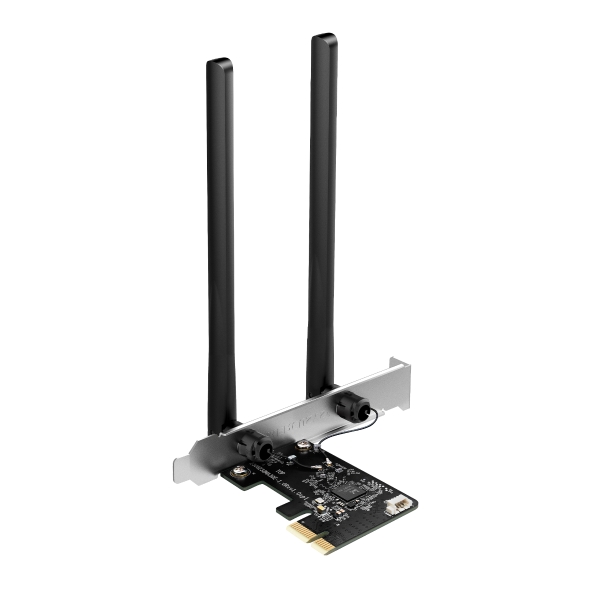

Mercusys MA30E AC1200 Dual-Band WiFi BT PCIe

Mercusys MA30E AC1200 Wi-Fi Bluetooth PCIe Adapter
Functions Strong Dual Band Wi-Fi Speed

*Speeds up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)1

Wider Signal Coverage

*Two high-performance antennas

Bluetooth 5.0

*The Bluetooth 5.0 technology achieves faster speeds and broader coverage2

MU-MIMO

*Simultaneously serve several devices with no more latency or bandwidth congestion3

Improved Security

*The latest security enhancement, WPA3, provides enhanced protection in personal password safety4

Backward Compatibility

*Full support for 802.11ac/a/b/g/n standards

Windows Compatible

*Supported operating system: Windows 10, 11 (64 bit)

Specifications

WirelessWireless Standards *IEEE 802.11 a/n/ac 5 GHz *IEEE 802.11 b/g/n 2.4 GHz WiFi Speeds *867 Mbps on 5 GHz *300 Mbps on 2.4 GHz Reception Sensitivity 5 GHz: *11a 54Mbps: -77 dBm *11ac VHT80 MCS0: -92dBm *11ac VHT80 MCS9: -64dBm 2.4 GHz: *11g 54Mbps: -76 dBm *11n HT40 MCS7: -72dBm Wireless Security *WPA-PSK/WPA2-PSK/WPA3-SAEHardwareDimensions *8.9 × 4.8 × 0.85 in (226.3 × 120.8× 21.5 mm Antenna Type *2× Fixed High-Performance Omni-Directional Antennas
