Essentials
Product Collection

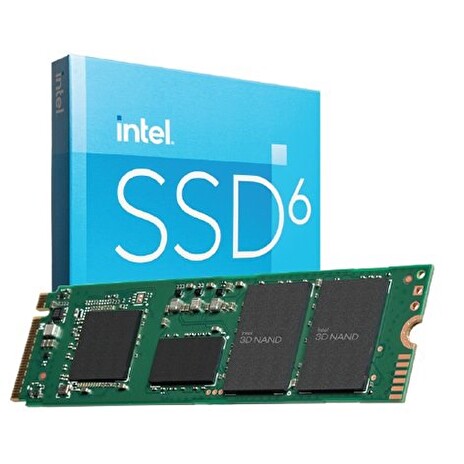

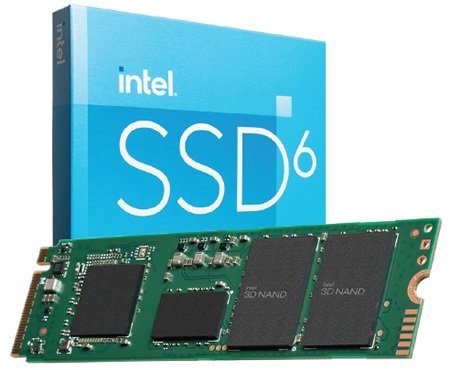

Intel® SSD 6 Series
Code Name:Products formerly Keystone Harbor
Capacity: 1TB
Lithography Type: 3D4 QLC
Use Conditions: PC/Client/Tablet
Performance Specifications
Sequential Bandwidth - 100% Read (up to) 3500 MB/s
Sequential Bandwidth - 100% Write (up to) 2500 MB/s
Random Read (8GB Span) (up to) 220000 IOPS
Random Write (8GB Span) (up to) 330000 IOPS
Power - Active : 80 mW
Power - Idle: 25 mW
Reliability
Vibration - Operating: 2.17 GRMS (5-700Hz) Max
Vibration - Non-Operating: 3,13 GRMSG (5-800Hz) Max
Shock (Operating and Non-Operating): Operating; 1,000 G/0.5 ms
--Non Operation; 1,500 G/0.5 ms
Operating Temperature Range: 0°C to 70°C
Operating Temperature (Maximum): 70 °C
Operating Temperature (Minimum): 0 °C
Endurance Rating (Lifetime Writes): 370
Mean Time Between Failures (MTBF) : 1.6 million hours
Uncorrectable Bit Error Rate (UBER): <1 sector per 10^15 bits
read
Warranty Period : 5 yrs
Package Specifications
Form Factor: M.2 22 x 80mm
Interface : PCIe 3.0 x4, NVMe
Advanced Technologies
Enhanced Power Loss Data Protection: No
Hardware Encryption: AES 256 bit
High Endurance Technology (HET): No
Temperature Monitoring and Logging: No
End-to-End Data Protection: Yes
Intel® Smart Response Technology: Yes
Intel® Rapid Start Technology: Yes
Intel® Remote Secure Erase: No
