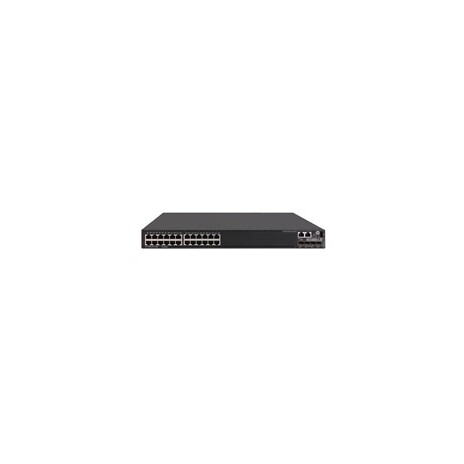

HPE FlexNetwork 5510 24G 4SFP+ HI 1-slot Switch JH145A RENEW
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

HPE FlexNetwork 5510 24G 4SFP+ HI 1-slot Switch JH145A RENEW

HPE FlexNetwork 5510 24G 4SFP+ HI 1-slot Switch Product 5510 24G 4SFP+ 1-slot HI Switch €4,821 5510 24G PoE+ 4SFP+ 1-slot HI Switch €4,876 5510 24G SFP 4SFP+ 1-slot HI Switch €8,914 5510 48G 4SFP+ 1-slot HI Switch €7,181 5510 48G PoE+ 4SFP+ 1-slot HI Switch €7,670 Part Number JH145A JH147A JH149A JH146A JH148A…
Kategorie: Switche
Kód: 3191991PN: JH145ARVýrobce: HPZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

HPE FlexNetwork 5510 24G 4SFP+ HI 1-slot Switch

Product

5510 24G 4SFP+ 1-slot HI Switch

€4,821

5510 24G PoE+ 4SFP+ 1-slot HI Switch

€4,876

5510 24G SFP 4SFP+ 1-slot HI Switch

€8,914

5510 48G 4SFP+ 1-slot HI Switch

€7,181

5510 48G PoE+ 4SFP+ 1-slot HI Switch

€7,670

Part Number

JH145A

JH147A

JH149A

JH146A

JH148A

Switch Type

Fixed Port

Fixed Port

Fixed Port

Fixed Port

Fixed Port

Management

Fully Managed

Fully Managed

Fully Managed

Fully Managed

Fully Managed

Routing / Switching

Layer 3 Advanced

Layer 3 Advanced

Layer 3 Advanced

Layer 3 Advanced

Layer 3 Advanced

Included Accessories

Included Accessories

N/A

N/A

N/A

N/A

N/A

Physical Properties

Dimensions

17.32(w) x 14.17(d) x 1.72(h) in

(44.00 x 36.00 x 4.37 cm)

(1U height)

17.32(w) x 18.11(d) x 1.72(h) in

(44 x 46 x 4.37 cm)

(1U height)

17.32(w) x 14.17(d) x 1.72(h) in

(43.99 x 35.99 x 4.37 cm)

(1U height)

17.32(w) x 14.17(d) x 1.72(h) in

(44.0 x 36 x 4.37 cm)

(1U height)

17.32(w) x 18.11(d) x 1.72(h) in

(43.99 x 46 x 4.37 cm)

(1U height)

Weight

16.53 lb (7.5 kg) shipping weight

27.56 lb (12.5 kg) shipping weight

17.64 lb (8 kg)

16.53 lb (7.5 kg) shipping weight

27.56 lb (12.5 kg) shipping weight

Port Types

LAN Ports

24 RJ-45 autosensing 10/100/1000 ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 8 support MACSec

24 RJ-45 autosensing 10/100/1000 PoE+ ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 8 support MACSec

N/A

48 RJ-45 autosensing 10/100/1000 ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 8 support MACSec

48 RJ-45 autosensing 10/100/1000 PoE+ ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 8 support MACSec

Dual Personality Ports

N/A

N/A

8 Combo GbE (SFP and RJ45) dual-personality 1000 Mbps port, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

N/A

N/A

SFP Ports

N/A

N/A

16 fixed Gigabit Ethernet SFP ports; Ports 1 - 8 support MACSec

N/A

N/A

SFP+ Ports

4 SFP+ 10GbE ports

(up to 2 more with optional module)

4 SFP+ 10GbE ports

(up to 2 more with optional module)

4 SFP+ fixed 1000/10000 SFP+ ports

(up to 2 more with optional module)

4 SFP+ 10GbE ports

(up to 2 more with optional module)

4 SFP+ 10GbE ports

(up to 2 more with optional module)

XFP Ports

N/A

N/A

N/A

N/A

N/A

X2 Ports

N/A

N/A

N/A

N/A

N/A

CX4 Ports

N/A

N/A

N/A

N/A

N/A

10GBASE-T Ports

up to 2 with optional module

up to 2 with optional module

up to 2 with optional module

up to 2 with optional module

up to 2 with optional module

QSFP+ Ports

up to 2 with optional module

up to 2 with optional module

up to 2 with optional module

up to 2 with optional module

up to 2 with optional module

Module Slots

1 port expansion module slot

1 port expansion module slot

1 port expansion module slot

1 port expansion module slot

1 port expansion module slot

Console Port

1 dual-personality (RJ-45 or USB micro-B) serial console port

1 RJ-45 out-of-band management port

1 USB 2.0

1 dual-personality (RJ-45 or USB micro-B) serial console port

1 RJ-45 out-of-band management port

1 USB 2.0

1 dual-personality (RJ-45 or USB micro-B) serial console port

1 RJ-45 out-of-band management port

1 USB 2.0

1 dual-personality (RJ-45 or USB micro-B) serial console port

1 RJ-45 out-of-band management port

1 USB 2.0

1 dual-personality (RJ-45 or USB micro-B) serial console port

1 RJ-45 out-of-band management port

1 USB 2.0

Power Supplies

Power supply slots

2 power supply slots

2 power supply slots

2 power supply slots

2 power supply slots

2 power supply slots

Power supply requirements

1 minimum power supply required (ordered separately)

1 minimum power supply required (ordered separately)

1 minimum power supply required (ordered separately)

1 minimum power supply required (ordered separately)

1 minimum power supply required (ordered separately)

Memory and Processor

Memory and Processor

2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash

2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash

2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash

2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash

2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash

Gigabit Module

N/A

N/A

N/A

N/A

N/A

10Gb Module

N/A

N/A

N/A

N/A

N/A

Management Module

N/A

N/A

N/A

N/A

N/A

Fabric Module

N/A

N/A

N/A

N/A

N/A

I/O Module

N/A

N/A

N/A

N/A

N/A

Mounting

Mounting

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

100 Mb Latency

N/A

N/A

N/A

N/A

N/A

1000 Mb Latency

< 5 µs

< 5 µs

< 5 µs

< 5 µs

< 5 µs

10 Gbps Latency

< 3 µs

< 3 µs

< 3 µs

< 3 µs

< 3 µs

40 Gbps Latency

N/A

N/A

N/A

N/A

N/A

Throughput

up to 214 Mpps

up to 214 Mpps

up to 214 Mpps

up to 250 Mpps

up to 250 Mpps

Switching Capacity

288 Gbps

288 Gbps

288 Gbps

336 Gbps

336 Gbps

Switch Fabric Speed

N/A

N/A

N/A

N/A

N/A

Routing Table Size

32768 entries (IPv4), 16384 entries (IPv6)

32768 entries (IPv4), 16384 entries (IPv6)

32768 entries (IPv4), 16384 entries (IPv6)

32768 entries (IPv4), 16384 entries (IPv6)

32768 entries (IPv4), 16384 entries (IPv6)

MAC Address Table Size

32768 entries

32768 entries

32768 entries

32768 entries

32768 entries

Electrical Characteristics

Description

N/A

N/A

N/A

N/A

N/A

Voltage

100 - 240 VAC, rated (90 - 264 VAC, max)

-48 to -60 VDC, rated (-36 to -72 VDC, max)

100 - 240 VAC, rated (90 - 264 VAC, max)

-48 to -60 VDC, rated (-36 to -72 VDC, max)

100-240 VAC

100 - 240 VAC, rated (90 - 264 VAC, max)

-48 to -60 VDC, rated (-36 to -72 VDC, max)

100 - 240 VAC, rated (90 - 264 VAC, max)

-48 to -60 VDC, rated (-36 to -72 VDC, max)

Current

N/A

N/A

[no data]

N/A

N/A

Frequency

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

Maximum Power Consumption

107 W (idle power 55 W)

650 W (idle power 67 W)

120 W (idle power 48 W)

150 W (idle power 70 W)

670 W (idle power 75 W)

Maximum Heat Dissipation

365 BTU/hr (385.08 kJ/hr), Ranges from 167 BTU/hr to 392 BTU/hr, depending on power supply configuration

2217 BTU/hr (3599.66 kJ/hr), Ranges from 228 BTU/hr to 3412 BTU/hr, depending on power supply configuration

409 BTU/hr (431.49 kJ/hr), Heat dissipation ranges from 163 BTU/hr to 498 BTU/hr, depending on power supply configuration

419 BTU/hr (442.04 kJ/hr), Ranges from 201 BTU/hr to 443 BTU/hr, depending on power supply configuration

2286 BTU/hr (2411.73 kJ/hr), Heat dissipation ranges from 256 BTU/hr to 6142 BTU/hr, depending on power supply configuration

PoE power

N/A

740 W PoE+

PoE+ power range is from 450W to 740W. PoE+ power is the power supplied by the internal

power supply(ies). It is dependent on the type and quantity of power supplies. Device supports

1 or 2 internal modular power supplies.

N/A

N/A

1440 W PoE+

PoE+ power range is from 450W to 1440W. PoE+ power is the power supplied by the internal

power supply(ies). It is dependent on the type and quantity of power supplies. Device supports

1 or 2 internal modular power supplies.

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

For DC input power, Idle Power is 38W and Max is 68W. DC Max input current is 8A. Units are supplied without a power supply. Customer must buy 1 or 2 JD362A(AC) or JD366A (DC) power supply.

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Management

Management

IMC - Intelligent Management Center, command-line interface, Web browser, SNMP Manager

IMC - Intelligent Management Center, command-line interface, Web browser, SNMP Manager

IMC - Intelligent Management Center, command-line interface, Web browser, SNMP Manager

IMC - Intelligent Management Center, command-line interface, Web browser, SNMP Manager

IMC - Intelligent Management Center, command-line interface, Web browser, SNMP Manager

Parametry

FunkceL3
ManagementSNMP/RMON
Maximální počet portů24
Počet PoE Out portů0
Počet portů Combo0
Počet portů LAN0
Počet portů QSFP+0
Počet portů QSFP280
Počet portů SFP280
Počet SFP portů0
Počet SFP+ portů4
Podporované standardy PoEŽádný
PoE budget (W)0
ProvedeníRack mounted 19"
Přenosová rychlost LAN (Mb/s)0
TechnologieGigabit Ethernet + 10 GbE porty
VentilátorAno
Vlastnosti switcheRozšiřitelnost
