B450 Gaming X (rev. 1.0)
AMD B450 Gaming Motherboard with Hybrid Digital PWM,
NVMe PCIe Gen3 x4 M.2, RGB FUSION 2.0, GIGABYTE Gaming LAN with
Bandwidth Management, CEC 2019 ready
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/
2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with
Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics
Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- HDMI, DVI-D Ports for Multiple Display
- Ultra-Fast NVMe PCIe Gen3 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard design
- RGB FUSION 2.0 with Addressable RGB & RGB LED Strips
support
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth
Management
- Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan
Headers with FAN STOP
- APP Center Including EasyTune™ and Cloud Station™
Utilities
- CEC 2019 Ready, Save Power with a Simple Click
TECHNICAL SPECIFICATIONS
CPU |
AM4 Socket: Supports AMD 3rd Gen
Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™
Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™
with Radeon™ Vega Graphics Processors
(Please refer "CPU Support List" for more information.) |
Chipset |
AMD B450 |
Memory |
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system
memory
- Dual channel memory architecture
- Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz
memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
(operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
|
Audio |
- Realtek ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
LAN |
- Realtek GbE LAN chip (10/100/1000 Mbit)
|
Multi-Graphics Technology |
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™
technologies
|
Expansion Slots |
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card
is to be installed, be sure to install it in the PCIEX16 slot.
** Actual support may vary by CPU.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The
PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is
populated. The PCIEX4 slot operates at up to x4 mode when the
PCIEX1_2 is empty.
- 2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0
standard.)
|
Onboard Graphics |
- Integrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.2.
** Actual support may vary by CPU.
Maximum shared memory of 16 GB
|
Storage Interface |
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110
PCIe 3.0 x4/x2 SSD support)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices
for the M.2 and SATA connectors.
|
USB |
Chipset:
- 2 x USB 3.1 Gen 1 ports available through the internal USB
header
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports
available through the internal USB header)
Integrated in the APU:
- 4 x USB 3.1 Gen 1 ports on the back panel
|
Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x M.2 Socket 3 connector
- 6 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 3 x system fan headers
- 1 x CPU cooler LED strip/RGB LED strip header
- 1 x RGB LED strip header
- 2 x addressable LED strip headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.1 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module (TPM) header (2x10 pin, for the
GC-TPM2.0 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
|

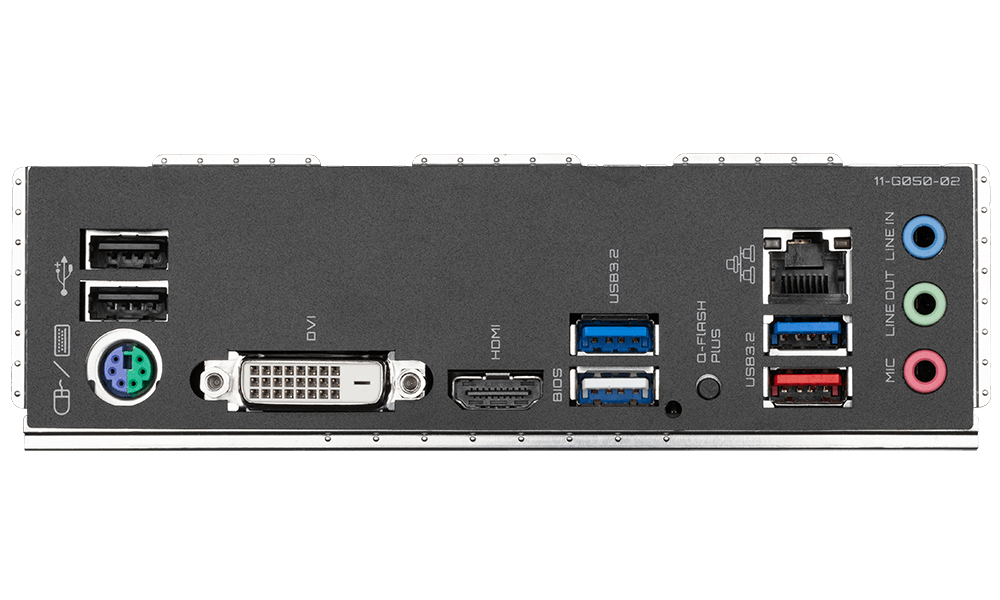

Back Panel Connectors |
- 1 x PS/2 keyboard/mouse port
- 1 x DVI-D port
- 1 x HDMI port
- 4 x USB 3.1 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 6 x audio jacks
|
I/O Controller |
iTE I/O Controller Chip |
H/W Monitoring |
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend
on the cooler you install.
|
BIOS |
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features |
- Support for APP Center
* Available applications in APP Center may vary by motherboard
model. Supported functions of each application may also vary
depending on motherboard specifications.
3D OSD
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
- Support for Q-Flash
- Support for Xpress Install
|
Bundled Software |
- Norton Internet Security (OEM version)
- Realtek 8118 Gaming LAN Bandwidth Control Utility
|
Operating System |
- Support for Windows 10 64-bit
- Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle
Ridge & Summit Ridge CPU.
* Please download the "Windows USB Installation Tool" from
GIGABYTE's website and install it before installing Windows 7.
|
Form Factor |
- ATX Form Factor; 30.5cm x 23.5cm
|
Remark |
- Due to different Linux support condition provided by chipset
vendors, please download Linux driver from chipset vendors' website
or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to
support Win9X/ME/2000/XP. If drivers are available from the
vendors, we will update them on the GIGABYTE website.
|
