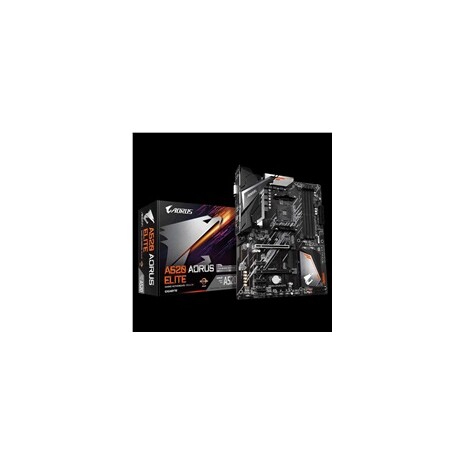

AMD A520 AORUS Motherboard with Pure Digital VRM
Solution, ALC1200 Audio, GIGABYTE Gaming LAN with Bandwidth
Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash
Plus, Pre-installed IO Shield Design
- Supports 3rd Gen AMD Ryzen™ Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on)
MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- AMP-UP Audio with ALC1200 and High End Audio Capacitors
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth
Management
- HDMI, DVI-D Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan
Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and
Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
TECHNICAL SPECIFICATIONS
CPU |
AMD Socket AM4, support for: 3rd
Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with
Radeon™ Graphics processors
(Please refer "CPU Support List" for more information.) |
Chipset |
AMD A520 |
Memory |
1. 4 x DDR4 DIMM sockets supporting up
to 128 GB (32 GB single DIMM capacity) of system memory
2. 3rd Gen AMD Ryzen™ Processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.)
/ 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.)
/ 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
memory modules
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.) |
Onboard Graphics |
Integrated in the 3rd Generation AMD
Ryzen™ with Radeon™ Graphics processors:
1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB |
Audio |
Realtek ALC1200 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out |
LAN |
Realtek GbE LAN chip (1000 Mbit/100
Mbit) |
Expansion Slots |
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
(PCIEX16)
* For optimum performance, if only one PCI Express graphics card is
to be installed, be sure to install it in the PCIEX16 slot. |
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2
(PCIEX2)
3 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2,
PCIEX1_3)
* The PCIEX1_2 and PCIEX1_3 slots share bandwidth with the PCIEX2
slot. The PCIEX2 slot becomes unavailable when a device is
installed in the PCIEX1_2 or PCIEX1_3 slot. |
Storage Interface |
CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA
and PCIe 3.0 x4/x2 SSD support) |
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10 |
USB |
CPU:
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
3 x USB 3.2 Gen 1 ports on the back panel |
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB
header
4 x USB 2.0/1.1 ports available through the internal USB
headers |
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel |
Internal I/O Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the
GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button |
Back Panel Connectors |
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks |
I/O Controller |
iTE I/O Controller Chip |
H/W Monitoring |
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend
on the cooler you install. |
BIOS |
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
1. Support for APP Center
* Available applications in APP Center may vary by motherboard
model. Supported functions of each application may also vary
depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install |
Bundled Software |
Norton Internet Security (OEM
version)
Realtek 8118 Gaming LAN Bandwidth Control Utility |
Operating System |
Support for Windows 10 64-bit |
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
Remark |
Due to different Linux support
condition provided by chipset vendors, please download Linux driver
from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to
support Win9X/ME/2000/XP. If drivers are available from the
vendors, we will update them on the GIGABYTE website. |
