| Formát | 2U |
|---|---|
| Provedení serveru | GPU server |

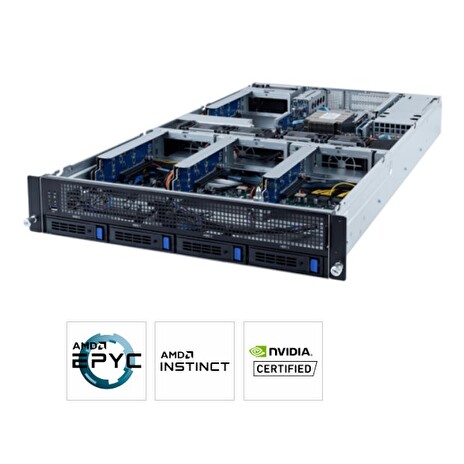

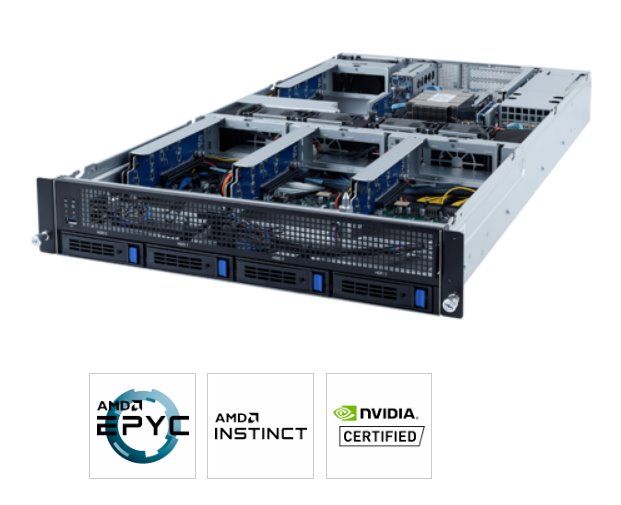

GIGABYTE G242-Z11 2U 4GPU server SP3, 8x DDR4 ECC R, 4x 3.5 SATA + 2x 2.5 SATA/U.2, 1600W (plat), 2x LAN, IPMI
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 820
Motherboard
MZ12-HD3
CPU
AMD EPYC™ 7002 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 280W
Compatible with AMD EPYC™ 7001 series processor family
Socket
Socket SP3
Chipset
System on Chip…
Kategorie: Servery
Kód: 3163470PN: 6NG242Z11MR-00Výrobce: GIGABYTEZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce
Popis produktu
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 820
438 x 87.5 x 820
Motherboard
MZ12-HD3
CPU
AMD EPYC™ 7002 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 280W
Compatible with AMD EPYC™ 7001 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 280W
Compatible with AMD EPYC™ 7001 series processor family
Socket
Socket SP3
Chipset
System on Chip
Memory
8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz
LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side: 4 x 3.5" SATA hot-swappable HDD/SSD bays
2.5" HDD/SSD supported
SATA devices supported only
Rear side: 2 x 2.5" Gen4 U.2/SAS/SATA hybrid hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
2.5" HDD/SSD supported
SATA devices supported only
Rear side: 2 x 2.5" Gen4 U.2/SAS/SATA hybrid hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
SATA
Supported
SAS
Depend on SAS Card
RAID
-
Peripheral Drives
-
Expansion Slots
4 x PCIe x16 slots (Gen4 x16 bus) for GPU cards
Riser Card CRSG120:
- 1 x PCIe x16 slot (Gen4 x16 or x8 bus), Low profile, half-length
- 1 x PCIe x8 slots (Gen4 x0 or x8 bus), Low profile, half-length
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Riser Card CRSG120:
- 1 x PCIe x16 slot (Gen4 x16 or x8 bus), Low profile, half-length
- 1 x PCIe x8 slots (Gen4 x0 or x8 bus), Low profile, half-length
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Internal I/O
1 x TPM header
1 x Front panel header
1 x Front panel header
Front I/O
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O
2 x USB 3.0
1 x VGA
1 x MLAN
1 x ID LED
1 x VGA
1 x MLAN
1 x ID LED
Backplane I/O
Front side_CBPG041: 4 x SATA/SAS ports
Rear side_CBP2021: 2 x NVMe/SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s, SAS 12Gb/s or PCIe x4 per port
Rear side_CBP2021: 2 x NVMe/SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s, SAS 12Gb/s or PCIe x4 per port
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
2 x 1600W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
80 PLUS Platinum
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
Weight
Net Weight: 18.5 kg
Gross Weight: 29 kg
Gross Weight: 29 kg
System Fans
5 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Content
1 x G242-Z11
1 x CPU heatsink
1 x Rail kit
1 x CPU heatsink
1 x Rail kit
Part Numbers
Barebone with rail kit: 6NG242Z11MR-00
- Motherboard: 9MZ12HD3NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_4-port: 9CBPG041NR-00
- Back plane board_2-port: 9CBP2021NR-00
- Riser Card: 9CRSG02CNR-00
- Front panel board: 9CFP1000NR-00
- Power supply: 25EP0-216007-L0S
- Motherboard: 9MZ12HD3NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_4-port: 9CBPG041NR-00
- Back plane board_2-port: 9CBP2021NR-00
- Riser Card: 9CRSG02CNR-00
- Front panel board: 9CFP1000NR-00
- Power supply: 25EP0-216007-L0S
