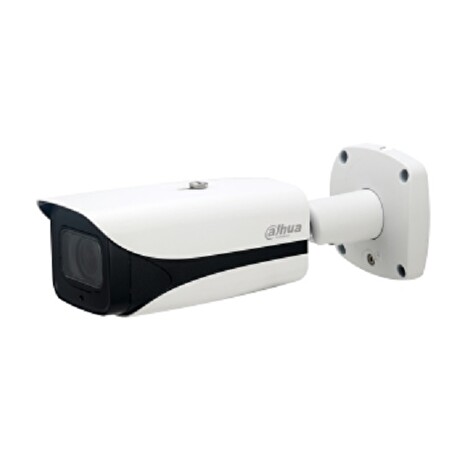

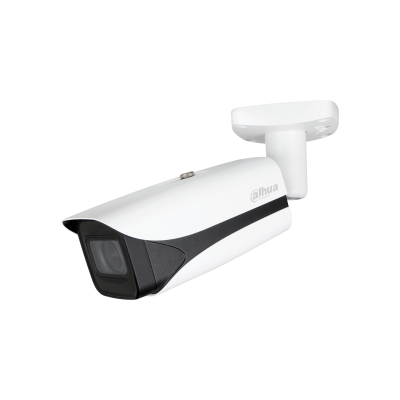

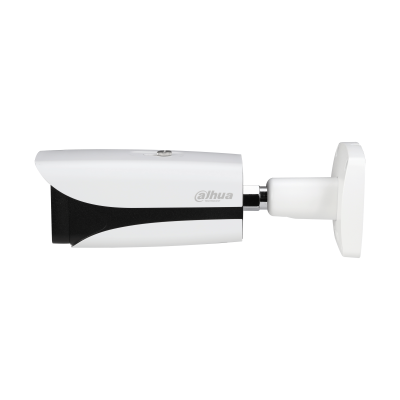

5MP IR Vari-focal Bullet WizMind Network Camera
5-MP 1/2.7" CMOS image sensor, low luminance, and high definition
image.
Outputs max. 5MP (2960×1668) @25/30 fps.
Built-in IR LED, and the max. illumination distance is 60 m.
ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after
filter, flexible coding, applicable to various bandwidth and
storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes.
With deep learning algorithm, it supports: video metadata, smart
sound detection, IVS, face detection, smart object detection, and
people counting, etc.
Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro
SD card, built-in MIC.
12 VDC/PoE power supply; ePoE.
IP67 and IK10 protection.
SMD 3.0
Camera
Image Sensor
1/2.7" CMOS
Max. Resolution
2960 (H) × 1668 (V)
ROM
4 GB
RAM
1 GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.0009 lux@F1.5(Color, 30 IRE)
0.0005 lux@F1.5(B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
56 dB
Illumination Distance
Up to 60 m (196.85 ft) (IR)
Illuminator On/Off Control
Auto;Zoomprio;Manual
Illuminator Number
4 (IR LED)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type
Motorized vari-focal
Lens Mount
14
Focal Length
2.7 mm–13.5 mm
Max. Aperture
F1.5
Field of View
H: 114°–32°; V: 58°–17°; D: 138°–36°
Iris Control
Auto
Close Focus Distance
0.8 m (2.62 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
W
64.0 m (209.97 ft)
25.6 m
(83.99 ft)
12.8 m
(41.99 ft)
6.4 m
(20.99 ft)
T
210.0 m (688.98 ft)
84.0 m
(275.89 ft)
42.0 m
(137.80 ft)
21.0 m
(68.90 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system
(EN-62676-4) for defining the ability of a person viewing the video
to distinguish persons or objects within a covered area. The
numbers in this table do not reflect intelligent function
distances. For intelligent function distances, refer to
installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)
Intrusion, tripwire, fast moving (the three functions support the
classification and accurate detection of vehicle and human);
loitering detection, people gathering, and parking detection
Smart Object Detection
Smart abandoned object; smart missing object
SMD
SMD 3.0
AcuPick
Uses deep learning algorithms and works with back-end devices to
accurately match targets, such as people and motor vehicles, and
search through live and recorded videos to quickly locate targets.
AI SSA
Yes
Face Detection
Face detection; track; snapshot; snapshot optimization; optimal
face snapshot upload; face enhancement; face exposure; face
attributes extraction including 6 attributes and 8 expressions;
face snapshot set as face, one-inch photo or custom; snapshot
strategies (real-time snapshot, quality priority and optimization
snapshot); face angle filter; optimization time setting.
People Counting
Tripwire people counting, generating and exporting report
(day/week/month/year); people counting in area and queue
management; generating and exporting report (day/week/month); 4
rules can be set for tripwire, people counting in area and queue
management.
Heat Map
Yes
Video Metadata
Motor vehicle, non-motor vehicle, face, human body detection;
track; snapshot; snapshot optimization; optimal face snapshot
upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo
and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top
type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat
and umbrella. Face attributes: gender, age, expressions, glasses,
face mask and beard.
Smart Search
Work together with Smart NVR to perform refine intelligent search,
event extraction and merging to event videos
Smart Sound Detection
Yes
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub
stream)
Smart Codec
Smart H.265+; Smart H.264+
AI Coding
AI H.265; AI H.264
Video Frame Rate
Main stream: 2960 × 1668@(1–25/30 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for
multiple streams, the values will be subjected to the total
encoding capacity.
Stream Capability
4 streams
Resolution
5M (2960 × 1668); 5M (2880 × 1620); 4M (2688 × 1520); 3.6M (2560 ×
1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080);
1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA
(640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 kbps–16384 kbps; H.265: 12 kbps–11776 kbps
Day/Night
Auto(ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
Scene Self-adaptation (SSA)
Yes
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Image Stabilization
Electronic Image Stabilization (EIS)
Defog
Yes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution
and lower)
Mirror
Yes
Privacy Masking
8 areas
LDC
Yes
Audio
Built-in MIC
Yes
Audio Compression
G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP
conflict; illegal access; motion detection; video tampering;
tripwire; intrusion; fast moving; abandoned object; missing object;
loitering detection; people gathering; parking detection; scene
changing; audio detection; voltage detection; external alarm; face
detection; video metadata; SMD; people counting in area; stay
detection; people counting; people number error detection; queue
people number alarm; queue time alarm; security exception; defocus
detection
Network
Network Port
RJ-45 (10/100 Enhancement Base-T)
SDK and API
Yes
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP;
SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS;
SAMBA; PPPoE; SNMP; P2P
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI;
User/Host
20 (Total bandwidth: 80 M)
Storage
FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser
IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later
Management Software
SmartPSS Lite; DSS; DMSS
Mobile Client
iOS; Android
Cyber Security
Configuration encryption; trusted execution; Digest; security logs;
WS
