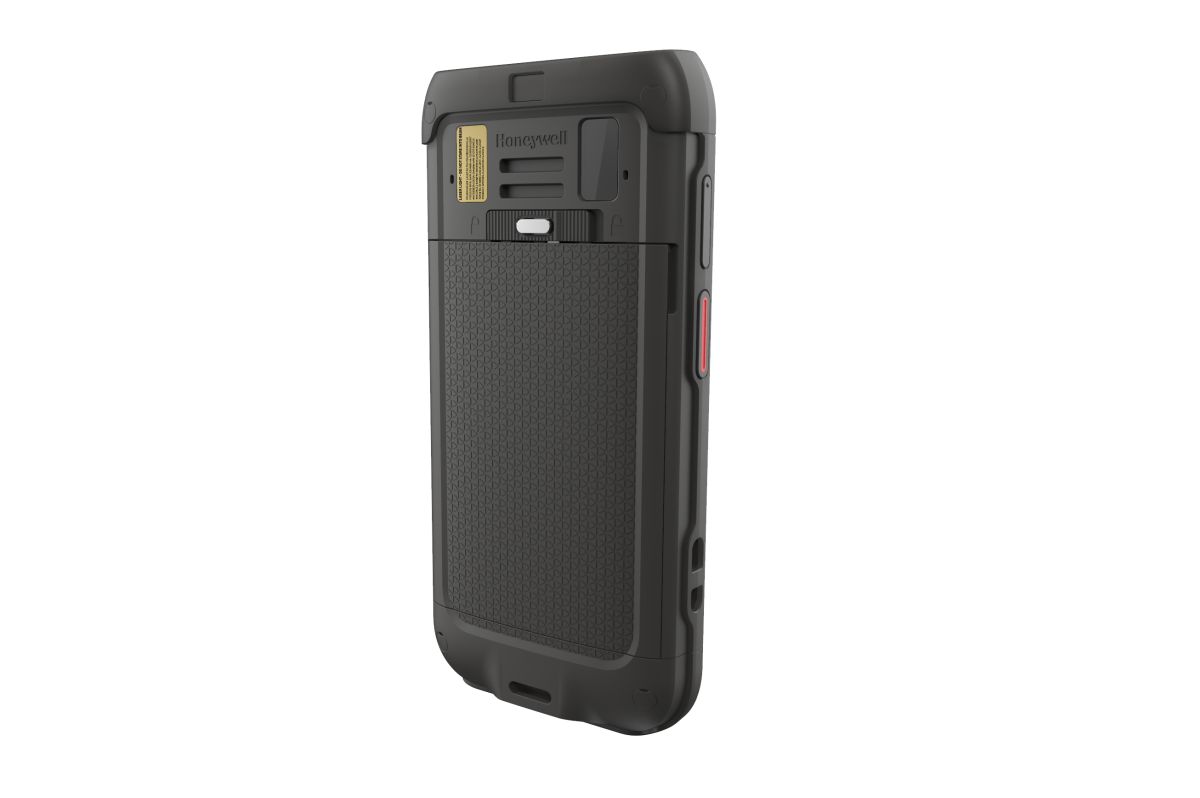

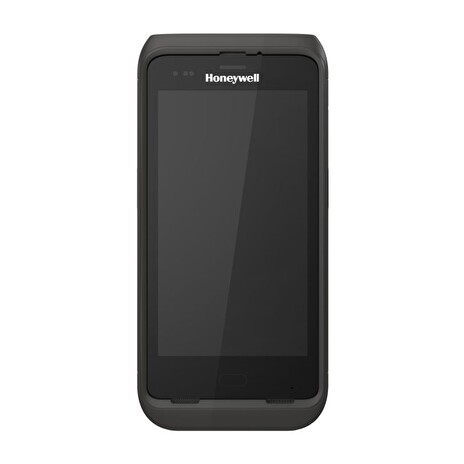

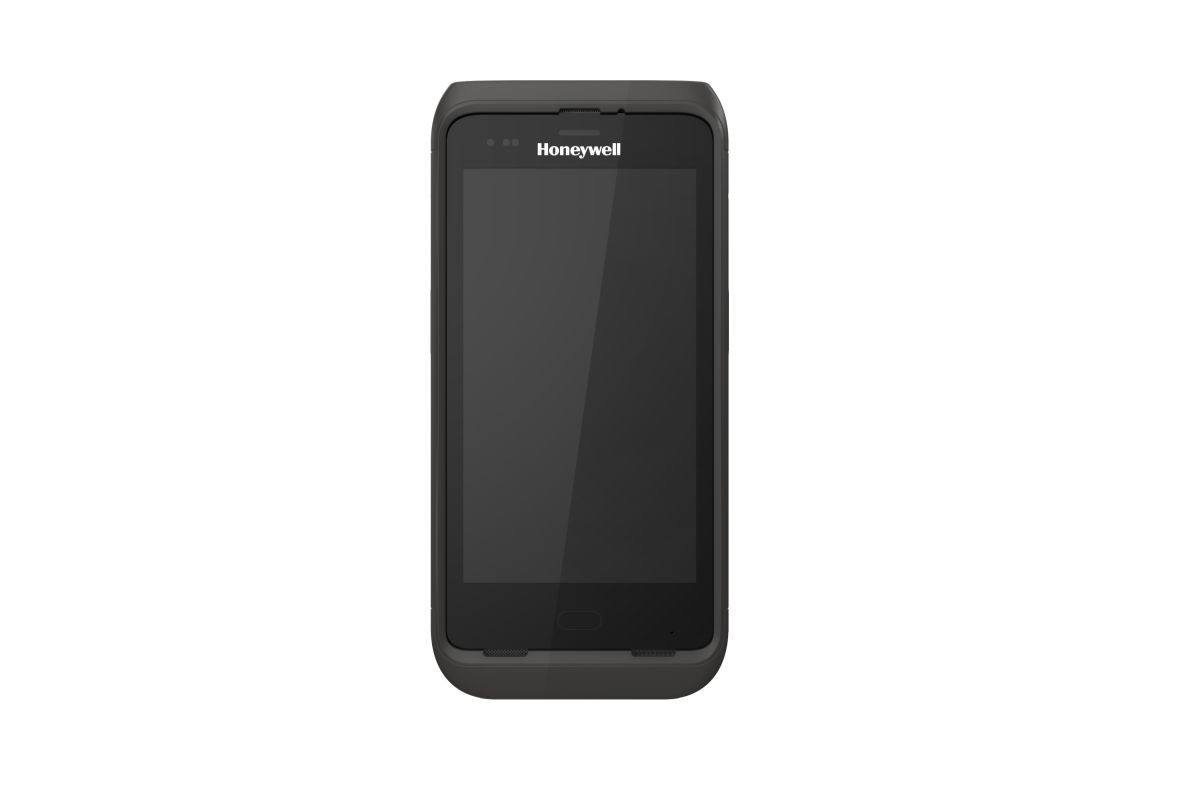

CT45XP - WLAN, 6G/65G, IP68a65, BT

MECHANICAL

Dimensions:163 mm x 79 mm x 19.2 mm
Weight:282 g (9.9oz) with battery pack
Display Size:12.7 cm (5.0 in)
Resolution:Full High Definition (1920 x1080) (CT45XP);High-Definition (1280 x720) (CT45)
Backlight:LED
Touch Panel:Rugged multi-touch capacitive touch panel, optically-bonded for extra durability. Glove, stylus and rain modes supported (CT45 XP). Water droplet rejection with screen protector mode. Covered with Gorilla Glass 5 for increased resistance to drops.
Hard Keys:Volume up/down key, left/right scan, power button, Push to Talk button.
Soft Key:On-screen scan button, reprogrammable into an application quicklaunch key.
Audio:3.5 mm jack**, PTT, VoIP ready, speaker, HAC-compliant.
Three microphones with noise cancellation
I/O Ports:Durable, flat IO connector, USB Type C connector.
USB OTG supported via I/O ports
USB 3.0 is supported via USB Type C
Universal Dock Platform:Compatible

ENVIRONMENTAL

Operating Temperature:-20°C to +50°C (-4°F to +122°F)
Storage Temperature:-30°C to +70°C (-22°F to +158°F)
Humidity:5% to 95% (non-condensing)
Drop:Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H; multiple 2.4 m (8 ft) drops to concrete with protective boot at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H
Tumble:Exceeds 1,500 times at 1m (3.28 ft) per IEC 60068-2-32 specification
ESD:±8 kV direct; ±15 kV air
Environmental Sealing:Independently certified to meet IP68 and IP65 standards for moisture and particle intrusion
Thermal Shock:-30°C to +70°C

SYSTEM ARCHITECTURE

Processor:Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
Operating System:Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility
Memory:6 GB DDR4x RAM, 64 GB UFS
Flash (CT45XP);4 GB DDR4x RAM, 64 GB UFS Flash (CT45)
Camera:13-megapixel rear camera; 8-megapixel front-facing camera.
Sensors:Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, barometer (Model dependent), eCompass (Model dependent), hall sensor, high gravity sensor
SIM:
*CT45 XP:Available with configurations of eSIM and Nano SIM or configurations of 2 Nano SIMs
*CT45:Available with configurations of 2 Nano SIMs
Storage Expansion:User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)
Battery:Li-Ion, 3.85 V, 4020 mAh; smart battery with integrated diagnostic tools
Battery warm swap:Available on CT45 XP
Charging:Quick Charge 3.0 compliant; Less than 3 hours to be fully charged.
Hours of Operation:12+ hours
Decode Capabilities:Honeywell FlexRange, Honeywell S0703 (1D/2D barcode symbologies), Honeywell SDKs for Android
Application Software:Honeywell Mobility Edge Utilities and Demos

WARRANTY

One-year factory warranty

WIRELESS CONNECTIVITY

WWAN:WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU)
AT&T FirstNet Compliant
LTE Advanced Support
Up to 390 Mbps CAT13 LTE downlink
Up to 75 Mbps CAT5 LTE uplink
LTE- Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71
UMTS/HSPA+ (3G)- Bands 1, 2, 4, 5, 6, 8, 9, 19
GSM:850, 900, 1800, 1900 (Quad Bands)
WLAN:Wi-Fi certified
CT45 XP WLAN:IEEE 802.11 a/b/g/n/ac/ ax and 2*2 MU-MIMO
All other configurations:IEEE 802.11 a/b/g/n/ac
All SKUs:802.11 d/e/h/i/k/r/v/u/w/mc
WLAN Security:OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)
Supported EAP:TLS, PEAP, TTLS, PWD, LEAP, CCX compliant (except CT45XP WLAN)
Bluetooth®:V5.1 Bluetooth and BLE
2nd BLE:Available on CT45 XP
Bluetooth Profiles:HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT
NFC:Integrated NFC reader, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F)
VPN:IPSec V4/L2TP, PPTP
Push to Talk (PTT):Supported
GPS Supported Protocols:Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo, and Beidou, Assisted GPS

*Specifications are subject to change
without notice.
*3.5mm jack is available on Wi-Fi
version only.
