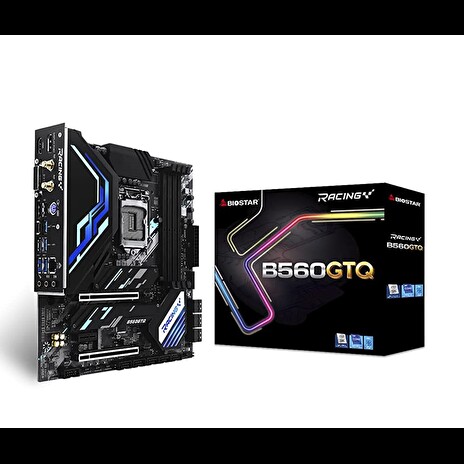

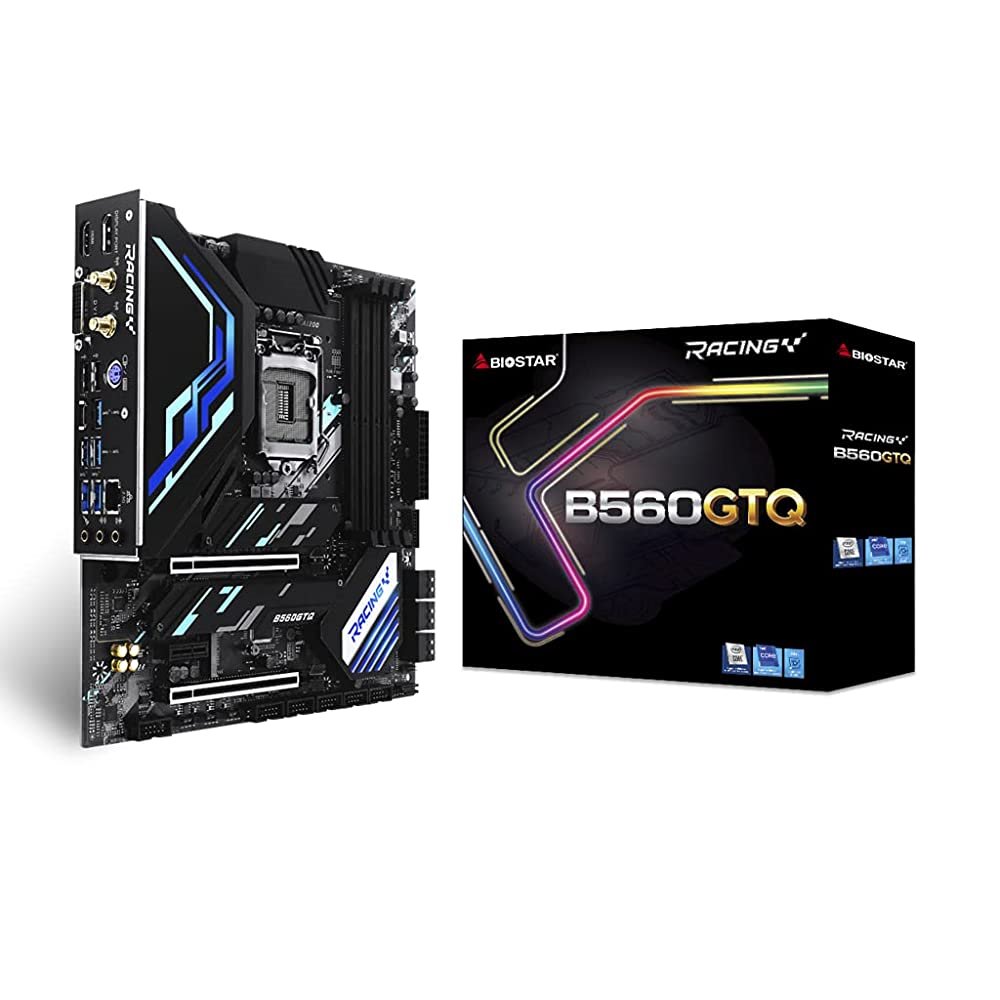

Chipset |
Intel B560 |
CPU SUPPORT |
Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3
processors and Intel Pentium processors/ Intel Celeron processors
in the LGA1200 package
Supports Intel Turbo Boost Max 3.0 Technology
* Please refer to www.biostar.com.tw for CPU support list. |
MEMORY |
Supports Dual Channel DDR4 4000+(OC)/ 3866(OC)/ 3800(OC)/
3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list. |
INTEGRATED VIDEO |
By CPU model
Supports DX12
Supports HDCP |
STORAGE |
-- Total supports 2 x M.2 socket and 6x SATA III (6Gb/s)
ports
6 x SATA III Connectors (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 &
Intel Rapid Storage Technology
1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY):
Supports M.2 Type 2280 SSD module
Supports PCI-E 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD
Support 11th Gen processor only
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_1):
Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module
Supports PCI-E 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s)
SSD
Supports Intel Rapid Storage Technology and Intel Optane
Technology
* M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen
Rocket Lake-S CPU only.
* When using SATA SSD module on M.2 slot(M2_PCIEG3_32G_SATA_RST_1),
the SATA_6 connector will be disabled. |
LAN |
Realtek RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex
capability |
AUDIO CODEC |
ALC1220
7.1 Channels, High Definition Audio, Hi-Fi(Front) |
USB |
1 x USB 3.2 (Gen2x2) Type-C port (1 on rear I/O)
2 x USB 3.2 (Gen2) ports (2 on rear I/Os)
5 x USB 3.2(Gen1) ports (3 on rear I/Os and 2 via internal
headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |
EXPANSION SLOT |
1 x PCIe 3.0 x 1 Slot
1 x PCIe 4.0 x 16 Slot (x16 mode)
1 x PCIe 3.0 x 16 Slot (x4 mode)
* According to different CPUs will have different speeds.
* PCIe 4.0 speed only for INTEL 11th Gen CPUs. |
REAR I/O |
2 x WIFI Antenna Ports
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI Port (HDMI2.0)
1 x DP Port
1 x DVI-D Port
1 x USB 3.2 (Gen2x2) Type-C Port
2 x USB 3.2 (Gen2) Ports
3 x USB 3.2 (Gen1) ports
2 x USB 2.0 ports
1 x 2.5 GbE LAN port
3 x Audio Jack |
INTERNAL I/O |
6 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth
module and Intel® CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1)
ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
3 x System Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
1 x Thunderbolt 3 Header
2 x LED Header (5V)
1 x LED Header (12V)
1 x IO LED Header
1 x SB LED Header
* M.2 (E key) Wi-Fi card is not provided |
H/W MONITORING |
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring |
DIMENSION |
Micro ATX Form Factor Dimension: 24.4 cm x 24.4cm ( W x L
) |
OS SUPPORT |
Supports Windows 10(64bit)
?Biostar reserves the right to add or remove support for any OS
with or without notice. |
BUNDLE SOFTWARE |
Racing GT Utility
BullGuard |
ACCESSORIES |
4 x SATA Cable
1 x DVD Driver
1 x Quick Guide |
FEATURES |
VIVID LED DJ
M.2 Cooling Protection
Tweak Tech
BIOS-Flasher
A.I FAN
LED ROCK ZONE
RGB Memory Sync
BIOSTAR Flash
BIOS EZ Mode /Advanced Mode
Intel Optane technology |
Caution!! The specification and pictures are
subject to change without notice! |
