Počítače a kancelář  Počítačové komponenty  Základní desky  Biostar A320MH, mATX, soc. AMD AM4, A320, DDR4

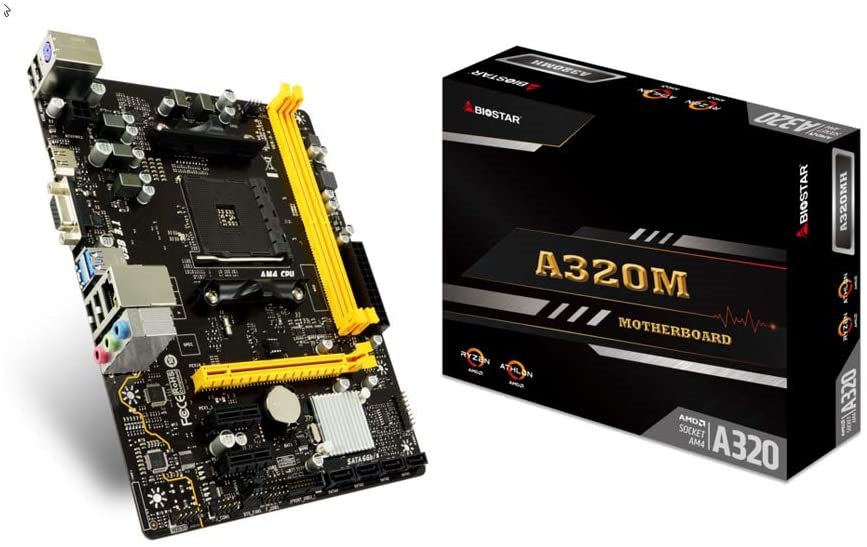

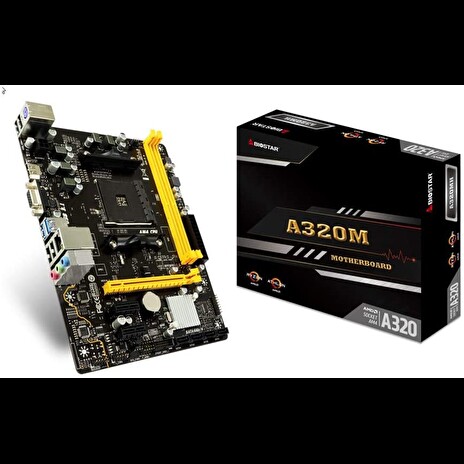

Biostar A320MH, mATX, soc. AMD AM4, A320, DDR4
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Biostar A320MH, mATX, soc. AMD AM4, A320, DDR4

Chipset AMD A320 CPU SUPPORT Supports AMD AM4 Socket for 3rd , 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/7th Gen A-Series/Athlon X4 Processors MEMORY Support Dual Channel DDR4 2933/2667/2400/2133/1866 MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB…
Kategorie: Základní desky
Kód: 3164722PN: A320MHZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

Chipset AMD A320
CPU SUPPORT Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega
Graphics/Athlon with Radeon Vega Graphics/7th Gen A-Series/Athlon X4 Processors
MEMORY Support Dual Channel DDR4 2933/2667/2400/2133/1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 8/16 GB DDR4 module
?DDR4 - 2933 only for AMD Ryzen CPU
?DDR4 speed depends on CPU type
?Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connectors (6Gb/s)
Support SATA RAID: 0,1,10
LAN Realtek RTL 8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC Realtek ALC887
7.1 Channels, High Definition Audio
USB 4 x USB 3.2 Gen1 ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT 2 x PCIe 2.0 x1 Slots
1 x PCIe 3.0 x16 Slot (When using APU, the bandwidth is x8 speed)
REAR I/O 1 x PS/2 Keyboard / Mouse
1 x VGA Port
1 x HDMI Port
1 x LAN port
2 x USB 3.2 Gen1 (5Gb/s) Ports
4 x USB 2.0 Ports
3 x Audio Jack
INTERNAL I/O 4 x SATA III 6Gb/s Connectors
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 (5Gb/s) Header (each header supports 2 USB 3.2 Gen1 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x COM Serial Header
1 x Clear CMOS Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 22.6cm x 17.4cm ( W x L )
OS SUPPORT Supports Windows 7(64bit) for Bristol / Summit /Pinnacle Ridge only
?Supports Windows 10(64bit)
?BIOSTAR reserves the right to add or remove support for any OS with or without notice
BUNDLE SOFTWARE BullGuard
Smart Speed LAN(Windows 7 only)
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports 100% Solid capacitor
BIOS-Flasher
Supports BIOS Online Update
Caution!! The specification and pictures are subject to change without notice!
