ASUS RT-AX86U Pro
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

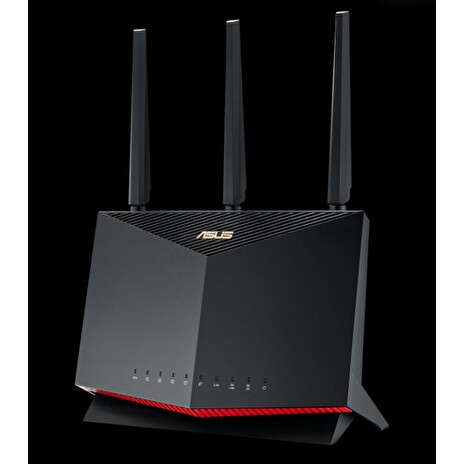

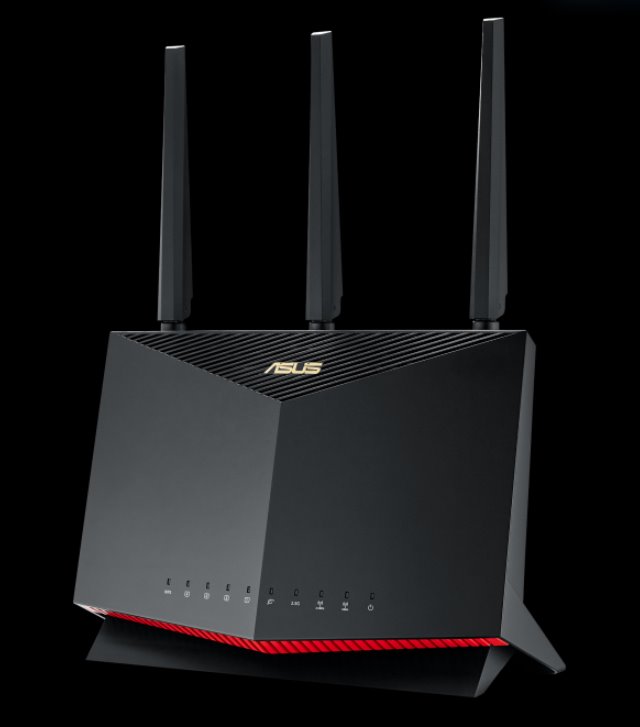

ASUS RT-AX86U Pro

AX5700 Dual Band WiFi 6 Gaming Router, PS5 compatible, Mobile Game Mode, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Upgraded Parental Controls, 2.5G Port, Gaming Port, Adaptive QoS, Port Forwarding High-Efficiency WiFi 6 – Ultrafast WiFi 6 dual-band router boosts speed up to 5700 Mbps, with 160 MHz channels for better efficiency and…
Kategorie: Síťové prvky
Kód: 3598814PN: 90IG07N0-MO3B00Výrobce: ASUSZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

AX5700 Dual Band WiFi 6 Gaming Router, PS5 compatible, Mobile Game Mode, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Upgraded Parental Controls, 2.5G Port, Gaming Port, Adaptive QoS, Port Forwarding
High-Efficiency WiFi 6 – Ultrafast WiFi 6 dual-band router boosts speed up to 5700 Mbps, with 160 MHz channels for better efficiency and throughput
Mobile Game Mode – Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app
Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage
A Safer Browsing Experience – Block undesirable content with ASUS Safe Browsing, and protect your kids online by filtering explicit content from search results.
Enhanced Security Anywhere – Protect your home network with a free lifetime subscription to AiProtection Pro, powered by Trend Micro™. And when away from home, ASUS Instant Guard gives you a one-click sharable secure VPN.

Model
RT-AX86U Pro
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX5700 ultimate AX performance : 861+4804 Mbps
AX technology
Yes
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 450 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna
External antenna x 3
Internal PCB antenna x 1
Transmit/Receive
2.4GHz 3x3
5GHz 4x4
Processor
2.0GHz quad-core processor
Memory
256 MB Flash and 1 GB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz / 5 GHz
Ports
RJ45 for 10/100/1000 BaseT for WAN x 1
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)
2.5G/1Gbps multi-Gig port (configurable)
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen1 x1, 2.0 x1
Button
WPS Button, Reset Button, Power Switch, LED on/off Button
LED Indicator
Power x 1
2.4GHz x 1
5GHz x 1
2.5G Port x 1
WAN x 1
LAN x 4
WPS x 1
Power Supply
19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current or
12 V with max.3 A current / 19.5 V with max. 2.31 A current
Package content
RT-AX86U Pro WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
814.5 g
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Router APP
ASUS Router APP
Game
Game Boost / Acceleration
Alexa
Support Alexa skill
AiProtection
AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control
Parental Control
Parental Control Customized Internet schedule
Maximum Parental Control profile : 64
Maximum Parental Control content filter rule : 64
Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history
Wireless
IPv6
MU-MIMO
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
Let's Encrypt
Safe browsing
DNS-over-TLS
LAN
DHCP Server
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 64
VPN
Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
Administration
Operating mode : Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
SSH
Wake on LAN (WOL)
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update

Parametry

TypNení
Rychlost ethernetu1 Gbit
TypWi-Fi
VPNAno
Wi-FiAno
Rychlost přenosu10/100/1000
Pásmo2,4 GHz + 5 GHz dual
Podpora PoENe
PoužitíRouter
Rychlost přenosu Wi-FiAC5400
VýrobceAsus
