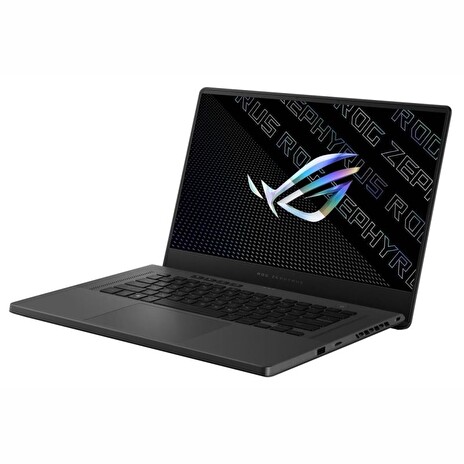

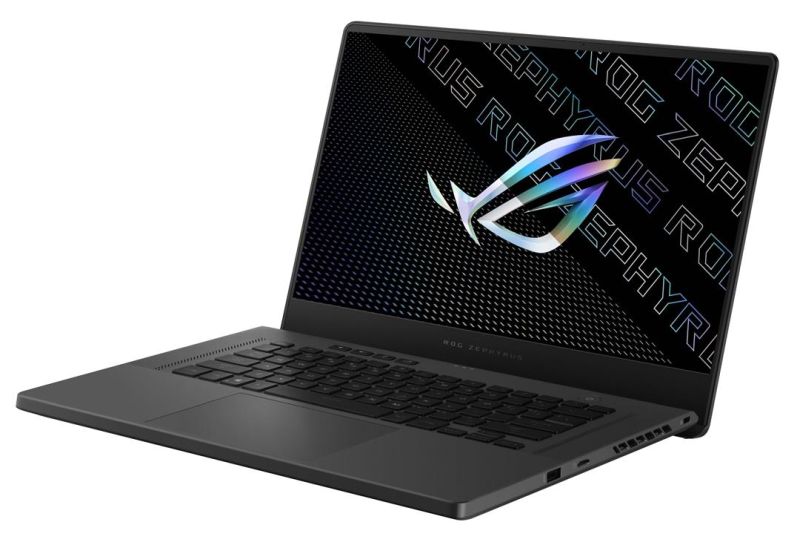

Marketing Name ROG Zephyrus G15
Color Eclipse Gray
Dimension (W x D x H) 35.5 x 24.3 x 1.99 ~ 1.99 cm
Weight 1.90 Kg
Processor AMD Ryzen™ 7 6800HS Mobile Processor (8-core/16-thread,
20MB cache, up to 4.7 GHz max boost)
Chipset N/A
Discrete/Optimus MUX Switch + Optimus
Graphic NVIDIA® GeForce RTX™ 3070 Ti Laptop GPU
Graphic Wattage ROG Boost: 1085MHz* at 120W (1035MHz Boost
Clock+50MHz OC, 100W+20W Dynamic Boost)
Graphic Memory 8GB GDDR6
IGPU AMD Radeon™ Graphics
Panel Size 15.6-inch
Resolution WQHD (2560 x 1440) 16:9
Refresh Rate 165Hz
Response Time (G2G) 3ms
Viewing Angle 85/85/85/85
Panel Tech IPS-level
Brightness 300nits
Contrast 1000:1
DCI-P3 % 100%
Anti glare anti-glare display
Adaptive-Sync technology Adaptive-Sync
Pantone Pantone Validated
Support Dolby Vision HDR Yes
Total System Memory 16GB DDR5 on board
On board memory 16GB DDR5 on board
Memory Slot 1x SO-DIMM slot
Memory Max. 48GB
Multi-channel memory technology Support dual channel
memory
System Storage Installed 512GB M.2 NVMe™ PCIe® 4.0 SSD
M.2 slots support either SATA or NVMe 2
M.2 SSD Support List "Value PCIe G4x4
SSD M2 2280 P4X4 512G
SSD M2 2280 P4X4 1TB"
How to upgrade memory Upgradable
Expansion Slot (includes used) "1x DDR5 SO-DIMM slot
1x PCIe"
LAN 10/100/1000/2500 Mbps
Wi-Fi/Bluetooth "Wi-Fi 6E(802.11ax)+Bluetooth 5.2 (Dual band) 2*2
(*BT version may change with OS upgrades.)"
I/O Ports "1x RJ45 LAN port
2x USB 3.2 Gen 2 Type-A
2x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery
1x card reader (microSD) (UHS-II)"
Display output 1x HDMI 2.0b
Audio 1x 3.5mm Combo Audio Jack
Webcam
720P HD IR Camera for Windows Hello
Mic Built-in array microphone
Keyboard Type Backlit Chiclet Keyboard
NumberPad N/A
Aura Sync N/A
Speakers "2x 2W
dual-force woofer with Smart Amp Technology
2x 2W tweeter"
Audio Tech "AI noise-canceling technology
Dolby Atmos
Hi-Res certification
Smart Amp Technology"
Operating System No preinstalled OS
Antivirus N/A
Security "BIOS Administrator Password and User Password Protection
Kensington Security Slot™
Trusted Platform Module (Firmware TPM)"
Battery 90WHrs, 4S1P, 4-cell Li-ion
Power ?6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input:
100~240C AC 50/60Hz universal
Reparability Index (for FR) 7.3
