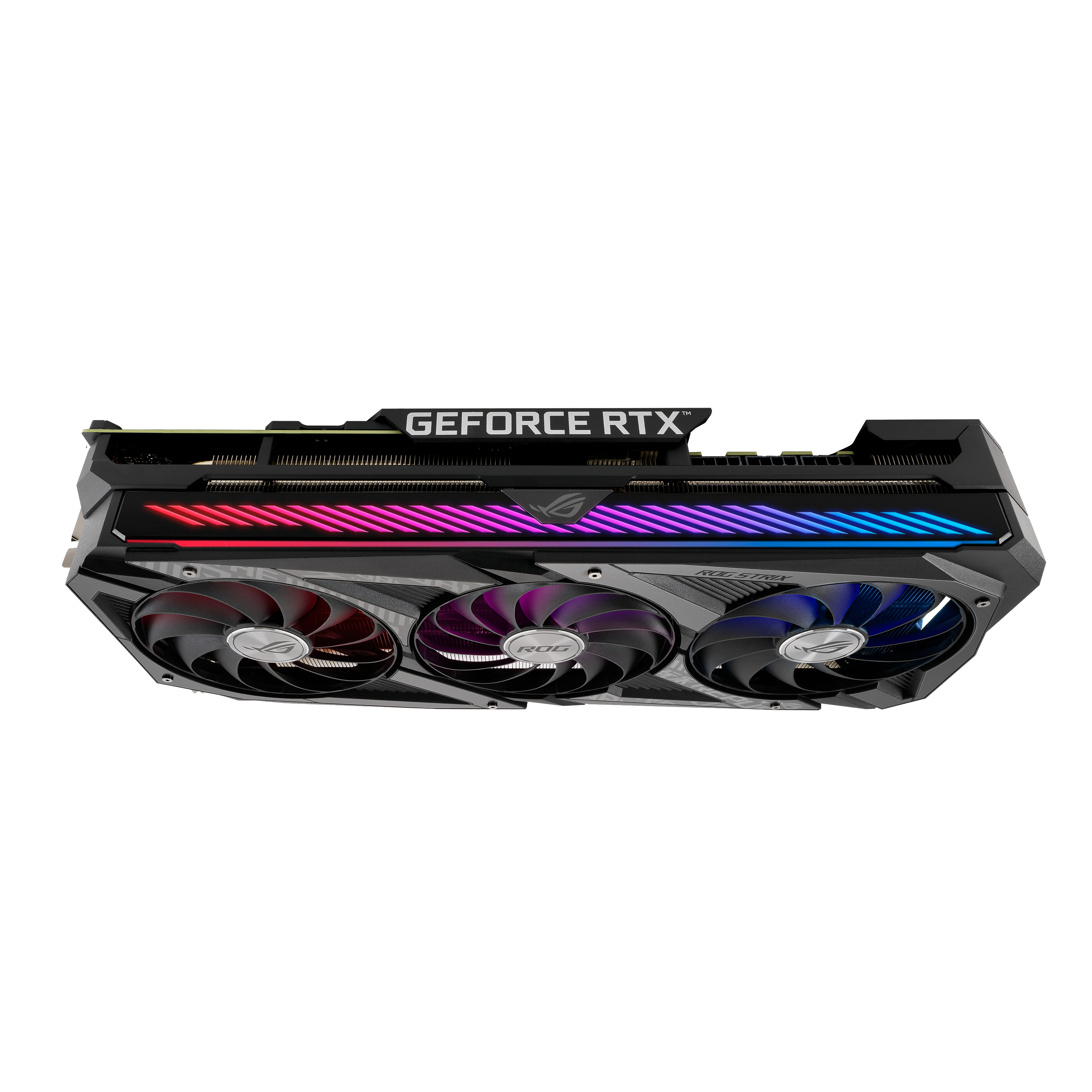

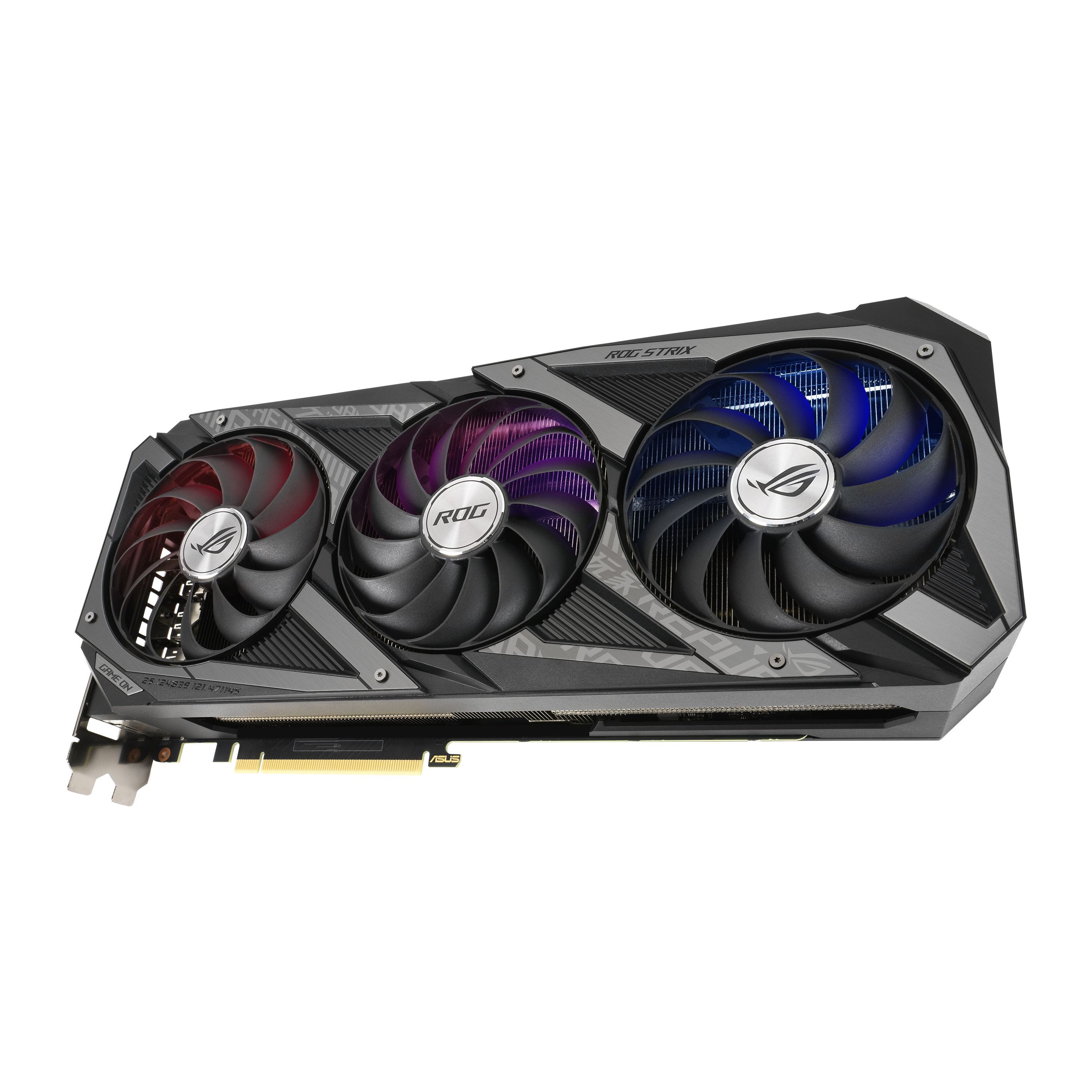

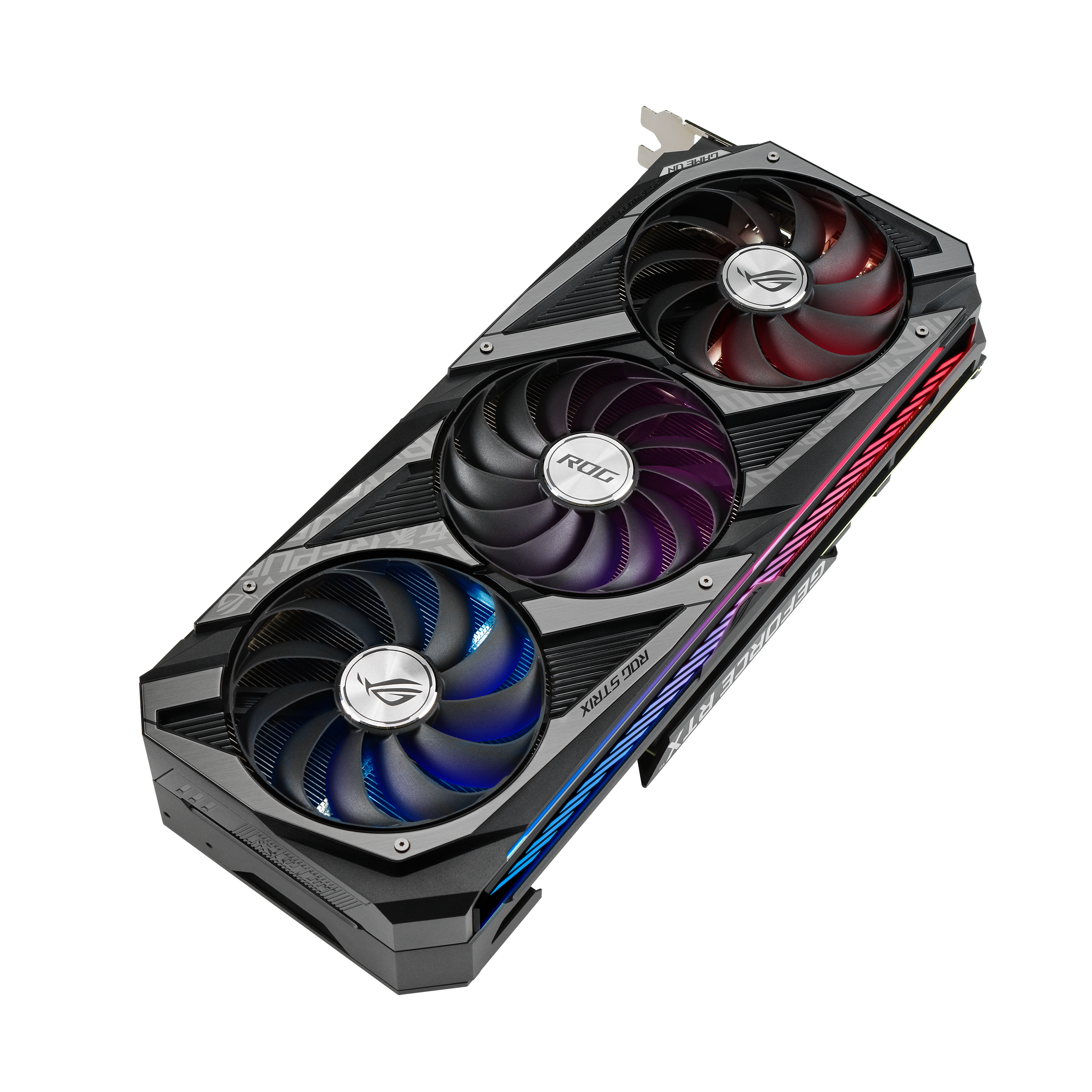

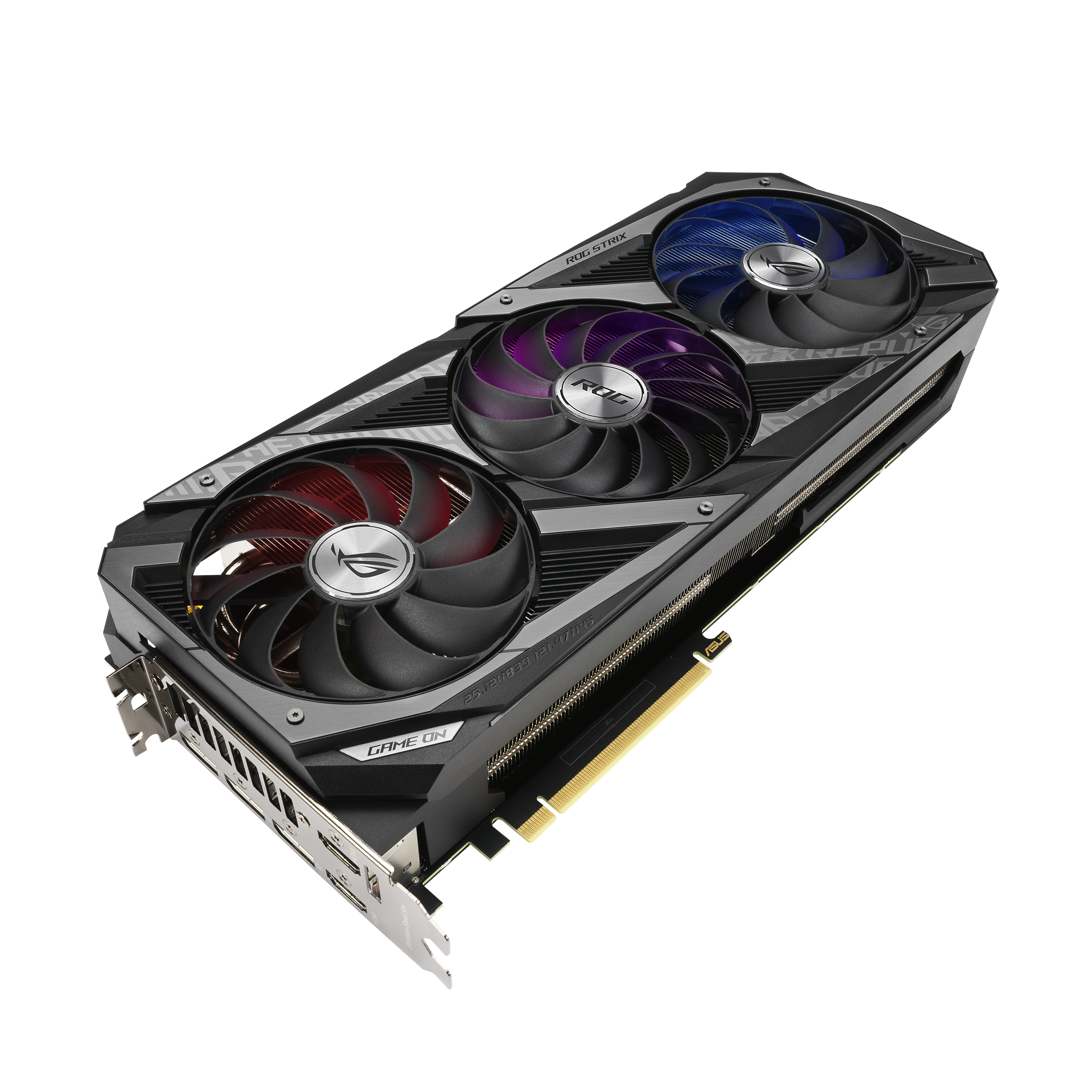

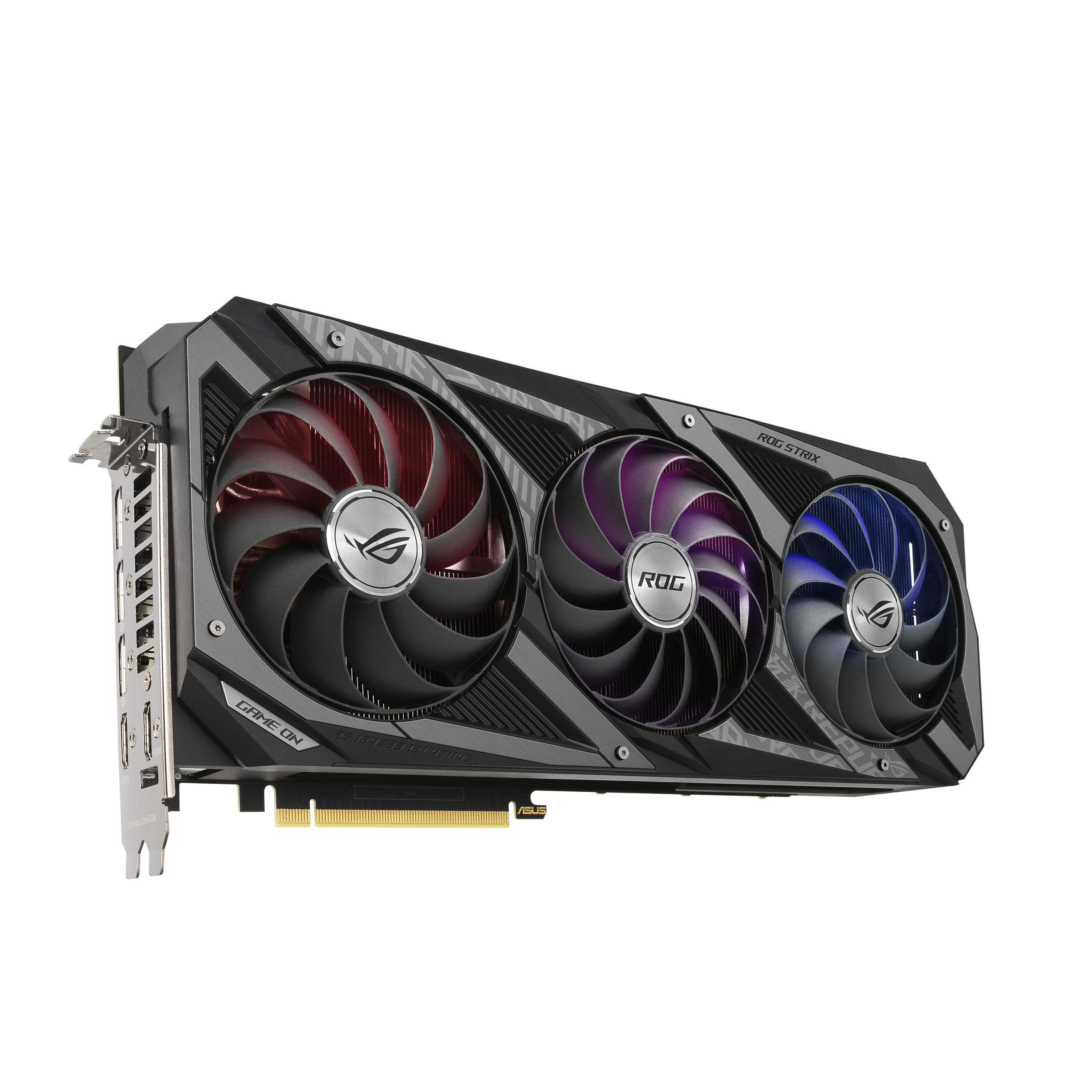

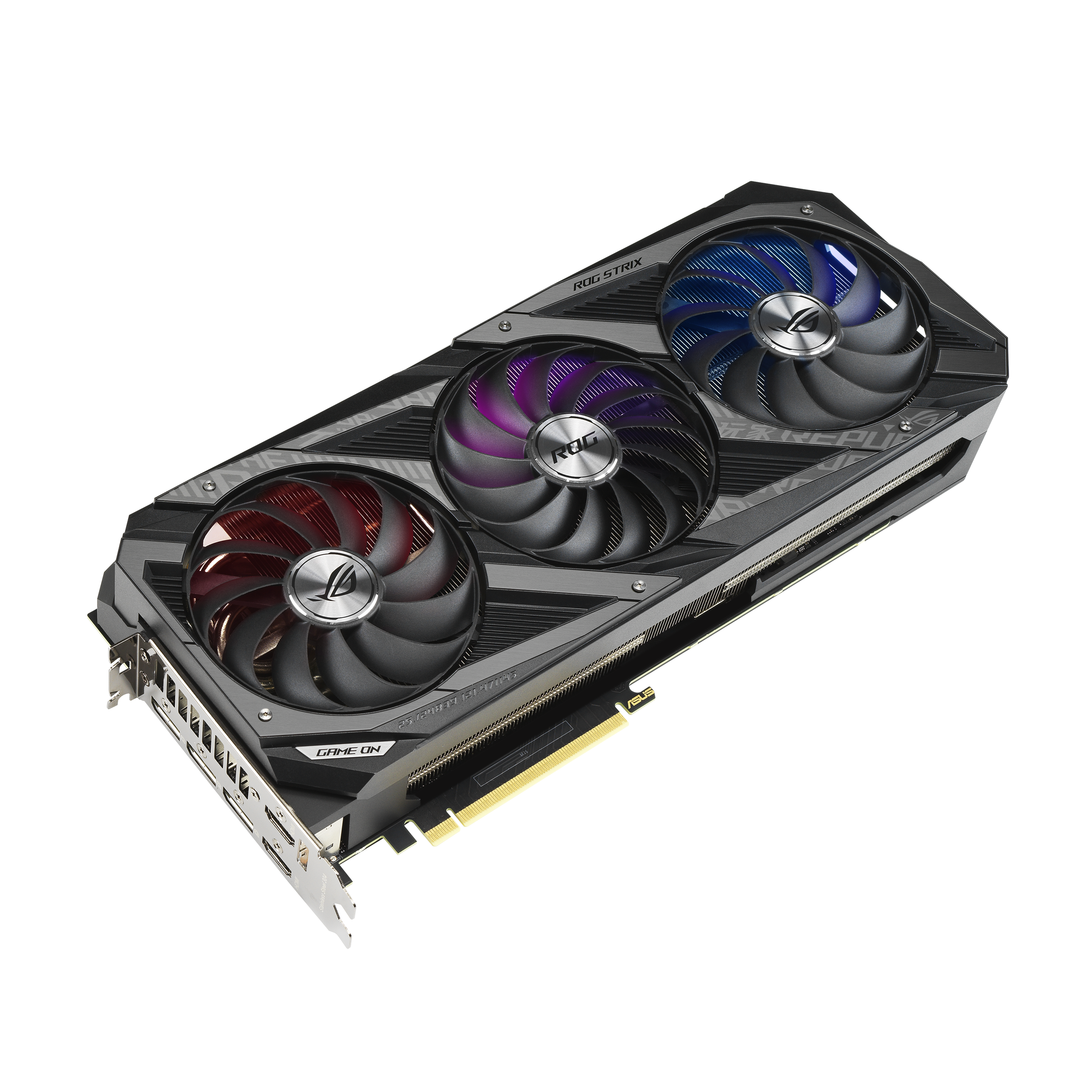

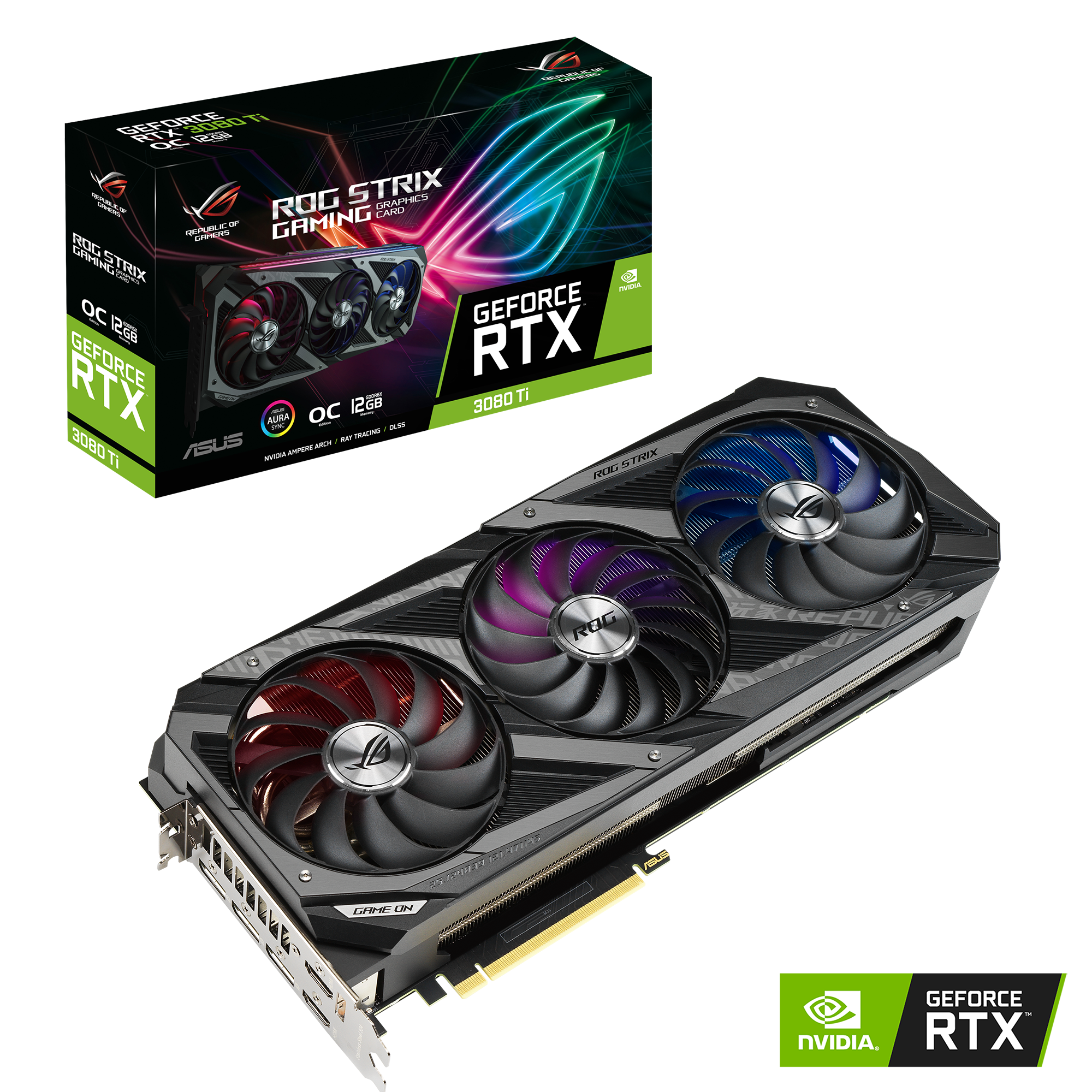

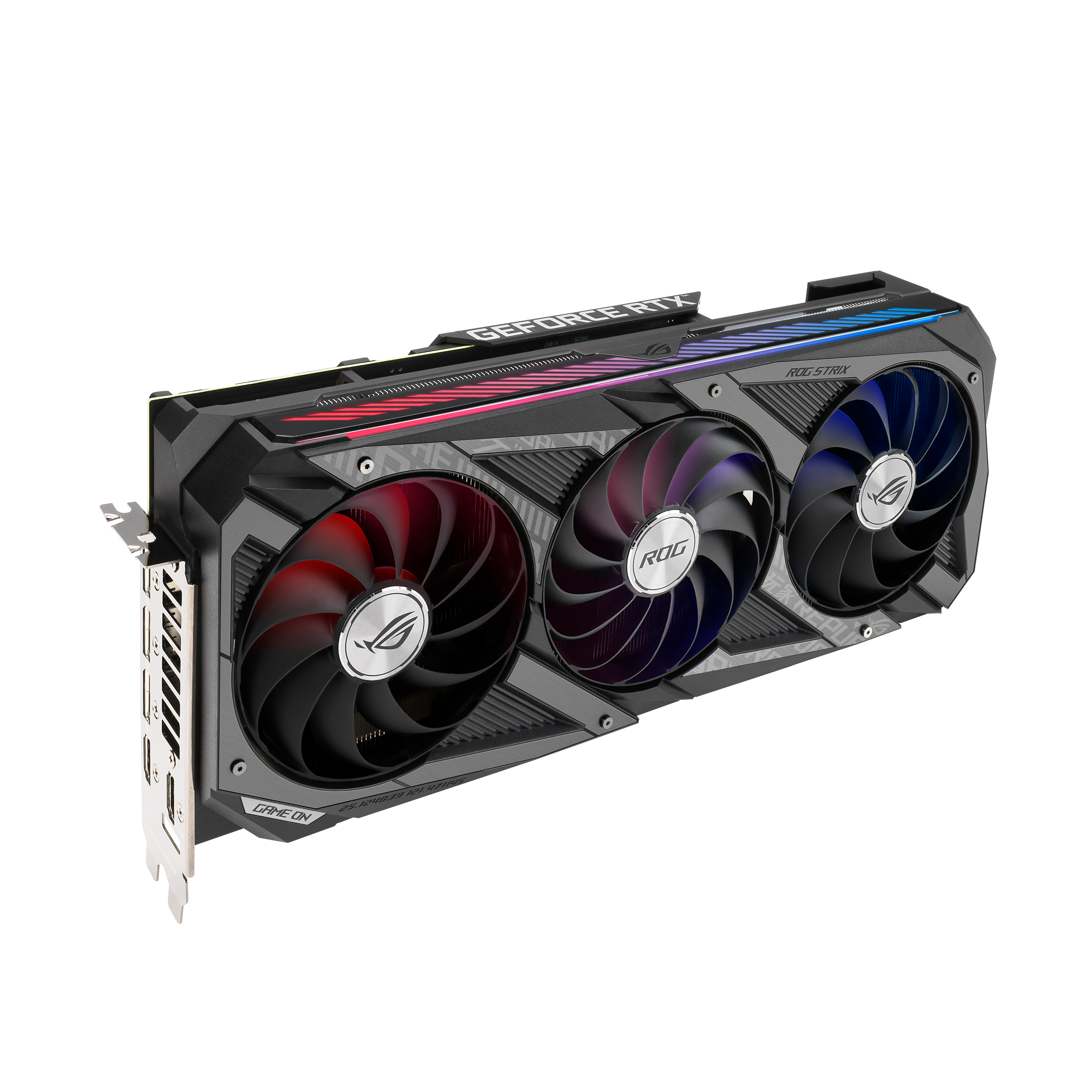

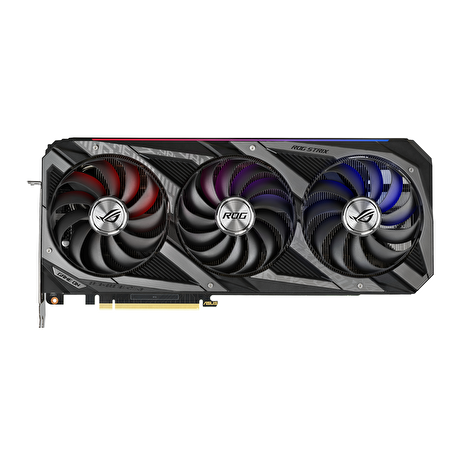

ROG-STRIX-RTX3080TI-O12G-GAMING
ROG Strix GeForce RTX™ 3080 Ti OC Edition 12GB GDDR6X buffed-up
design with chart-topping thermal performance.
NVIDIA Ampere Streaming Multiprocessors: The building blocks for
the world’s fastest, most efficient GPUs, the all-new Ampere SM
brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT
Cores, plus concurrent RT and shading for a whole new level of ray
tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with
structural sparsity and advanced AI algorithms such as DLSS. These
cores deliver a massive boost in game performance and all-new AI
capabilities.
OC edition: Boost clock 1845 MHz (OC mode)/ 1815 MHz (Gaming mode)

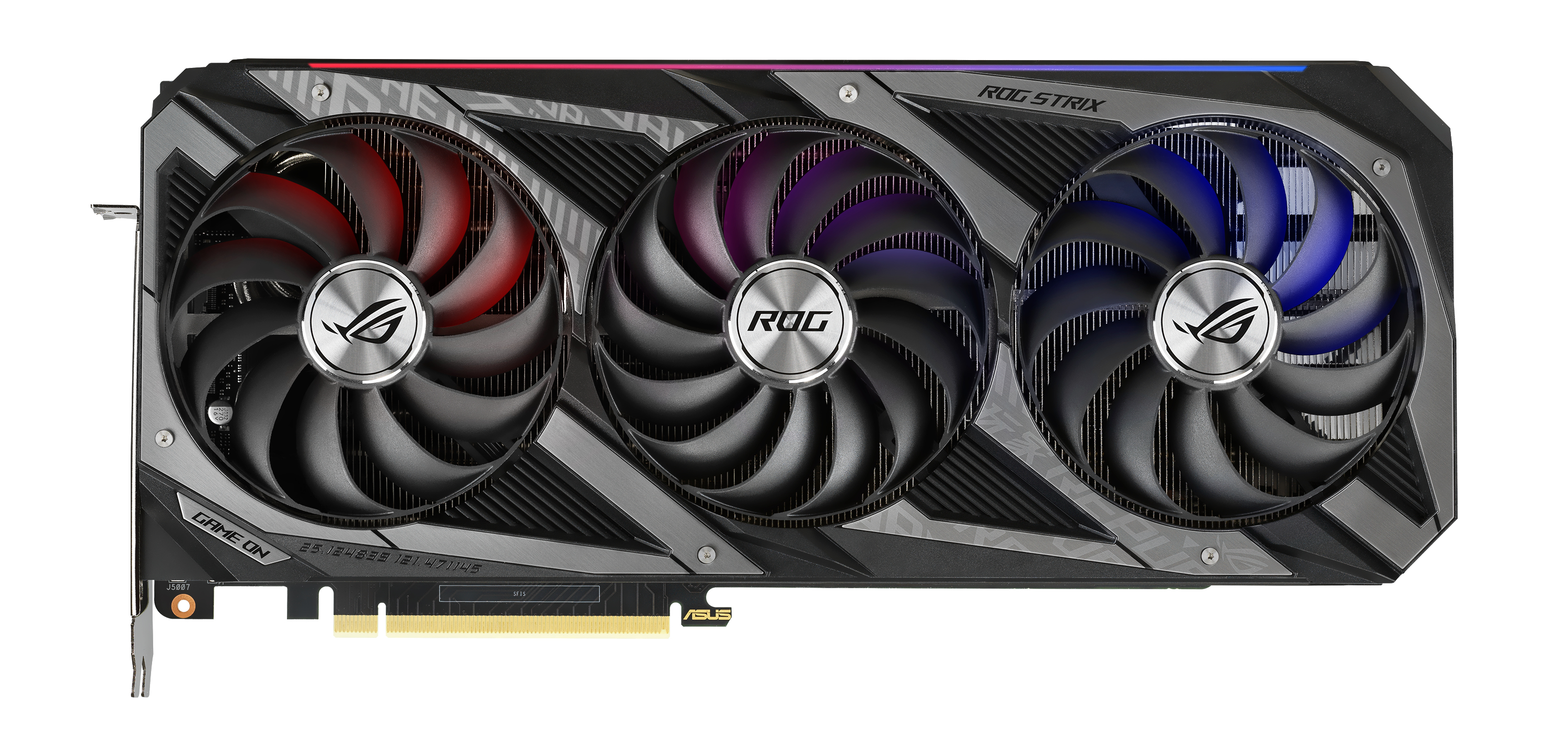

Axial-tech Fan Design has been tuned up with more fan blades and a
reversed rotational direction for the center fan.
2.9-slot design expands cooling surface area compared to last gen
for more thermal headroom than ever before.
Super Alloy Power II includes premium alloy chokes, solid polymer
capacitors, and an array of high-current power stages.
GPU Tweak II provides intuitive performance tweaking, thermal
controls, and system monitoring.
Graphic Engine
NVIDIA® GeForce RTX™ 3080 Ti
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
12GB GDDR6X
Engine Clock
OC mode : 1845 MHz (Boost Clock)
Gaming mode : 1815 MHz (Boost Clock)
CUDA Core
10240
Memory Speed
19 Gbps
Memory Interface
384-bit
Resolution
Digital Max Resolution 7680 x 4320

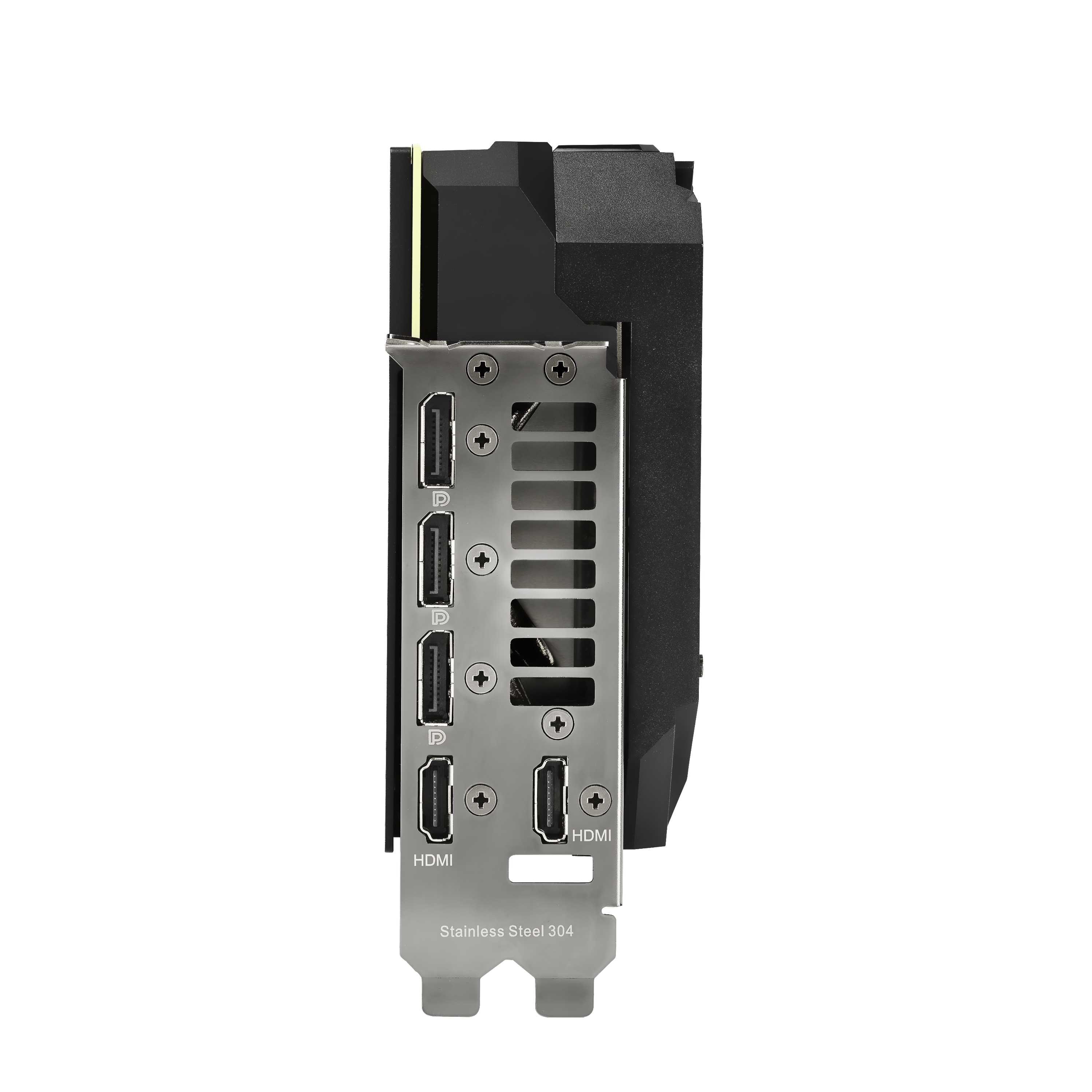

Interface
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x ROG Velcro Hook & Loop
1 x ROG ruler
1 x Collection card
1 x Speedsetup Manual
Software
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver:
please download all software from the support site.
Dimensions
318.5 x 140.1 x 57.78 mm
12.53 x 5.51 x 2.27 inches
Recommended PSU
850W
Power Connectors
3 x 8-pin
Slot
2.9 Slot
Note
*Our wattage recommendation is based on a fully overclocked GPU and
CPU system configuration. For a more tailored suggestion, please
use the “Choose By Wattage” feature on our PSU product page:
https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please
check with your supplier for exact offers. Products may not be
available in all markets. If you do not use the latest and current
specifications of ASUS products, you shall be liable for all loss
and damage claimed by third party to ASUS based on false
advertising or any other issues caused from using false
specifications of ASUS products.liable for all loss and damage
claimed by third party to ASUS based on false advertising or any
other issues caused from using false specifications of ASUS
products.
