ASUS NUC Mini PC with 14th Generation Intel® Core™ Ultra Processors
Code Name: Scorpion Canyon
Processor Included: Intel® Core™Ultra 7 Processor 155H (24MB
Cache/up to 4.80 GHz)
Discrete Graphics: Nvidia Geforce RTX 4060 Graphics w/ 8GB GDDR6
VRAM
Board Number: NUC14SRBU7A
Supported Operating Systems: Windows 11 | 64-bit*

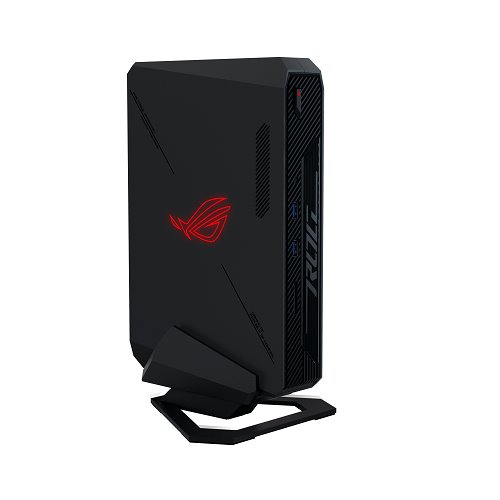

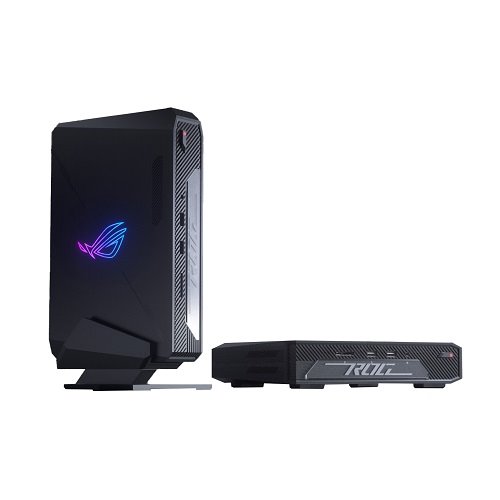

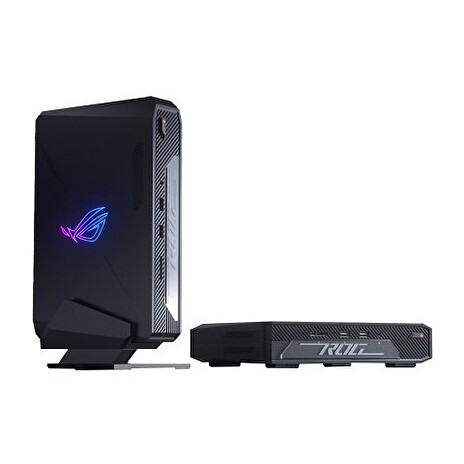

Description: Includes stand for vertical operating orientation /
RGB-backlit logo with replaceable mask
CPU Total Cores: 16
CPU Total Threads: 22
Max Turbo Frequency: 4.80 GHz
Max Memory Size (dependent on memory type) 64 GB
# of Memory Slots: 2
Memory Types: DDR5-5600 1.1V SO-DIMM
Max # of Memory Channels: 2
Internal Drive Form Factor: M.2 SSD
3x Internal Drives Support
Removable Memory Card Slot: SD Express PCIe G3 NVMe UHS-I
M.2 Card Slot (storage): 3x 22x80
Graphics Output:
1x Thunderbolt™ 4 / 1x HDMI2.1 (FRL) / 2x DP1.4a
1x Thunderbolt™ Ports/1x rear Thunderbolt™ 4
6x USB Ports
USB Configuration:

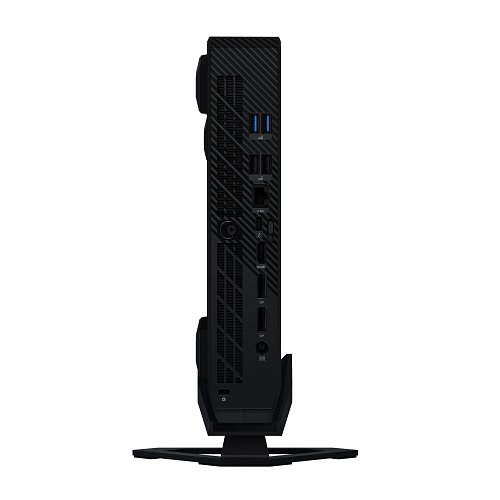

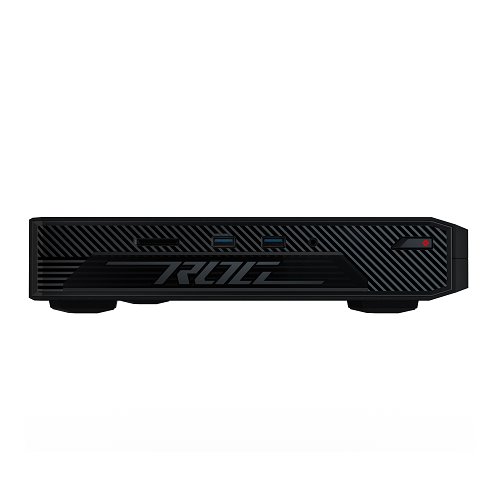

Front: 2x Type-A; Rear: 2x Type-A 3.2 Gen2 | 2x Type-A 2.0
Audio (back channel + front channel): 7.1 digital; L+R+mic (F)
Integrated LAN: Intel® Ethernet Controller i226-V
Wireless Included: Intel® Killer™ Wi-Fi 6E AX1690 (i/s)
Bluetooth Version: 5,3
M.2 Card Slot (wireless): 22x30
Consumer Infrared Rx Sensor: Yes
Expansion Options PCIE Revision: Gen4
Expansion Options PCIE Configurations*: 3x M.2 slots w/ PCIe x4
Gen4
DC Input Voltage Supported: 19.5 VDC
*Intel® HD Audio Technology
*Intel® Rapid Storage Technology
*Intel® Optane™ Memory Supported* Yes
*Intel® Virtualization Technology for Directed I/O (VT-d) *
*Intel® Platform Trust Technology (Intel® PTT)
