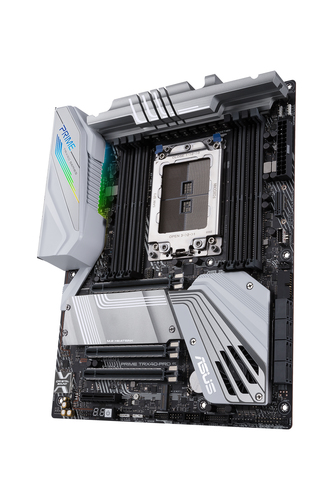

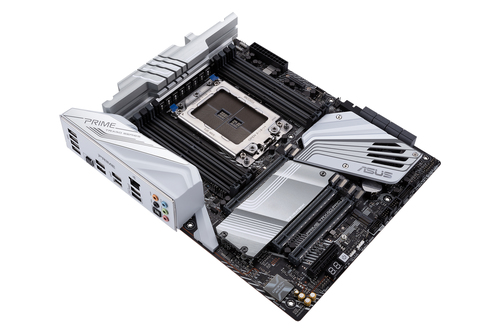

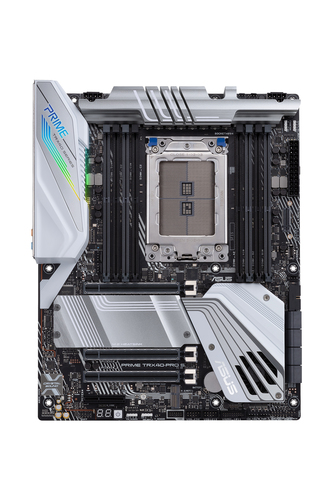

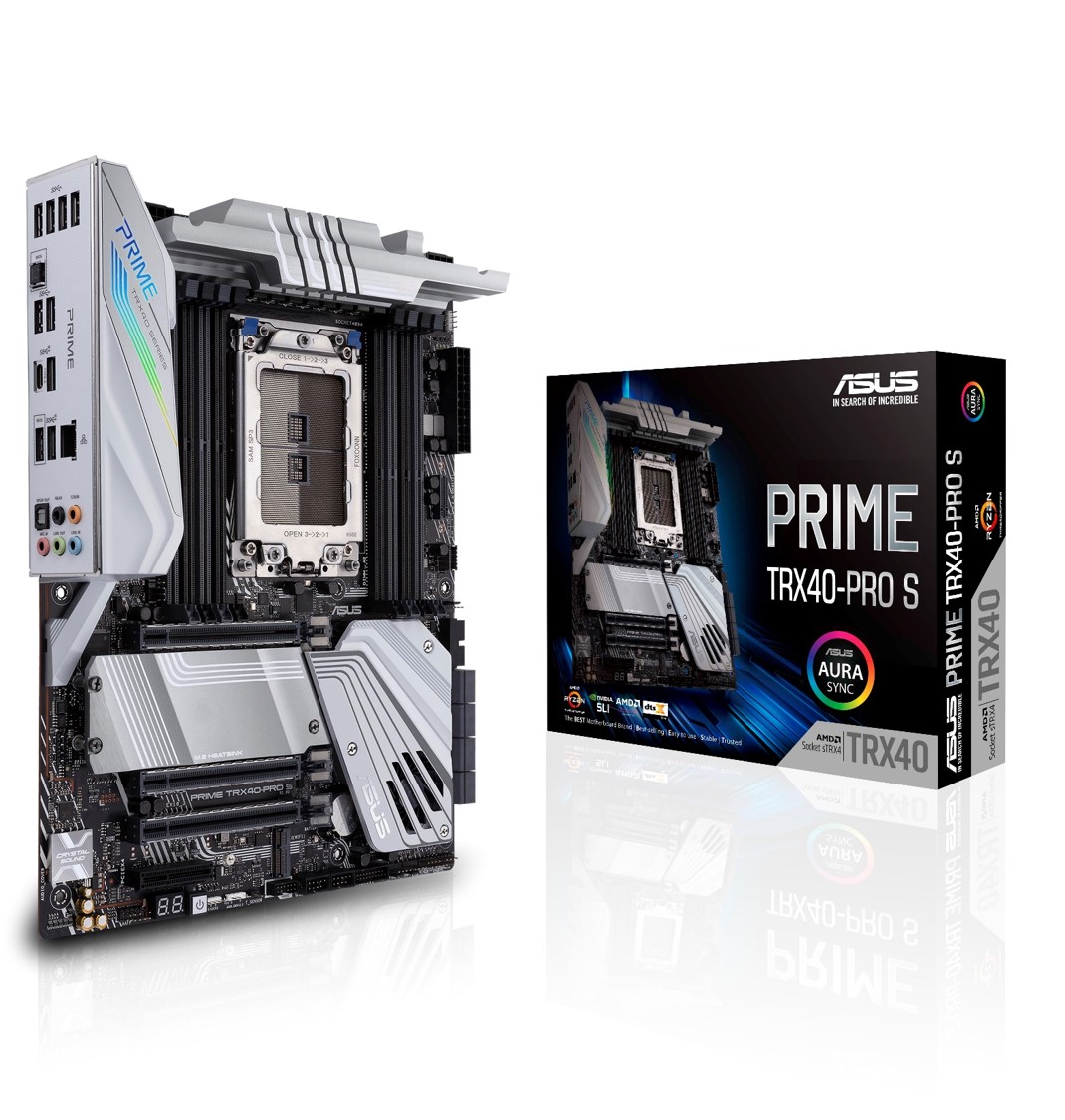

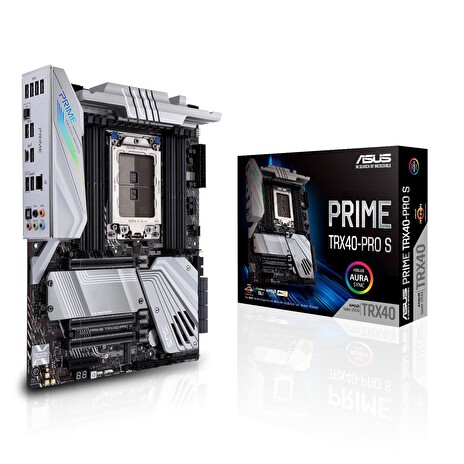

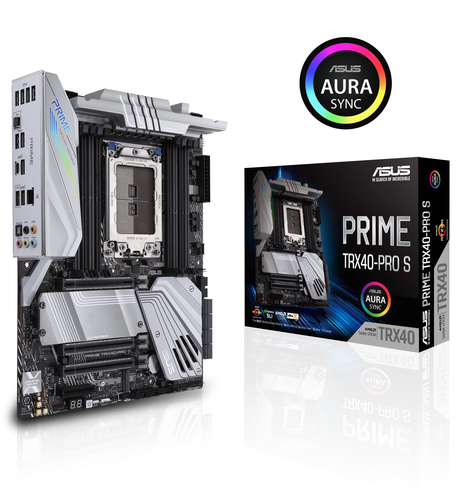

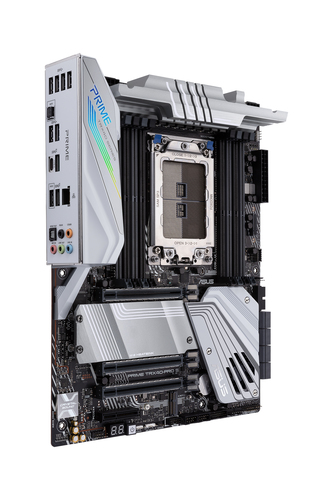

PRIME TRX40-PRO S
AMD TRX40 ATX motherboard sTRX4 for 3rd
Gen Ryzen Threadripper-series processors (up to 64 cores) with 16
power stages, DDR4 4666+ MHz (O.C.), triple PCIe 4.0 M.2s, USB 3.2
Gen 2 Type-C front-panel connector and Aura Sync RGB lighting
- AMD Socket sTRX4: Ready for the
latest 3rd Gen AMD Ryzen™ Threadripper™ series processors (support
up to 64 cores)
- Robust power design: 16 power
stages, ProCool II connectors with solid pins, and premium chokes
and capacitors for stable power delivery
- Comprehensive thermal solutions: VRM
heatsink, M.2 heatsink, SoC VRM heatsink, active chipset heatsink
solution, and an array of hybrid fan headers
- Next-gen connectivity: Three PCIe
4.0 NVMe M.2 slots, USB 3.2 Gen 2 Type-C™ front-panel connector,
and Intel Gigabit Ethernet
- Intelligent tuning: ASUS 5-Way
Optimization software and renowned UEFI BIOS offer easy
configuration options for all experience levels
TECHNICAL SPECIFICATIONS
CPU |
AMD Socket sTRX4 for 3rd Gen AMD Ryzen™
Threadripper™ Series Desktop Processors *
Supports CPU up to 64 cores
* Refer to www.asus.com for CPU
support list |
Chipset |
AMD TRX40 |
Memory |
3rd Gen AMD Ryzen™
Threadripper™ Series Desktop processors
8 x DIMM, Max. 256GB, DDR4
4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133
MHz ECC and non-ECC, Un-buffered Memory
* Refer to www.asus.com for the
Memory QVL (Qualified Vendors Lists). |
Multi-GPU Support |
Supports NVIDIA Quad-GPU SLI
Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology |
Expansion Slots |
3rd Gen AMD Ryzen™
Threadripper™ Series Desktop processors
3 x PCIe 4.0 x16 (x16/x16/x16) * |
AMD TRX40 chipset
1 x PCIe 4.0 (x4 mode) |
Storage |
3rd Gen AMD Ryzen™
Threadripper™ Series Desktop processors:
2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage
devices support(PCIe 4.0 x4 mode) |
AMD TRX40 chipset:
1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110
storage devices support(SATA & PCIe 4.0 x4 mode)
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10 |
LAN |
Intel I211-AT
ASUS Turbo LAN Utility
ASUS LAN Guard |
Audio |
Realtek ALC S1220 8-Channel High
Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for
headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel
Jack-retasking
- High quality 120 dB (Line-out at rear) and 108 dB SNR recording
input (Line-in) |
Audio Feature:
- DTS X:Ultra
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and
greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right
channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and
immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio
outputs |
USB Ports |
AMD Ryzen™ Threadripper™
Processors:
4 x USB 3.2 Gen 2 port(s) (4 at back panel, 3 x Type-A+1 x
Type-C)
AMD TRX40 chipset:
1 x USB 3.2 Gen 2 front panel connector port(s) (1 at
mid-board)
AMD TRX40 chipset:
6 x USB 3.2 Gen 1 port(s) (2 at back panel, Type-A, 4 at
mid-board)
AMD TRX40 chipset:
2 x USB 2.0 port(s) (2 at mid-board)
ASMedia USB 3.2 Gen 1 controller:
4 x USB 3.2 Gen 1 port(s) (4 at back panel, Type-A)
GL852G USB Hub:
2 x USB 2.0 port(s) (2 at mid-board) |
Special Features |
ASUS Dual Intelligent
Processors 5-Way Optimization by Dual Intelligent Processors
5:
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU,
DIGI+ VRM, Fan Expert 4, and Turbo App
ASUS SafeSlot - Protect your graphics card Investment |
AURA:
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG
devices
- Addressable Gen 2 Header |
ASUS Exclusive Features
: - AI Suite 3
- Ai Charger
- Onboard Button : Power
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user
interface
- Turbo LAN
- Crystal Sound 3
- Armoury Crate
- Pre-mounted I/O Shield |
ASUS Quiet Thermal
Solution:
- Stylish Design Heat-pipe solution
- Stylish Fanless Design with M.2 Heat-sink solution
- ASUS Fan Xpert 4 |
ASUS EZ DIY:
- ASUS EZ Flash 3
- ASUS USB BIOS FlashBack™
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS |
ASUS Q-Design:
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector |
Back I/O Ports |
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can
be switched to USB BIOS FlashBack™)
6 x USB 3.2 Gen 1 (blue)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS FlashBack™ Button(s) |
Internal I/O Ports |
1 x Q_Code
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4
USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0
port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage
devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110
storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 with E key for Wi-Fi module
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x W_PUMP+ connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector) x With flexkey function
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x USB 3.2 Gen 2 front panel connector |
Accessories |
User´s manual
1 x Vertical M.2 bracket set
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x Q-Connector
1 x Extension Cable for RGB strips (40 cm)
1 x Extension cable for Addressable LED
1 x CPU Fan Holder |
BIOS |
1 x 128 Mb Flash ROM, UEFI AMI BIOS,
PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
Manageability |
WfM 2.0, WOL by PME, PXE |
Operating System |
Windows 10 64-bit |
Form Factor |
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
Note |
Recommend you to install add-on cards
on (PCIEX16_1 and PCIEX16_2) or (PCIEX16_1 and PCIEX16_3) to enjoy
2 way SLI™ or CrossFireX™. |
