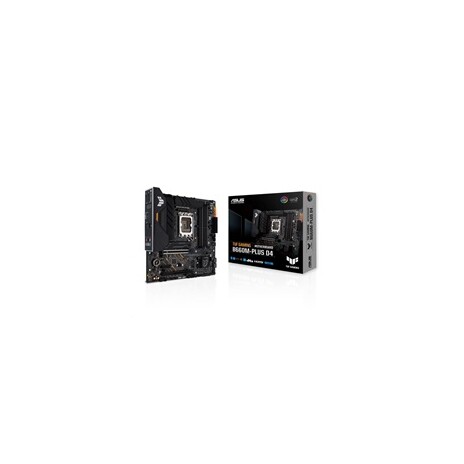

ASUS MB Sc LGA1700 TUF GAMING B660M-PLUS DDR4, Intel B660, 4xDDR4, 1xDP, 1xHDMI, mATX
ASUS MB Sc LGA1700 TUF GAMING B660M-PLUS DDR4, Intel B660, 4xDDR4, 1xDP, 1xHDMI, mATXASUS MB Sc LGA1700 TUF GAMING B660M-PLUS DDR4, Intel B660, 4xDDR4, 1xDP, 1xHDMI, mATXASUS MB Sc LGA1700 TUF GAMING B660M-PLUS DDR4, Intel B660, 4xDDR4, 1xDP, 1xHDMI, mATXASUS MB Sc LGA1700 TUF GAMING B660M-PLUS DDR4, Intel B660, 4xDDR4, 1xDP, 1xHDMI, mATXASUS MB Sc LGA1700 TUF GAMING B660M-PLUS DDR4, Intel B660, 4xDDR4, 1xDP, 1xHDMI, mATX
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

ASUS MB Sc LGA1700 TUF GAMING B660M-PLUS DDR4, Intel B660, 4xDDR4, 1xDP, 1xHDMI, mATX

TUF GAMING B660M-PLUS D4 TECHNICAL SPECIFICATIONS CPU Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset…
Kategorie: Základní desky
Kód: 3347474PN: 90MB1940-M0EAY0Výrobce: ASUSZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
4 095   včetně DPH
Cena bez DPH: 3 384 Kč
Cena po registraci:
4 057 Kč
Cena bez DPH: 3 353 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 25.1. / ZDARMA!
Přepravní službou (ČR)již 27.1. / od 120 Kč
Na výdejním místě (ČR)28.1. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.
Toto zboží je možné koupit pouze na IČ.

Popis produktu

TUF GAMING B660M-PLUS D4

TECHNICAL SPECIFICATIONS

CPU Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel B660 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics 1 x DisplayPort**
1 x HDMI port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' resolution.
Expansion Slots Intel 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B660 Chipset*
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
* Supports Intel Optane Memory H Series on PCH-attached PCIe slot.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Ethernet 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
USB Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
TUF GAMING CPU-Z
DTS Audio Processing
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User guide
Operating System Windows 11 64-bit, Windows 10 64-bit
Form Factor mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Parametry

BlueToothNe
COM port (interní)Ano
DisplayPort / miniDisplayPortAno
DVINe
eSATANe
Grafická kartaAno (v závislosti na CPU)
HDMIAno
ChipsetB660
IEEE 1394Ne
Integrované CPU na MBNe
LPT port (interní)Ne
Max. velikost op. paměti (GB)128
Maximální frekvence pamětí5333
PaticeLGA 1700
Počet konektorů SATA 6GB/s4
Počet LAN výstupů1x LAN konektor
Počet paměťových slotů4
Počet pinů USB 2.0 (interní)2
Počet pinů USB 3.x (interní)1
Počet slotů M.22
Počet slotů PCIe x11
Počet slotů PCIe x162
Počet USB 2.0 (externí)2
Počet USB 3.x (externí)5
Podpora pro paměti typuDDR4
Podpora pro paměti typu ECCNe
RAID řadičAno
ThunderBolt (interní)Ano
Typ síťové kartyRealtek
Velikost základní deskymikro ATX
VGANe
Výrobce chipsetuIntel
WiFiNe
XMPAno
