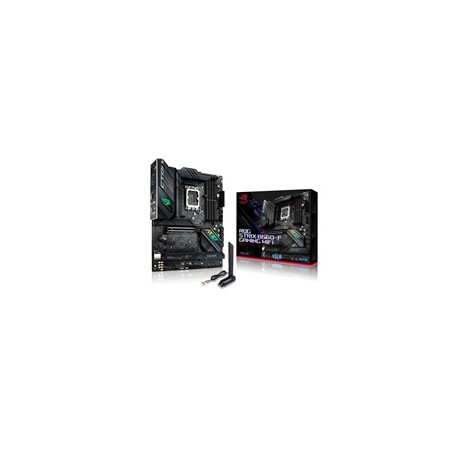

ASUS MB Sc LGA1700 ROG STRIX B660-F GAMING WIFI, Intel B660, 4xDDR5, 1xDP, 1xHDMI, WI-FI
ASUS MB Sc LGA1700 ROG STRIX B660-F GAMING WIFI, Intel B660, 4xDDR5, 1xDP, 1xHDMI, WI-FIASUS MB Sc LGA1700 ROG STRIX B660-F GAMING WIFI, Intel B660, 4xDDR5, 1xDP, 1xHDMI, WI-FIASUS MB Sc LGA1700 ROG STRIX B660-F GAMING WIFI, Intel B660, 4xDDR5, 1xDP, 1xHDMI, WI-FI
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

ASUS MB Sc LGA1700 ROG STRIX B660-F GAMING WIFI, Intel B660, 4xDDR5, 1xDP, 1xHDMI, WI-FI

ROG STRIX B660-F GAMING WIFI TECHNICAL SPECIFICATIONS CPU Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors* Supports Intel 10 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support…
Kategorie: Základní desky
Kód: 3346652PN: 90MB18R0-M0EAY0Výrobce: ASUSZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
5 893   včetně DPH
Cena bez DPH: 4 870 Kč
Běžná maloobchodní cena: 6 248 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 25.1. / ZDARMA!
Přepravní službou (ČR)již 27.1. / od 160 Kč
Na výdejním místě (ČR)28.1. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.
Toto zboží je možné koupit pouze na IČ.

Popis produktu

ROG STRIX B660-F GAMING WIFI

TECHNICAL SPECIFICATIONS

CPU Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors*
Supports Intel 10 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel B660 Chipset
Memory 4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
*Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics 1 x DisplayPort**
1 x HDMI port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 8K@60Hz as specified in DisplayPort 1.4.
*** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel 12th Gen Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
Intel B660 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)***
2 x PCIe 3.0 x1 slots
* Please check PCIe bifurcation table in support site.
** Supports Intel Optane Memory H Series on PCH-attached PCIe slot
*** The PCIEX16(G3) shares bandwidth with the PCIEX1(G3)_1 and PCIEX1(G3)_2. When either PCIEX1(G3) slot enables, PCIEX16(G3) will run x2 mode.
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Ethernet 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
USB Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 ports (1 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
- Audio cover
Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 ports (1 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x S/PDIF Out header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header
Special Features Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 RGB headers
Software Features ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 Q-Latch package
1 x M.2 Q-Latch package for M.2 backplate
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System Windows 10 64-bit, Windows 11 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Parametry

BlueToothAno
COM port (interní)Ne
DisplayPort / miniDisplayPortAno
DVINe
eSATANe
Grafická kartaAno (v závislosti na CPU)
HDMIAno
ChipsetB660
IEEE 1394Ne
Integrované CPU na MBNe
LPT port (interní)Ne
Max. velikost op. paměti (GB)128
Maximální frekvence pamětí6000
PaticeLGA 1700
Počet konektorů SATA 6GB/s4
Počet LAN výstupů1x LAN konektor
Počet paměťových slotů4
Počet pinů USB 2.0 (interní)2
Počet pinů USB 3.x (interní)1
Počet slotů M.23
Počet slotů PCIe x12
Počet slotů PCIe x162
Počet USB 2.0 (externí)2
Počet USB 3.x (externí)5
Podpora pro paměti typuDDR5
Podpora pro paměti typu ECCNe
RAID řadičAno
ThunderBolt (interní)Ano
TPMAno
Typ síťové kartyIntel
Velikost základní deskyATX
VGANe
Výrobce chipsetuIntel
WiFiAno
XMPAno
