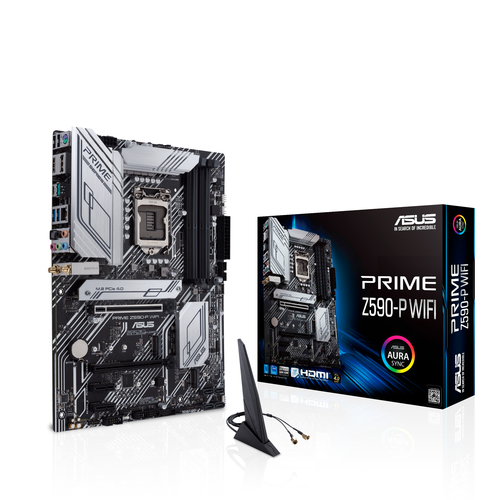

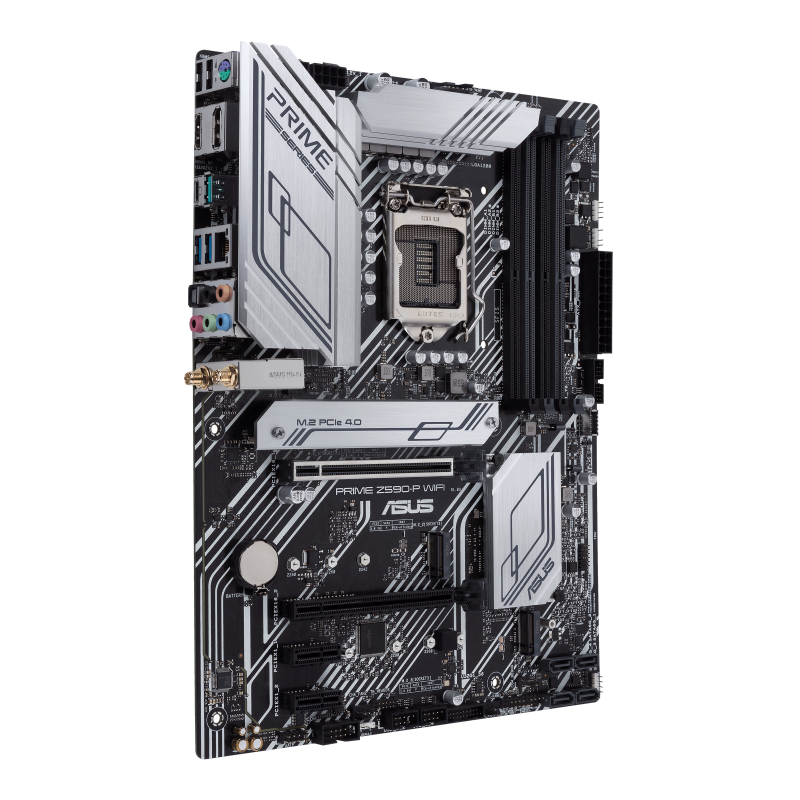

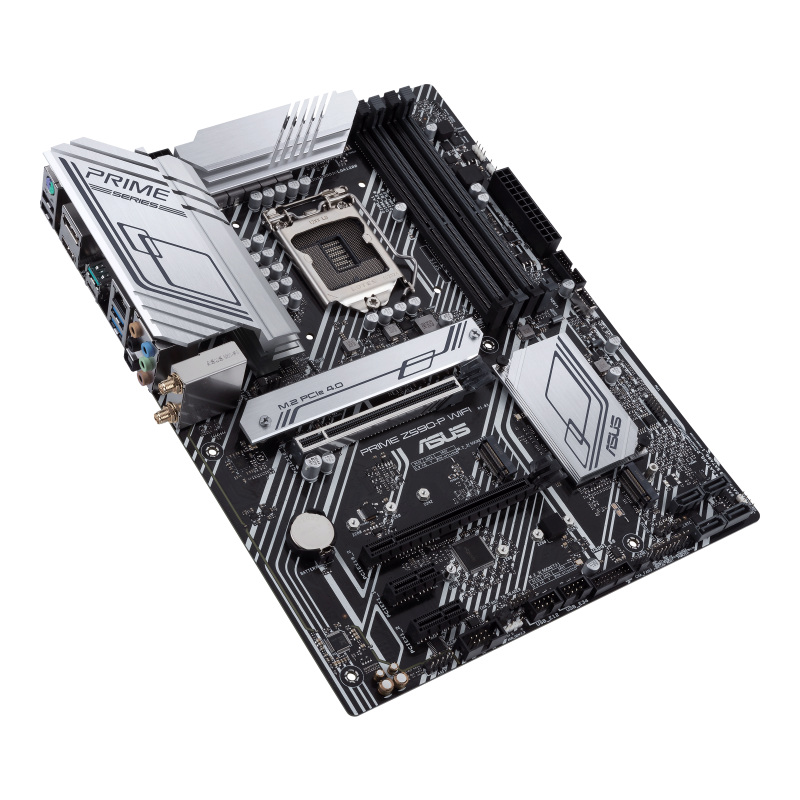

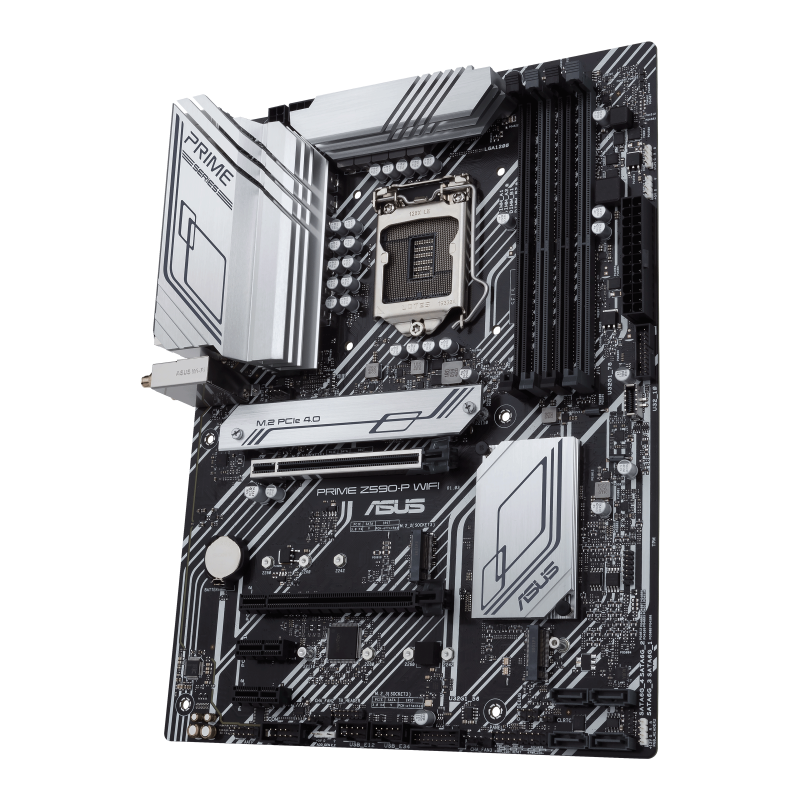

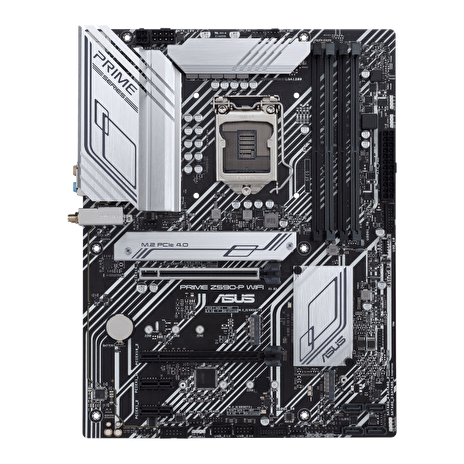

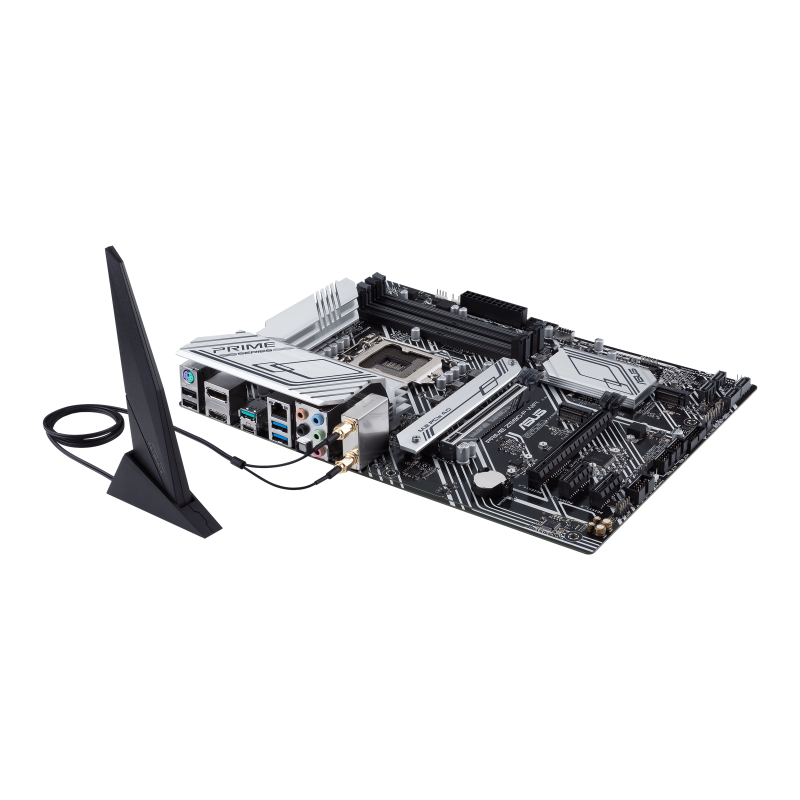

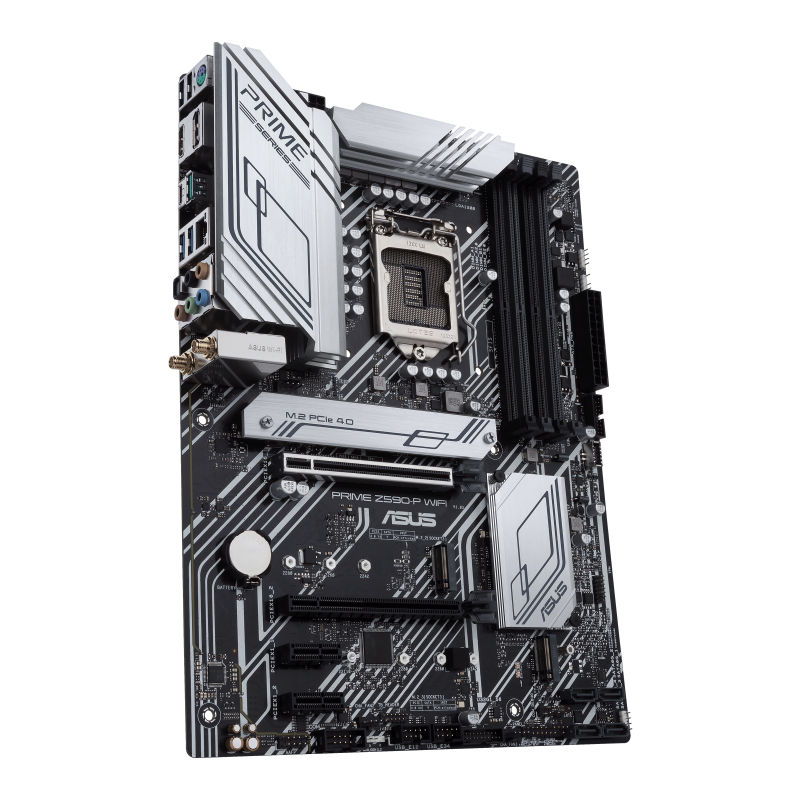

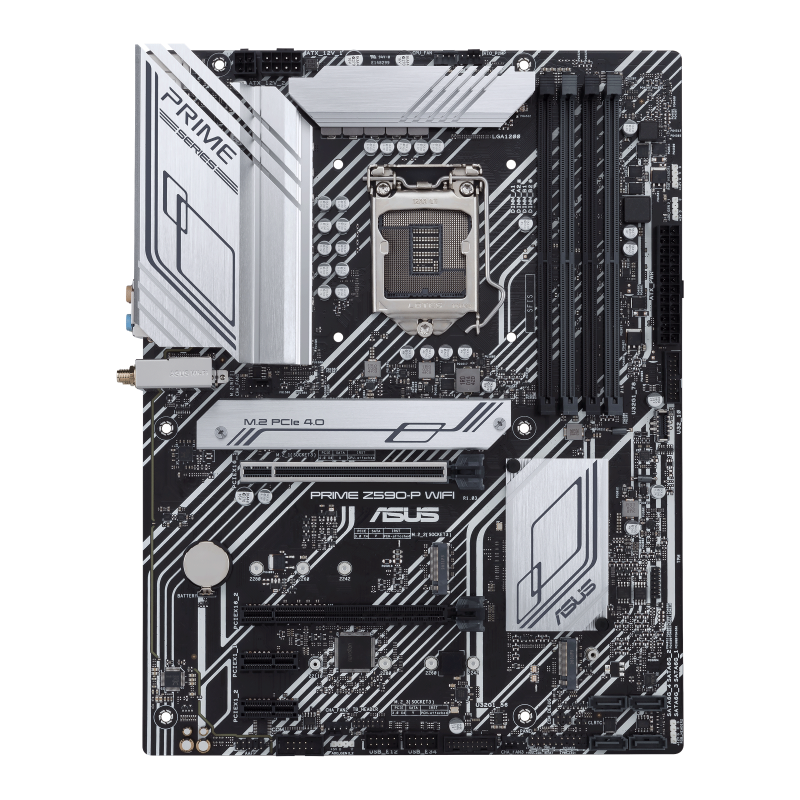

PRIME Z590-P WIFI
Intel Z590 (LGA 1200) ATX
motherboard with PCIe 4.0, three M.2 slots, 11 DrMOS power stages,
HDMI, DisplayPort™, SATA 6 Gbps, Intel WiFi 6, 2.5 Gb Ethernet, USB
3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt™
4 support, and Aura Sync RGB lighting
- Intel LGA 1200 socket: Ready for 11th and 10th
gen Intel Core™ processors
- Enhanced power solution: 10+1 DrMOS power
stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and
durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks,
M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and
vias, plus ground layer optimizations to preserve signal integrity
for improved memory overclocking
- Next-gen connectivity: Intel WiFi 6, PCIe 4.0,
2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1
Type-C, Thunderbolt™ 4 header support
CPU
Intel Socket LGA1200 for 11th Gen Intel Core™ Processors & 10th
Gen Intel Core™, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max
Technology 3.0**
* Refer to www.asus.com for CPU
support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU
types.
Chipset
Intel Z590 Chipset
Memory
5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel Core™ i7/i9 processors support
2933/2800/2666/2400/2133 natively, others will run at the maximum
transfer rate of DDR4 2666MHz.
* 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133
natively.
* Refer to www.asus.com for the
Memory QVL (Qualified Vendors Lists), and memory frequency support
depends on the CPU types.
Graphics
1 x HDMI 2.0***
* Graphics specifications may vary between CPU types.
** Intel 11th & 10th Gen processors support DisplayPort 1.4 with
max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
*** Only Intel 11th Gen processors support HDMI™ 2.0 with max.
resolution of 4K@60Hz, others will
only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots
Intel 11th & 10th Gen Processors*
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or
x8/x4/x4 modes
- Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or
x8/x4/x4 modes
Intel Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
* Supports PCIe bandwidth bifurcation for RAID on CPU function.
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this
slot will be disabled for other CPUs
Intel Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 &
SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4
& SATA modes)
4 x SATA 6Gb/s ports
Raid function for PCIe mode SSD in Intel Rapid Storage Technology
is available with either 1. Intel SSDs installed in both
CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs
installed in PCH-attached slots.
To enable Intel Optane™ Memory (Hybrid Storage device), it must be
installed in PCH-attached slots with Intel Rapid Storage
Technology.
* When a device in SATA mode is installed on the M.2_2 slot,
SATA6G_2 port cannot be used.
Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Intel Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.0 or later
USB
Rear USB:Total 6 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 9 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1
ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the
bandwidth.
Audio
Realtek ALC897 7.1 Surround Sound High Definition Audio
CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel
Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers

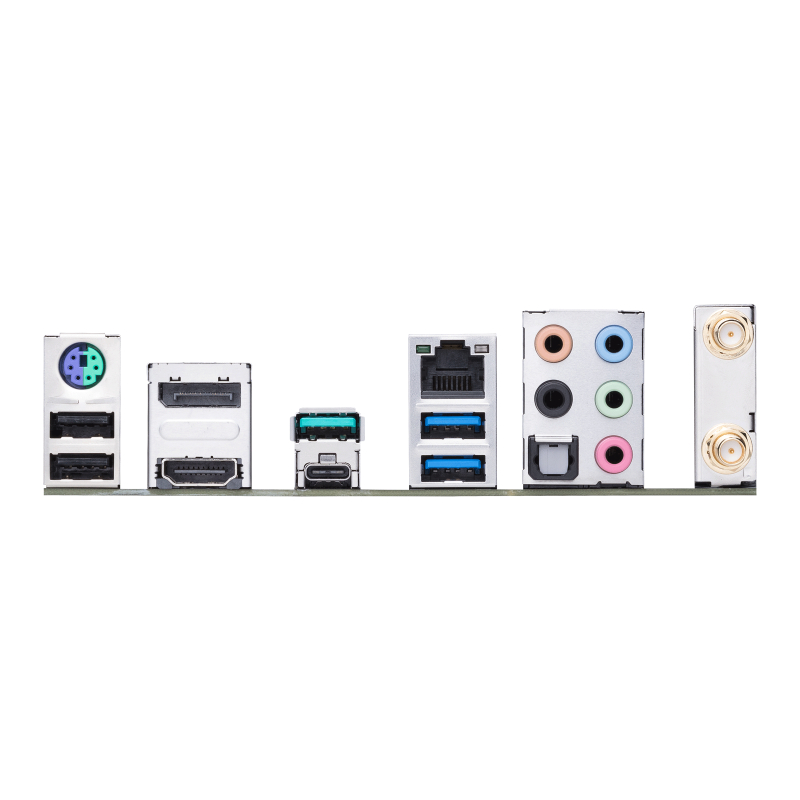

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1
ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

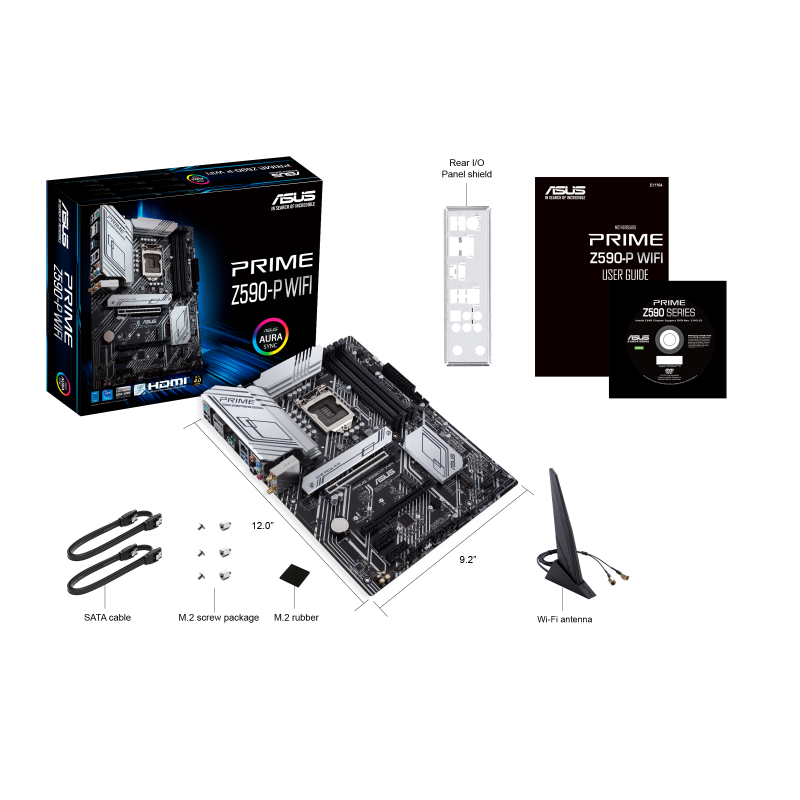

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas

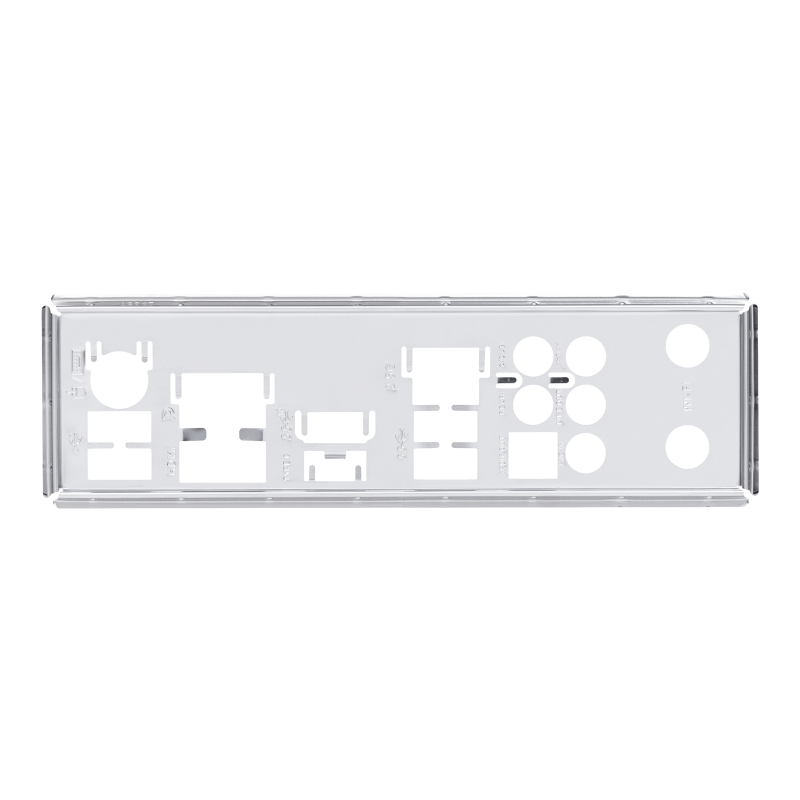

1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System
Windows 10 64bit
Form Factor
ATX
30.5cm x 23.4cm
