Počítače a kancelář  Počítačové komponenty  Areca Tri-mode RAID card 8-port (SFF-8654), 4x M.2, 8GB DDR4, PCIe4.0 x8 Card…

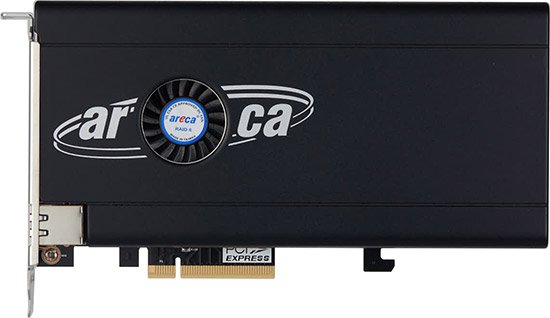

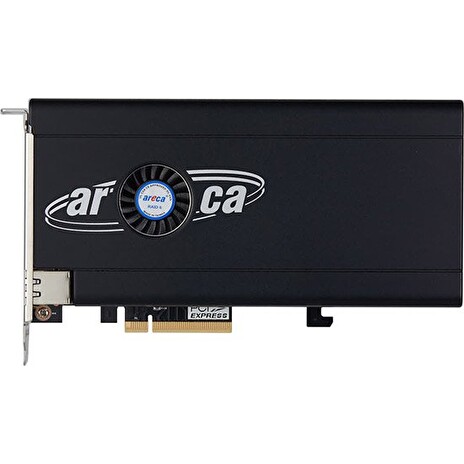

ARECA Tri-mode RAID card 8-port (SFF-8654), 4x M.2, 8GB DDR4, PCIe4.0 x8 Card, FP
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Areca Tri-mode RAID card 8-port (SFF-8654), 4x M.2, 8GB DDR4, PCIe4.0 x8 Card, FP

ARC-1886 Series 16-Ports PCIe Gen 4.0 Tri-Mode RAID Adapters ARC-1886-8x8i ARC-1886-16i ARC-1886-4N8I Host Bus Interface 8-Lane PCI Express® 4.0 Physical Dimensions LP-MD2: 167.65(L) x 64.41(H) mm 205(L) x 107.2(H) mm Ports 8 x internal & 8 x external 16 x internal Drive…
Kategorie: Počítačové komponenty
Kód: 3242135PN: ARC-1886-4N8IVýrobce: ArecaZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
33 791   včetně DPH
Cena bez DPH: 27 926 Kč
Běžná maloobchodní cena: 37 460 Kč
Ušetříte 3 669 Kč (9,8 %)
Cena po registraci:
33 725 Kč
Cena bez DPH: 27 872 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 20.9. / ZDARMA!
Přepravní službou (ČR)22.9. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.
Toto zboží je možné koupit pouze na IČ.

Popis produktu

ARC-1886 Series 16-Ports PCIe Gen 4.0 Tri-Mode RAID Adapters
ARC-1886-8x8i ARC-1886-16i ARC-1886-4N8I
Host Bus Interface 8-Lane PCI Express® 4.0
Physical Dimensions LP-MD2: 167.65(L) x 64.41(H) mm 205(L) x 107.2(H) mm
Ports 8 x internal & 8 x external 16 x internal
Drive Connectors 1 x SFF-8654 [x8]
2 x SFF-8644 [x4]
2 x SFF-8654 [x8] 1 x SFF-8654 [x8]
4 x M.2 Connectors
RAID-on-Chip Controller Tri-mode Dual Core ARM A15 1.6GHz ROC
Cache Memory 8GB on-board DDR4-2666 SDRAM with ECC Protection
Data Transfer Rate Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port
Drive Support
  • Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs, using 12Gb/s SAS expander
  • Up to 24 NVMe drives through the PCIe switches
Power Consumption Approximately 14 Watts
Operating Temperature 0 °C to 60 °C
Operating Humidity 10% to 85%, non-condensing
Cache Protection ARC-1886-CBM

RAID Features


  • RAID Levels - 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD
  • Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID100)
  • Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk
  • Multiple RAID selection
  • Configurable stripe size up to 1MB
  • Write-through or write-back cache support
  • Support read/write cache allocation by policy
  • Support HDD firmware update
  • Online array roaming
  • Online RAID level/stripe size migration
  • Online capacity expansion and RAID level migration simultaneously
  • Instant availability and background initialization
  • Support global and dedicated hot spare
  • Automatic drive insertion/removal detection and rebuilding
  • Support for native 4K and 512 byte sector SAS and SATA devices
  • Support UNMAP command
  • S.M.A.R.T. support
  • Multiple pairs SSD/HDD disk clone function
  • SSD automatic monitor clone (AMC)
  • Controller based hardware encryption function
  • SED (self-encryption drives) function support
  • Support backplanes based on the SFF-TA-1005 specification (UBM)
  • Redundant flash image for adapter availability
  • Support intelligent power management to save energy and extend service life
  • Support NTP protocol synchronize RAID adapter clock over the onboard Ethernet port

Operating Systems


  • Microsoft Windows
  • Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux
  • FreeBSD
  • XenServer
  • unRAID
  • macOS
  • VMware ESXi

Management Monitor


 McRAID Storage Manager

  • Web-based GUI management utility
  • Remote configuration, monitoring, and notification
  • Graphical-based management utility

  •

 McRAID Utility

  • Command-line interface
  • CIM provider for VMware
  • API code support

 McBIOS Configuration Utility

  • Legacy configuration utility
  • Flashable BIOS support

  •

 Monitors/Notification

  • Global HDD activity/fault connector, individual fault connector
  • LCD/I²C connector and alarm buzzer
  • SNMP
  • SMTP

Parametry

TypSAS / SATA
