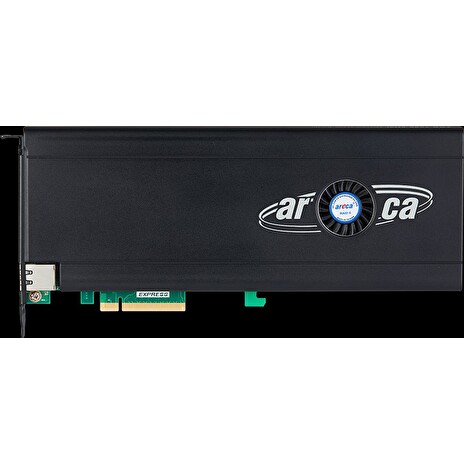

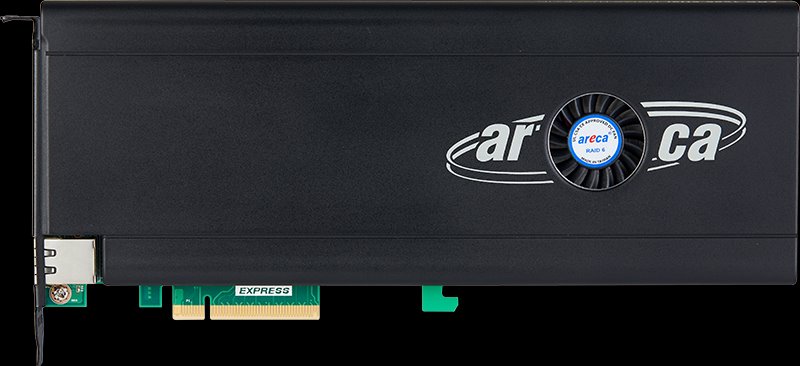

Počítače a kancelář Počítačové komponenty Areca SATA + NVMe RAID card 6x M.2, 2x SATA, 8GB DDR4, PCIe4.0 x8 Card, FP
Areca SATA + NVMe RAID card 6x M.2, 2x SATA, 8GB DDR4, PCIe4.0 x8 Card, FP
PCIe Gen 4.0 M.2 NVMe Hardware RAID controller
ARC-1886-6N2I
ARC-1886-4N8I
Form Factor
107.2(H) x 262(L) mm
107.2(H) x 205(L) mm
I/O Processor
Tri-Mode Dual Core ARM A15 1.6GHz ROC
On-Board Cache
8GB on-board DDR4-2666 SDRAM
Drive Connector
2 x SATA
&
6 x M.2…
Kategorie: Počítačové komponenty
Kód: 3242136PN: ARC-1886-6N2IVýrobce: ArecaZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce
Popis produktu
| PCIe Gen 4.0 M.2 NVMe Hardware RAID controller | ||
| ARC-1886-6N2I | ARC-1886-4N8I | |
| Form Factor | 107.2(H) x 262(L) mm | 107.2(H) x 205(L) mm |
| I/O Processor | Tri-Mode Dual Core ARM A15 1.6GHz ROC | |
| On-Board Cache | 8GB on-board DDR4-2666 SDRAM | |
| Drive Connector | 2 x SATA & 6 x M.2 Connector |
1 x SFF-8654 [X8] & 4 x M.2 Connector |
| Drive Support | 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) | |
| Management Port | In-Band: PCIe / Out-of-Band: LAN Port | |
| Enclosure Ready | SGPIO, SMP, SES2 and UBM | |
| Operating Voltage | 12V | |
| Power Consumption | Approximately 14 Watts (without M.2 drive) | |
| Cache Protection | ARC-1886-CBM | |
