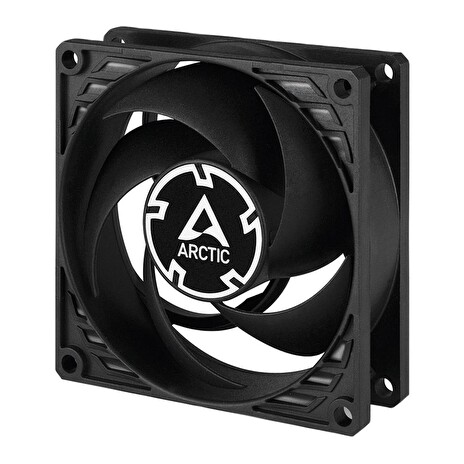

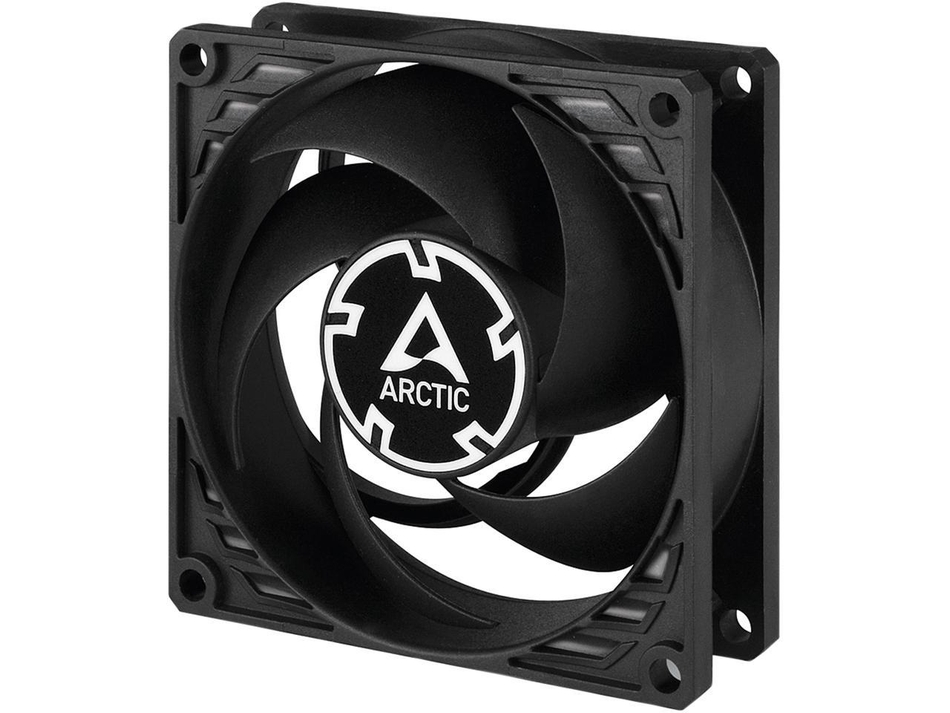

ARCTIC P8 PWM PST CO, 80x80x25 mm case fan, 3000 RPM, 4-pin
P8 PWM PST CO - 80x80x25 mm větráček optimalizovaný na tlak s PWM
řízením a PST konektory pro řízení více ventilátorů a dvojitými
ložisky pro nepřetržitý provoz.
P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for
Optimised for Static Pressure
During the development of the new P8 PWM PST CO, special emphasis
was placed on a focused airstream and thus a high static pressure.
The fan guarantees extremely efficient cooling, even with increased
air resistance. Therefore, the P8 PWM PST CO is particularly
suitable for use on heatsinks and radiators.
For Continuous Operation
The premium quality Japanese dual ball bearing allows continuous
operation 24/7 without the slightest compromise in performance.
Dust and high temperature are affecting this bearing a lot less
than generic sleeve or one ball bearings and thus make it the
perfect choice when reliability is essential.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is
Due to a sinus-magnetizing the new motor only creates about 5 % of
the vibration from commutation of a regular DC-motor without
filter. Consequently, there is no need for rubber spacers due to
the steady and smooth torque of the new motor.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a
The new ARCTIC motor has a four times longer service life through
its low coil temperature.
Consequently, we have extended the warranty to 10 years.
200 to 3000 RPM
regulated via PWM
With a wide range of regulation and the PWM Sharing Technology
(PST), the P8 PWM PST CO fan speed can be controlled synchronously
with all your other fans together. This keeps noise at a minimum
while guaranteeing maximum cooling performance when needed.
Fan: 80mm, 200 - 3.000 RPM (Controlled by PWM)
Air Flow: 23.4 CFM / 40.3 m3/h (@ 3.000 RPM)
Noise Level: 0.3 Sone (@ 3.000 RPM)
Typical Voltage: 12V DC
Cable Length: 400 mm
Sub PST Cable Length: 50 mm
Motherboard: + 12 V DC
PWM control signal 4-pin socket
