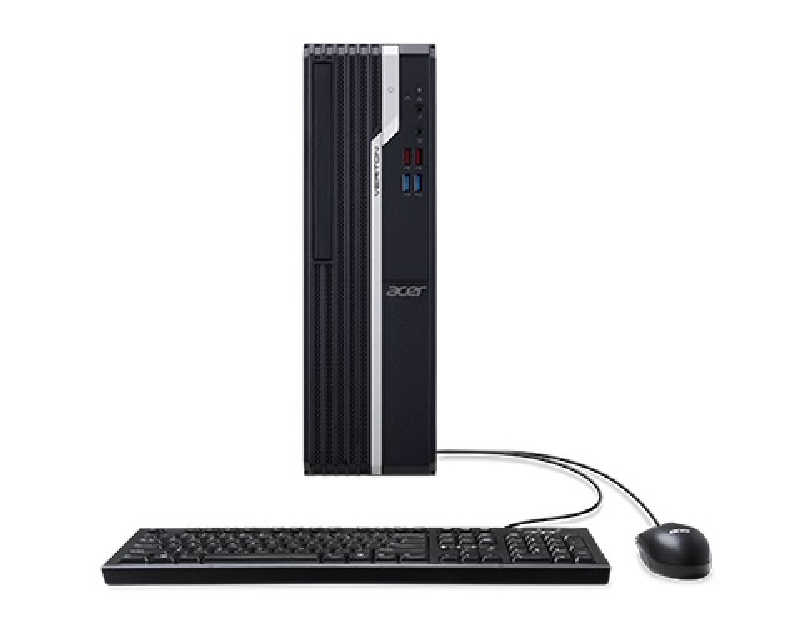

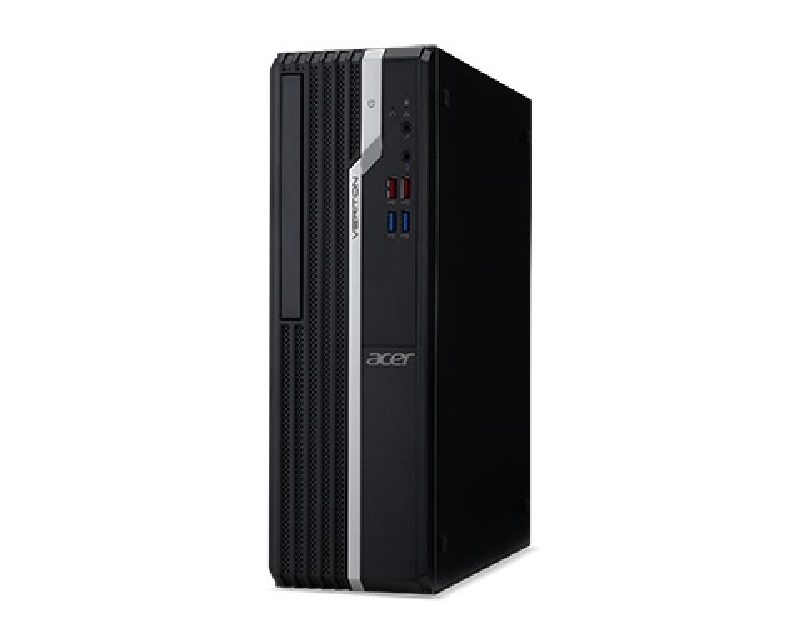

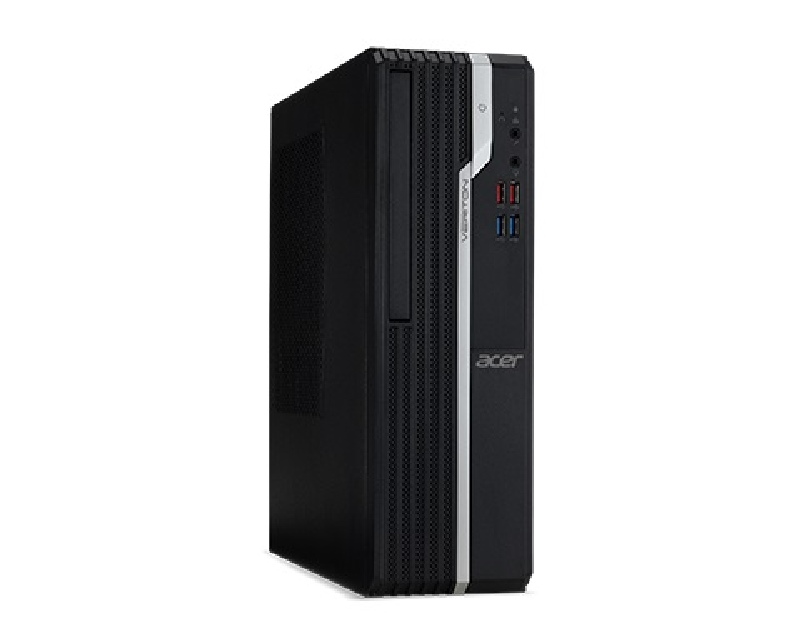

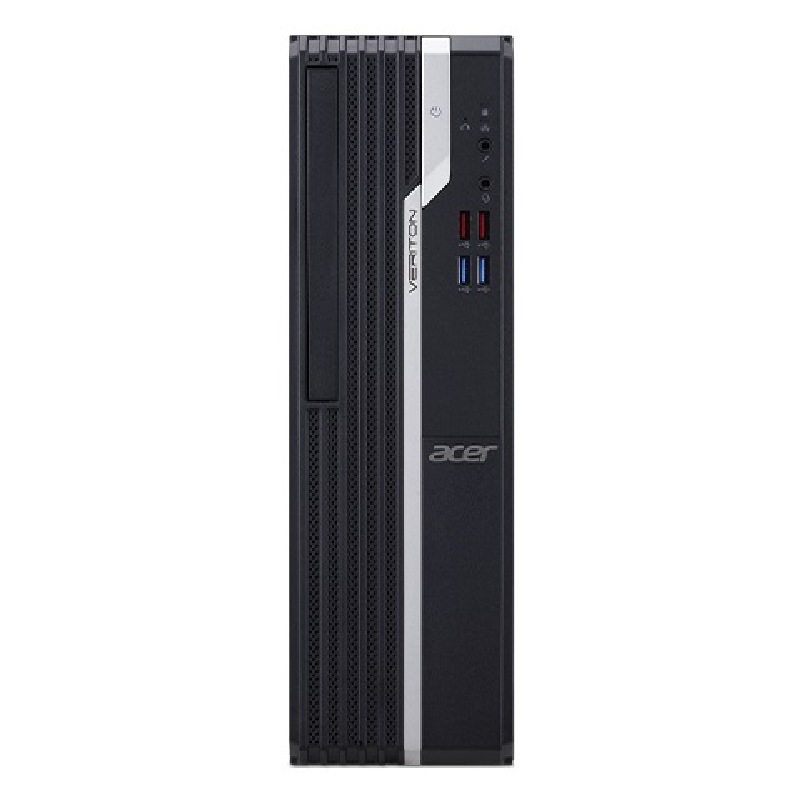

Veriton VX2680G_W_FR180W 82+, 9l SFF - Windows® 10 Professional 64
- Intel Pentium G6405 Gold Comet Lake - B560 chipset - 128 GB M.2
SSD + free 3,5" slot - 4GB DDR4 2933 + 2nd free mem slot - USB kb +
mouse, 1xPCIex16(3.0), 2xPCEe x1, 1xPCI, HDMI/DP/VGA, 4+4 USB,
Serial port, WiFi+BT, TPM v2.0
Operating system Windows 10 Pro 64-bit EDU
CPU and chipset
Intel® Pentium® Gold processor G6405 , Intel® UHD Graphics 630 /
610
Chipset: Intel® B560 Chipset
Memory
4 GB DDR4 3200 MHz UDIMM
Up to 64 GB of Dual-channel DDR4 2933 MHz (X2680G only)
Hard disk drive
128 GB M.2 2280 PCI-e SSD
Optical media drive NO
Graphics
NVIDIA® GeForce® GT 720 with 2 GB of DDR3 (supporting: DVI, HDMI®)
Audio
Integrated high-definition, 5.1-channel surround sound
Communication
WLAN
802.11ax/ac/a/b/g/n, Wi-Fi 6 and Bluetooth® 5
Expansion slot(s)
PCIe x16 slot: 1
PCIe x1 slot: 2
PCI slot: 1 M.2 slot (for SSD): 1
M.2 slot (for WLAN): 1
Commercial features
TPM v2.0 (Trusted Platform Module)
WOL (Wake On Lan)
One-button recovery (OBR)
Kensington lock slot
Hard drive password protection (via BIOS)
Intrusion alert (via BIOS)
100% solid capacitors
PXE (Preboot eXecution Environment)
Commercial selected options
TPM v2.0 (Trusted Platform Module)
Parallel (printer) port
COM (Series) port
SD card reader module
Internal speaker
Dust filter
Dimensions
102 (W) x 305.08 (D) x 330 (H) mm (4.02 x 12.01 x 12.99 inches)
Power supply and battery
180 W PFC, auto-sensing, 80PLUS® Bronze, TFX
System compliance RoHS, DMI, GS, ENERGY STAR®, PC2001
Certification BSMI, CE, FCC, CB
