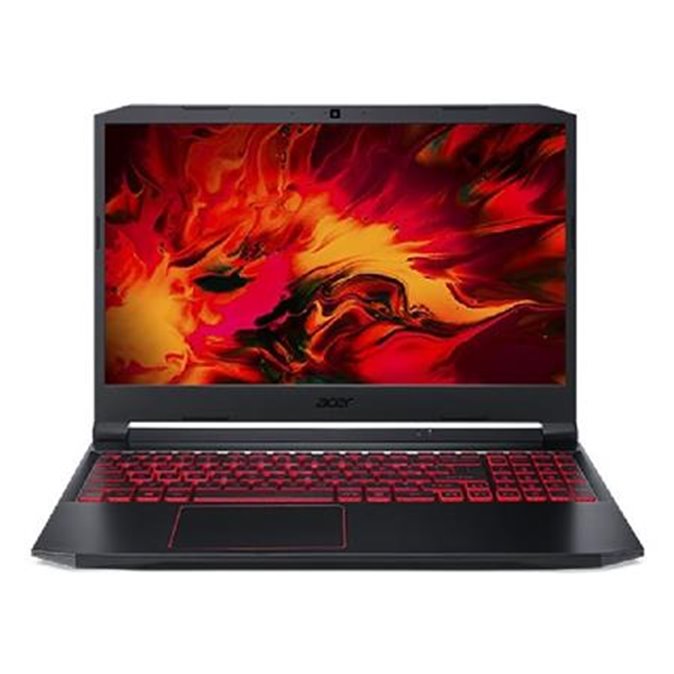

Nitro 5 (AN517-52-54D7) - Windows 11 Home - Intel® Core™ i5-10300H
- 8 GB DDR4 2933MHz Memory + 8 GB DDR4 2933MHz Memory - 1024GB PCIe
NVMe SSD + N (HDD upgrade kit) - 17.3" FHD IPS 144Hz Acer ComfyView
SlimBezel 72% NTSC 300nits - NVIDIA® GeForce RTX™ 3050Ti
4G-GDDR6(2C*256*16*4) 1485MHz MGP 75W - Wifi 6 Intel AX201 802.11ax
+ BT 5.0 - HD Camera with 2Mic. - HDMI 2.0 - USB Type-C™ 3.2 Gen 2
(up to 10 Gbps) - 1x USB 3.2 Gen2 - 2x USB 3.2 Gen1 - RJ-45 - Red
Backlight KB - Dual fans with Acer CoolBoost - NitroSense app -
57Wh Li-ion battery - 180W 5.5phy slim AC adapter - Obsidian Black
AN517-52-54D7
Part Number: NH.QDWEC.005
Processor
Processor Manufacturer Intel®
Processor Type Core™ i5
Processor Generation 10th Gen
Processor Model i5-10300H
Processor Core Quad-core (4 Core™)
Processor Speed 2.50 GHz
Maximum Turbo Speed 4.50 GHz
Cache 8 MB
64-bit Processing Yes
Chipset
Chipset Manufacturer Intel®
Chipset Model HM470
Memory
Standard Memory 16 GB
Maximum Memory Supported 32 GB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 2
Memory Card Reader No
Storage
Total Solid State Drive Capacity 1 TB
Solid State Drive Interface PCI Express
Solid State Drive Configuration 1 x 1TB
Optical Drive Type No
Display & Graphics
Screen Size 43.9 cm (17.3")
Display Screen Type LCD
Display Screen Technology ComfyView
Display Screen Technology In-plane Switching (IPS) Technology
Aspect Ratio 16:9
Standard Refresh Rate 144 Hz
Screen Mode Full HD
Screen Resolution 1920 x 1080
Backlight Technology LED
HDCP Supported Yes
Graphics Controller Manufacturer NVIDIA®
Graphics Controller Model GeForce® RTX™ 3050Ti
Graphics Memory Capacity Up to 4 GB
Graphics Memory Technology GDDR6
Graphics Memory Accessibility Dedicated
GPU Boost Clock Up to 1485 MHz
Maximum Graphics Power Up to 75 W
Network & Communication
Wireless LAN Yes
Wireless LAN Manufacturer Intel®
Wireless LAN Model Wireless Wi-Fi 6 AX201
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Ethernet Technology Gigabit Ethernet
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0
Built-in Devices
Front Camera/Webcam Yes
Front Camera/Webcam Video Resolution 1280 x 720
Microphone Yes
Number of Microphones 2
Finger Print Reader No
Speakers Yes
Interfaces/Ports
HDMI Yes
Number of HDMI Outputs 1
Total Number of USB Ports 4
Number of USB 3.2 Gen 1 Type-A Ports 2
Number of USB 3.2 Gen 2 Type-A Ports 1
Number of USB 3.2 Gen 2 Type-C Ports 1
USB Type-C Yes
USB Type-C Detail USB Type-C Port Supporting: USB 3.2 Gen 2 (up to
10 Gbps)
Network (RJ-45) Yes
Headphone/Microphone Combo Port Yes
Software
Operating System Platform Windows
Operating System Windows 11 Home
Operating System Architecture 64-bit
Input Devices
Keyboard Yes
Numeric Pad Yes
Keyboard Backlight Yes
Keyboard Localization Czech
Keyboard Localization Slovak
Pointing Device Type TouchPad
TouchPad Features Multi-touch Gesture
Battery Information
Number of Cells 4-cell
Battery Chemistry Lithium Ion (Li-Ion)
Battery Energy 57.50 Wh
Maximum Battery Run Time 8 Hour
Power Description
Maximum Power Supply Wattage 180 W
Physical Characteristics
Colour Obsidian Black
Height 24.90 mm
Width 403.5 mm
Depth 280 mm
Weight (Approximate) 2.70 kg
Miscellaneous
Package Contents
" Nitro 5 AN517-52-54D7 Gaming Notebook
" Lithium Ion Battery
" AC Adapter
Security Features
" Kensington lock slot
" BIOS Passwords:
o User
o Supervisor
