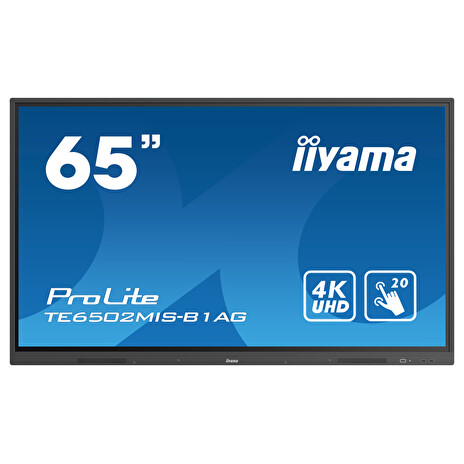

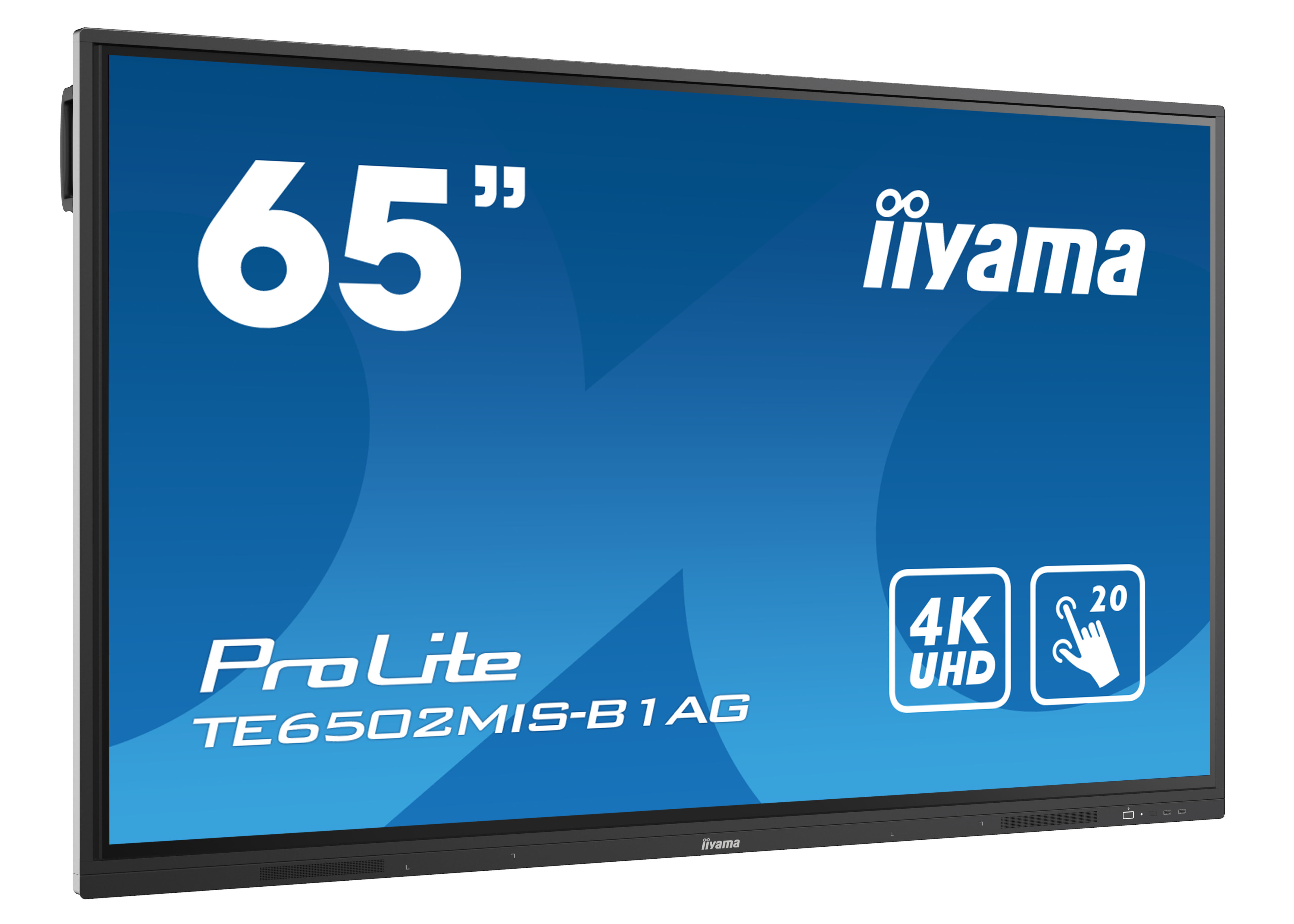

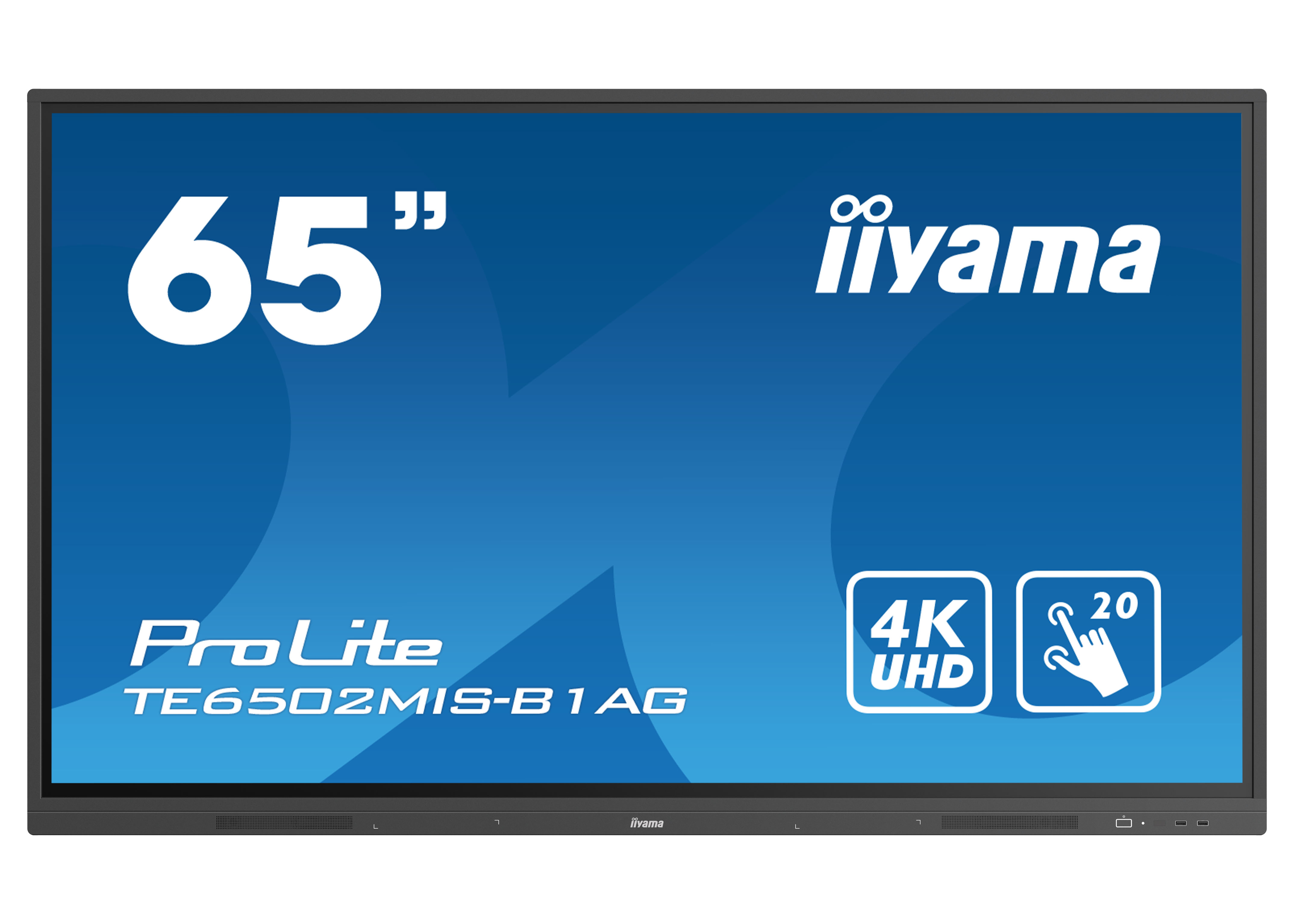

65’’ Interactive 4K UHD LCD Touchscreen with integrated
annotation softwareInspire infinite possibilities with the ProLite TE6502MIS-B1AG, a
perfect hybrid interactive solution for any room. This 65” 20-point
touchscreen with iiWare (Android 9.0 OS) features Note, web
browser, file manager, cloud drives, WPS office and ScreenSharePro.
The included touch pens allow users to annotate easily on files and
on-screen content, which can be saved directly to a USB device,
16GB internal memory or a selected cloud drive. Supporting playback
of presentations, high-resolution video and almost any other type
of content. This touchscreen has a standard OPS Slot to slide in an
OPS PC (available from iiyama) and comes with built in front facing
speakers. The high-quality commercial VA screen with a 4K UHD
resolution (3840x2160), 350cd/m2 and a contrast ratio of 5000:1
provides vibrant, detailed and high-quality images from anywhere in
the class or meeting room. The anti-glare coating drastically
reduces ambient reflection in high-brightness environments without
compromising the sharpness and clarity of the image. The screen is
equipped with an all-metal bezel and 4mm thick hardened glass to
ensure robust durability in high-use environments. Share, stream
and edit content from any device directly on screen and transform
your team meetings or lessons into an easy, fast and seamless
interactive session with the included WiFi module (
OWM002), ScreenSharePro and EShare app.
PARAMETRY DISPLEJEDesign:tenký rámeček
Úhlopříčka:65", 163.9 cm
Panel:VA, AG coated glass
Nativiní rozlišení:3840 x 2160 (8.3 Megapixel 4K UHD)
Poměr stran:16:9
Jas:400 cd/m2
Statický kontrast:5000:1
Dynamický kontrast:15000:1
Propustnost světla:88%
Doba odezvy:6.5ms
Pozorovací úhly:178°/178°
Rozsah barev:1.07 miliard 10bit
Horizontální synch.:30-80KHz
Rozteč bodů.:0.372 mm
Barva:matná černá
DOTYKTechnologie doteku:infrared
Body doteku:20
Metoda doteku:stylus, prst, rukavice
Rozhraní doteku:USB
KONEKTIVITAAnalogové vstupní porty:*1x VGA (max. 1920x1080 @60Hz)
Digitální vstupní porty:*2x HDMI 2.0 (max. 3840x2160 @60Hz)
Řídící vstup monitoru:*1x RS-232c *1x RJ-45
Audio In:*1x Mini jack
Audio Out:*1x Mini Jack
Ostatní porty:USB Hub (4x USB 2.0)
HDCPANO
FUNKCEIntegrovaný software:iiWare 8.0 (Android 9.0 OS) featuring Note, web browser, file
manager, cloud drives, WPS office, ScreenSharePro and EShare for
wireless connection with Windows/iOS/Android devices
Hardware:Quad core A54 CPU, Mali G31 MP2 GPU, 2GB RAM, 16GB internal memory
WiFi:ANO (WiFi Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi
Standard: IIEEE 802.11 a/b/g/n/ac, Bluetooth Support:
2.1/3.0/4.2/5.0)
Mód kiosku:ANO
Maximální provozní doba:neuvedeno
Média Playback:ANO
Tloušťka skla:4 mm
Tvrdost skla:7H
Materiál rámečků:hliník
OSD Key Lock:ANO
MECHANICKÉ INFORMACEOrientace:horizontální
VESA:600 x 400 mm
OBSAH BALENÍKabely:napájecí kabel, USB, HDMI
Příručky:průvodce rychlým spuštěním, bezpečnostní průvodce
Další:2x Touch Pen, dálkové ovládání (včetně baterií), Mounting bracket
for NUC, Mounting bracket for webcam
NAPÁJENÍNapájecí adaptér:interní
Zdroj:AC AC - 100V, 240/V, 50Hz/60Hz
Odběr energie:175W (0,5W Stand By/Off Mode)
UDRŽITELNOSTNormy:CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS,
Iot5)
Energetická třída:neuvedeno
Další:REACH SVHC above 0.1%: Lead
ROZMĚRY A HMOTNOSTRozměry (ŠxVxH):1489 x 897 x 87 mm
Hmotnost:38,5 kg
EAN:4948570118830
Stránky výrobce:https://iiyama.com/gl_en/products/prolite-te6502mis-b1ag/
