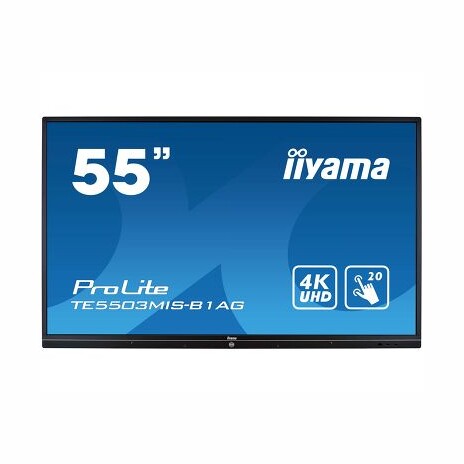

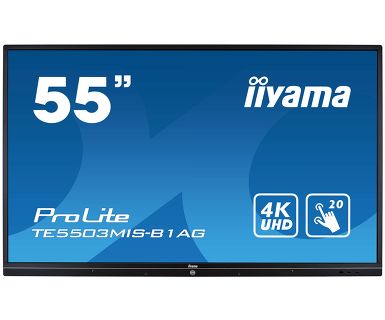

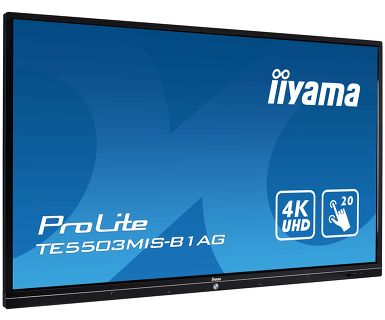

55’’ Interactive 4K UHD LCD Touchscreen with integrated
annotation software
Share Your Vision with the ProLite TE5503MIS-B1AG; a perfect
solution for educational and corporate use. Its 55’’ infrared
20-point touchscreen with iiWare 8.0 (Android OS) featuring Note,
web browser, file manager, cloud drives, WPS office and
ScreenSharePro. It comes with dual touch pens, allowing users to
annotate easily in 4K on files and on-screen content which can be
saved directly on a USB device, 16gig internal memory or on a
connected cloud drive. The display supports playback of
presentations, high-resolution video and almost any other type of
content..
The high-quality commercial IPS LCD screen with a 4K UHD resolution
(3840 x 2160 - 8.3 megapixel), 350cd/m2 and a contrast ratio of
1200:1 for vibrant, detailed and high-quality images from anywhere
in the class or meeting room. The anti-glare coating drastically
reduces ambient reflection in high-brightness environments without
compromising the sharpness and clarity of the image. The screen is
equipped with an all-metal bezel, 3 mm thick hardened glass to
ensure long durability in high-use environments such as classrooms
or meeting rooms.
Share, stream and edit content from any device directly on screen
and transform your team meetings or lessons into an easy, fast and

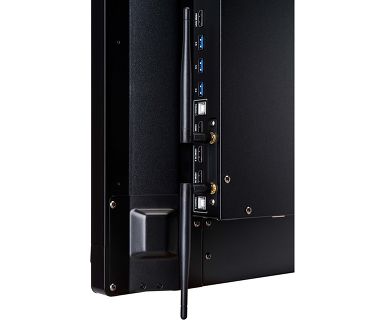

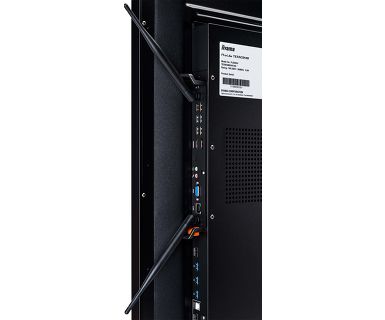

seamless interactive session with the included WiFi module (OWM001)
and the ScreenSharePro app.
PARAMETRY DISPLEJE
Design:tenký rámeček
Úhlopříčka:55", 138.8 cm
Panel:IPS LED, AG coated glass
Nativiní rozlišení:3840 x 2160 (8.3 Megapixel 4K UHD)
Poměr stran:16:9
Jas:350 cd/m2
Statický kontrast:1200:1
Dynamický kontrast:4000:1
Propustnost světla:88%
Doba odezvy:8ms
Pozorovací úhly:178°/178°
Rozsah barev:1.07 miliard 10bit
Horizontální synch.:30-80KHz
Vertikální synch.:55-75Hz
Rozteč bodů.:0.315 mm
Barva:matná černá
DOTYK
Technologie doteku:infrared
Body doteku:20
Metoda doteku:stylus, prst, rukavice
Rozhraní doteku:USB

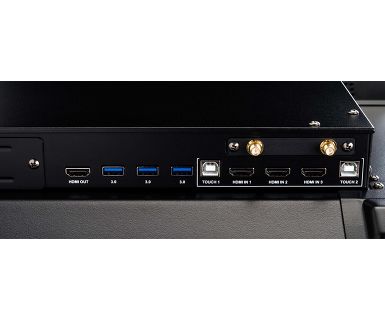

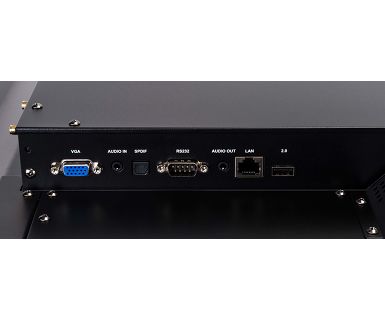

KONEKTIVITA
Vstupy analogového signálu:
*1x VGA (max. 1920x1080 @60Hz)
Vstupy digitálního signálu:
*3x HDMI v2.0 (max. 3840x2160 @60Hz)
*1x DisplayPort (max. 3840x2160 @30Hz)
Audio vstupy:</>B
*1x Mini Jack
Vstupy ovládání displeje:
*1x RS-232c
*1x RJ-45 (internet for Android only)
Výstupy digitálního signálu:
*1x HDMI v2.0 (max. 3840x2160 @60Hz)
Audio výstupy:
*1x S/PDIF (optical)
*1x Mini Jack

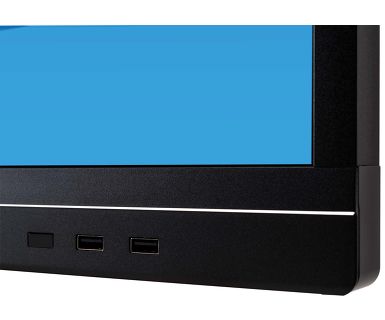

Ostatní porty:
*3x USB 3.0
*2x USB 2.0
Reproduktory: 2x 10W
HDCP: ANO
FUNKCE
Integrovaný software: iiWare 8.0 (Android OS) featuring
Note, web browser, file manager, cloud drives, WPS office and
ScreenSharePro for wireless connection with Windows/iOS/Android
devices
Hardware: Dual core A73+A53 CPU, Quad core Mali G51 GPU, 3
GB RAM, 16 GB internal memory, WiFi module (OWM001)
WiFi: ANO
Mód kiosku: ANO
Maximální provozní doba: 18/7
Média Playback: ANO
Tloušťka skla: 4 mm
Tvrdost skla: 7H
OSD Key Lock: ANO

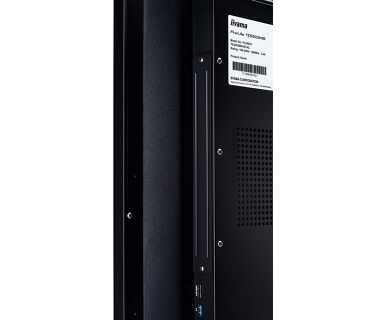

Zvláštní výbava: slot for optional slot PC, two touch
pens
MECHANICKÉ INFORMACE
Orientace: horizontální

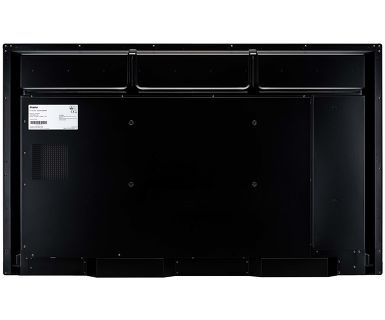

VESA: 400 x 200 mm
OBSAH BALENÍ
Kabely: napájecí kabel, USB, HDMI
Příručky: průvodce rychlým spuštěním, bezpečnostní
průvodce
Další: 2x Touch Pen, dálkové ovládání (včetně baterií)
NAPÁJENÍ
Napájecí adaptér: interní
Zdroj: AC AC - 100V, 240/V, 50Hz/60Hz
Odběr energie:160W (0,5W Stand By/Off Mode)
UDRŽITELNOST
Normy: CE, TÜV-Bauart, EAC,
Energetická třída: C
Další: -
ROZMĚRY A HMOTNOST
Materiál: kov
Rozměry (ŠxVxH): 1269 x 773 x 86 mm
Hmotnost: 26,8 kg
EAN: 4948570117390
